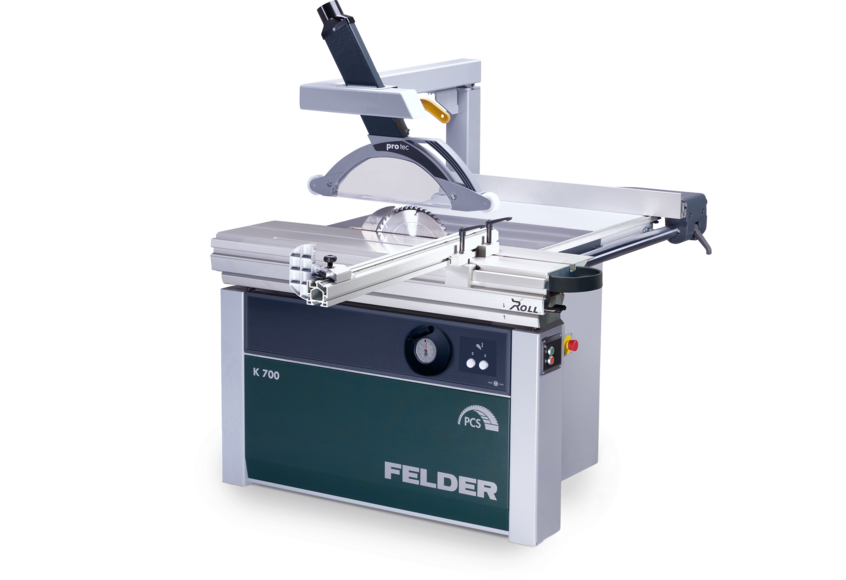

The new FELDER K 700 PCS industrial cabinet saw with sliding table is quite simply in a class of its own: Solid construction and intuitive solutions for woodworkers with high demands.
With intelligent new features and technologically unique solutions, the Felder K 700 meets the high requirements of the demanding woodworker and business. The new swing away overhead saw guard offers maximum flexibility when processing workpieces with large dimensions. The innovative saw aggregate with tilting saw blade and precision double guiding, the K 700 offers exact angle and height adjustment guaranteeing a new dimension of efficiency. A ten year guarantee on the „X-Roll“ sliding table, high quality manufacturing and strict Felder production standards all combine to make this sliding table saw unique, guaranteeing perfect results and reliability for many years to come. The optional „Power-Drive“ package with electronical saw blade height and angle adjustment accurate to a tenth of a millimetre bring precision and operating comfort to your workshop that are simply another class.
The enhanced circular saw unit with the patented tilt segment "Easy-Glide" enables the combination of a main saw blade with a Ø from 250 mm to Ø 315 mm and a Ø 120 mm scoring unit.
Equipped with the PCS® Safety System and operating on 1 × 230 V, the K 700 PCS combines advanced safety, precision, and flexibility in one powerful machine.
*PCS® does not replace any of the legal protective devices required. The machine must be operated with the splitter and the saw guard properly installed according to regulations.
The enhanced circular saw unit with the patented tilt segment "Easy-Glide" enables the combination of a main saw blade with a Ø from 250 mm to Ø 315 mm and a Ø 120 mm scoring unit.
The patented tilt segment “Easy-Glide” fulfills the highest requirements in businesses and industries. A precise, guided, doublesided support, guarantees maximum load bearing and tolerance free tilting and is absolutely maintenance free. A special, highly durable synthetic material situated in the guide of the tilting segment ensures extremely smooth movement and long-lasting precision. The tilting guide system, a synthetic material tried and tested in aerospace and lock construction, works without the requirement of lubrication and is totally resistant to dust. With a 6 year factory guarantee this Felder component offers reliabilty for many years to come.
The electronically balanced saw arbor with dual bearing seat system is powered via a Poly-V belt. Combined this results in an almost 100 % transmission of power to the saw blade.
The saw arbor diameter on our machinery is a standard European size of 30 mm (1,18"). We offer this size of arbor for increased stability when performing a bigger cut and also more user safery when especially using dado tooling. The standard US size arbor is 16 mm (5/8"). This is almost half the diameter of our arbor and is intended for lighter machinery with small tooling. The European 30 mm diameter tooling is available for various suppliers throughout the US and existing tooling can also be resized to fit our machinery. Take a step "UP" in your machine and also in your tooling.
Please visit our on-line shop to view the range of tools we can offer.
Link: www.felder-tooling.us
The Felder 700 Series saw assembly is fully compatible with dado tooling. Thanks to removable flanges and table insert, the Felder designed, fully adjustable dado cutters can be used.
Highest operating safety and maximum flexibility when processing large dimensioned workpieces: the new Felder overhead saw guard can be swung away easily and is always there where it is required.
The rip capacity comes standard with 31” (800 mm) or optional 49” (1250 mm). The rip fence almost hovers over the table. The single handed quick clamping and fine adjusment systems ensure quick and accurate setting of the rip fence. The easy to read rip scale is perfectly intergrated into the saw table. The aluminum rip fence plate can be adjusted foward and back to optimise the feed of work pieces. When working with narrow and thin cuts of wood or with the saw blade tilted, it can be inverted and used in the lying position.
The continuously developed linear guiding system from Felder has been astounding woodworkers since 1990. The high quality format sliding table guiding technology “X-Roll” comes with a 10 year Felder warranty and offers amazing operating smoothness and is completely maintenance free. The “x” design of the position of the roller bearings ensures that they move smoothly along hardened guides.
The crosscut fence is 43” (1100 mm) for crosscuts between +45° and –45°. The fence can be attached to the sliding table with out the use of tools. The positive stop provides you with the exact 90° position. The beveled miter scale with hairline readout is visible from the operating area and thus allows exact reading of the required crosscut value. The large crosscut fence stops are constructed so that a small tongue on the stop fits perfectly into a machined groove on the fence. This keeps the stop firmly in place for both straight and mitered cuts.
