The precision sliding table saw for the discerning woodworker

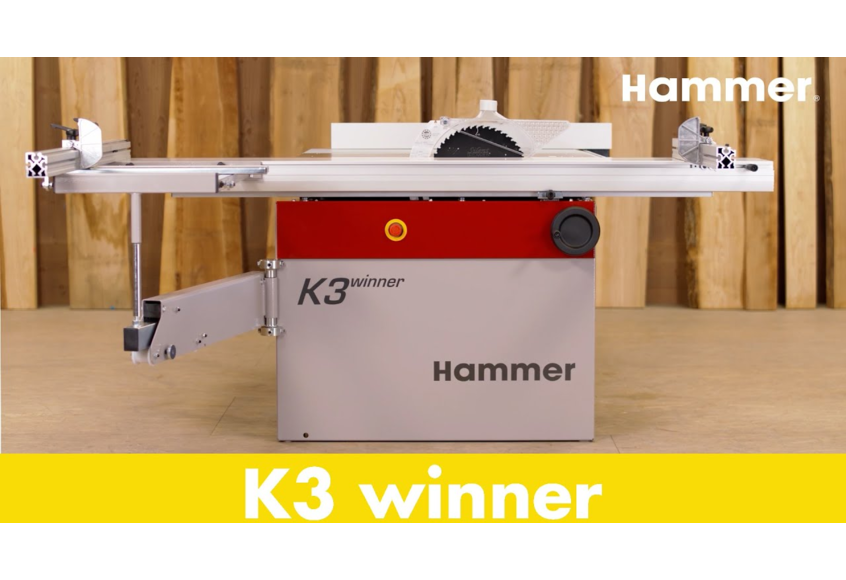

The K3 winner precision circular saw is required in craftwork shops and industries for various jobs. Exact rip cuts as well as precise cross and miter cuts, along with the smooth operation of the sliding table. These are the qualities that discerning woodworkers like you expect in a precision sliding table saw.
The aluminium sliding table, the heart of every panel saw
The aluminium sliding table gives the precision from the first cut. Guaranteed Hammer stability and precision: the strong ribbed, milled and anodised aluminium hollow-chamber profile of the sliding table in combination with the high quality guiding system ensures maximum accuracy and precision!
The Hammer saw aggregate impresses with smoothness, precision and extreme user friendliness. The large cutting height of 103 mm leaves nothing to be desired. Saw blades with up to 315 mm diameter can be lowered completely below the level of the saw table. The saw blade is simple to access and can be changed with ease.
Every hammer panel saw can be equipped with a prepartion for the use of specialised dado tooling. The dado tool can be fitted to the saw arbour and makes it possible to make various width grooves, tenons and slots of between 8 and 19.5 mm in width.
The Hammer saw aggregate impresses with smoothness, precision and extreme user friendliness. The large cutting height of 103 mm leaves nothing to be desired. Saw blades with up to 315 mm diameter can be lowered completely below the level of the saw table. The saw blade is simple to access and can be changed with ease.
The blade can be tilted to any position between 90° and 45° and guarantees precise mitre cuts. End stops at the 90° and 45° position ensure the exact positioning of the settings, a large dimensioned scale makes the exact setting and reading of the value easy.
The scoring unit ensures chip free cuts in laminated workpieces. The cutting width of the two part scoring blade can be adjusted accurately to the tooth width of the main saw blade using a ring set. The drive of the scoring blade is done mechanically, with it rotating in the opposite direction to the main saw blade.
Every hammer panel saw can be equipped with a prepartion for the use of specialised dado tooling. The dado tool can be fitted to the saw arbour and makes it possible to make various width grooves, tenons and slots of between 8 and 19.5 mm in width.
The industrial rip fence runs on a round bar. This insures a smooth operation, ease of use and maximum rigidity. With the micro-adjustment you can easily adjust the fence to the required position with very high precision.
The aluminium sliding table gives the precision from the first cut. Guaranteed Hammer stability and precision: the strong ribbed, milled and anodised aluminium hollow-chamber profile of the sliding table in combination with the high quality guiding system ensures maximum accuracy and precision!
The outrigger table provides additional surface support and precision when processing large dimensioned and heavy workpieces. In combination with a 900 or 1,300 aluminium crosscut fence and the crosscut extension your Hammer with outrigger table becomes a complete, large panel saw.
Adjustable to any position between +45° and –45°, the crosscut fence ensures precise angled and mitre cuts. A scale integrated into the aluminium sliding table makes it easy to set precisely. The end stop for the 90° position guarantees absolute precision with repeat settings. The scale on the 900 mm long aluminium crosscut fence is angled towards the operator and makes it easy to comfortably read the exact setting. In combination with the crosscut stop with integrated magnifying glass, highly precise settings and as such absolutely exact results are guaranteed.
Processing long and heavy workpieces without assistance - no problem with a Hammer! The Hammer table extension system has proven itself thousandfold, the world over. In just a few steps and without tools the table extensions can be mounted to every Hammer machine. The surface can be extended by 400 or 800 mm on each side of the working table. Which means that it is possible to increase your table length by up to 1600 mm!
Hammer woodworking machines are an absolute spatial wonder. The efficient machine design of a Hammer means that space can be found in even the smallest of workshops. As an option a rolling carriage can be fitted to every Hammer, offering mobility and freeing up additional space.
