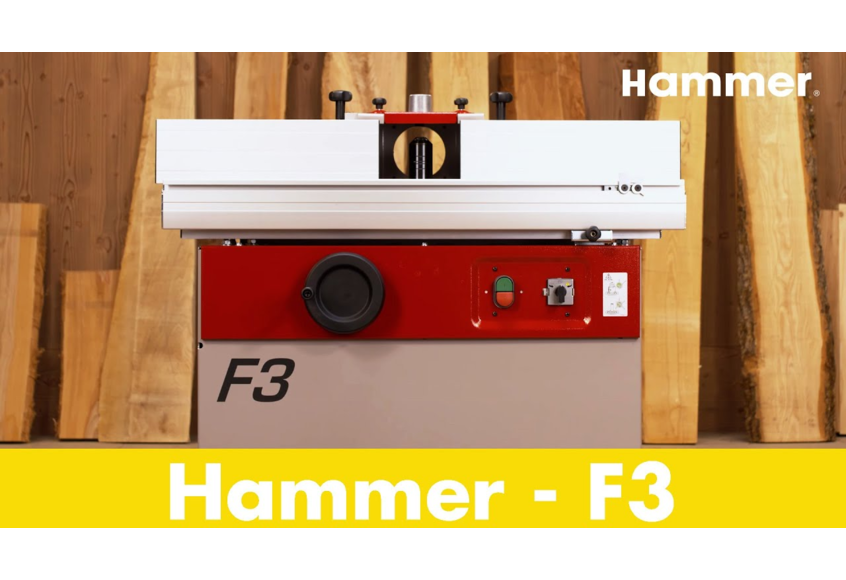

Shaper Hammer F3
$6,579.00
excl. sales tax , without shipping costs
$6,579.00
incl. % tax , without shipping costs
Pick-up at the branch free of charge
Description
The tilting spindle moulder with incredible performance and ease of use!
… the 4 speed moulder features accurate and time-saving adjustment with the professional spindle moulder fence. The tilting spindle moulder with integrated slot and tenon table and first-rate engineering technology offers you a machine concept to satisfy the highest demands at the lowest possible price!
Highlights & Details
Hammer - Decision making reliability for many years to comeHAMMER - Stability, functionality and reliability from Austria - Hammer woodworking machines are a top-quality product from the Felder-Group Since 1997 Hammer have been producing high quality yet affordable woodworking machines for smaller workshops and businesses. The models have been specifically designed for this customer group and are now available in the basic, winner and perform configuration, offering price optimised solutions for every requirement. Decades of experience building machines, Austrian craftsmanship, strict quality standards and tried and tested Felder system solutions, guarantee excellent woodworking machines, the best operating results and customer satisfaction for years to come. From the passionate woodworker to the business user with high demands, with machines from Hammer you are guaranteed reliability and precise woodworking.
Minimal space requirement - mobile in every workshopHammer woodworking machines are an absolute spatial wonder. The efficient machine design of a Hammer means that space can be found in even the smallest of workshops. As an option a rolling carriage can be fitted to every Hammer, offering mobility and freeing up additional space.
Strong motors - Optimal power transmissionThe power transmission of the motor power to the saw arbour or moulder spindle is achieved using large dimensioned Poly-V belts and counter surface. The surface area which is increased through the V shape of the drive belt on the pulley increases the grip and ensures an almost perfect transmission of power from the motor to the saw arbour and moulder spindle.
Spindle fence: simple handling, maximum safety and precisionThe Hammer spindle fence is suitable for tools with a diameter up to 220 mm. Both of the anodised aluminium fences can be easily set to the spindle moulder tool diameter being used. The adjustment for the depth of cut when moulding can be made on the outfeed fence plate with a range of –5 mm und +25 mm. The extraction connection diameter for the chip extraction on the fence is 120 mm.
As an option, safety bars can be fitted into the aluminium fence for a continuous surface support and offer even more safety when moulding.
MULTI fine adjustment system
Professional equipment: “220” spindle fence for max. tooling diameter 9” (220 mm), MULTI fine adjustment for shaper fence “220”
Safety bar guidesThe safety bar guides, great for “end-grain” work (optional).
Stability and operating smoothness - the Hammer spindle moulder unitHigh precision with standard moulding work or use of heavy tools - The Hammer spindle moulder unit guarantees extreme smoothness and precision. The spindle diameter is 30 mm. The ergonomically laid out operating elements and the smooth tool change convinces with every application, day after day. Four well spaced, selectable speeds, 3,000/6,000/8,000 and 10,000 rpm, cover the optimum speeds of various different spindle tool diameters with ease. An important detail is standard with Hammer: the forward and reverse run of the spindle for your safety when moulding.
Shaper spindleThe standard: Spindle Shaper-dia. 1¼” (30 mm) for standard shaper tooling.
The high performance main spindle guarantees excellent results at every angle regardless of the material.
MF Spindle shaft quick change systemWithout losing any settings, just a few turns of your hand allows you to swap spindles of varying diameters.
The Hammer rearward tilting spindle is the correct way for easy and safe operation:Safety, since there is no pinch point
No limitations on work piece height
Problem free power feeder operation
Impeccable workpiece finish
Optimal chip removal
The Hammer spindle table, made from solid cast ironTotally vibration-free and therefore reliably precise when sawing and moulding - the saw/spindle table made from solid cast iron has strong ribbing and is completely torsion-resistant. The table opening of 180 mm diameter makes it possible to use large diameter tools below the table surface level. Predrilled tapped mounting holes make it possible to quickly equip the machine with a power feeder.
As an option: Adapt the table size to the workpiece dimensionProcessing long and heavy workpieces without assistance - no problem with a Hammer! The Hammer table extension system has proven itself thousandfold, the world over. In just a few steps and without tools the table extensions can be mounted to every Hammer machine. The surface can be extended by 400 or 800 mm on each side of the working table. Which means that it is possible to increase your table length by up to 1600 mm!
Power feederThe use of a power feeder ensures that standard work when moulding can be carried out cleanly and precisely.
Technical information
Shaper Hammer F3
$6,579.00
excl. sales tax , without shipping costs
$6,579.00
incl. % tax , without shipping costs
Pick-up at the branch free of charge
