Description
Classic surface finishing as the focus!

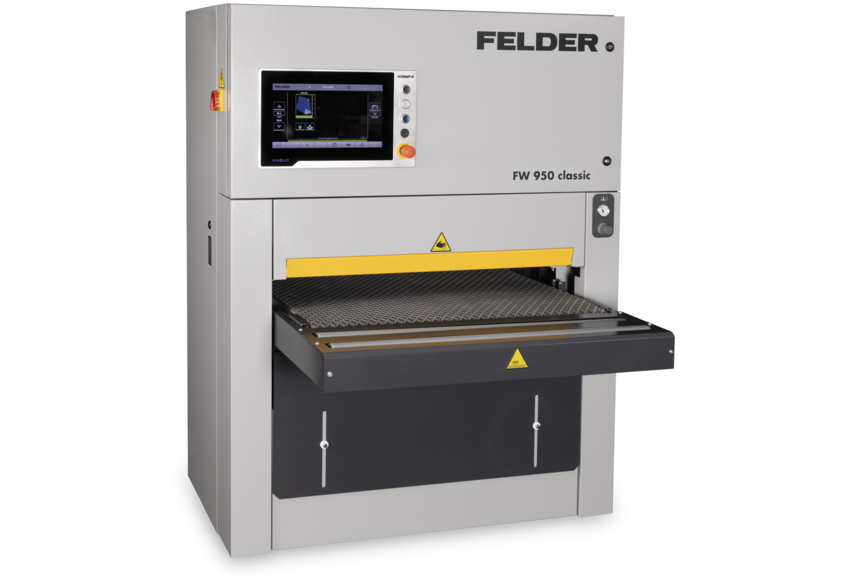

The furniture industry with modernised production techniques has set a standard that is almost unachievable for small joinery and carpentery shops. In order for smaller shops to remain competitive they must ensure that every workpiece is processed perfectly at every step of production. The FELDER FW 950 classic wide belt sander makes it affordable to take that next step into professional woodworking and it is this high quality standard configuration that particularly impresses.
Highlights:
- Powerful combination aggregate with electro-pneumatic sanding shoe
- Productive control panel control, precise grain equalisation
- FELDER operating comfort: electrical height adjustment with digital display
- Excellent results on veneered workpieces
- Automatic inverter control of the feed speed
- Conveyor belt control, hand safety stop and stop to ensure that oversized pieces cannot be fed through, ensuring optimum operating safety
- Vibration-free power transmission from the 10 hp sanding belt motor
Highlights & Details
Combination sanding unit
The combination unit with a roller diameter of 125 mm is used for the calibration of solid wood. The electro-pneumatic sanding pad is lowered on to the workpiece at the exact correct height for the sanding process. This prevents veneered surfaces from being sanded through, at the front and rear.
Quickly, easily and conveniently!Saves time when changing belts
Perfect sanding resultsPowerful motors ensure perfect sanding results. The constant power transfer is a significant factor for the high quality sanding finish.
Belt guidanceThe belt guidance system assesses the workpiece using a lightbeam and activates the electro-pneumatic belt guidance system, which adjusts the belt fowards and backwards.
The belt control system regulates the running of the belt with electronically guided photo cells.Should the belt be at risk of coming loose, the belt control system cuts the belt motor immediately.
15" smartouch control for maximum operating comfort
The clearly structured and intuitive display provides max. productivity. The infeed thickness is clearly shown on the 15" smartouch display and can be adjusted with an accuracy of a tenth of a millimetre.
The digital grit adjustment, for which the machine does not need to be opened, adds another highlight. Via the display the machine is set to the correct sanding belt grit size or can be switched to using a sanding shoe.
Belt Consumption Optimiser (BCO) to achieve maximum belt utilisation (optional)
BCO is a new feature for monitoring the wear of the sanding belt. The operator receives an indication as to which part of the sanding belt is less worn and can therefore feed the workpieces at this point - thus preventing irregular wear of the sanding belt.
Green-Line Package (GLP) (optional)
The GLP is another new feature which can be added as an option to your wide belt sander. GLP assists in reducing the power consumption and provides the following benefits:
+ speed reduction of the sanding belt between work processes
+ automatic switch-off of the infeed belt
+ automatic signal for valve control of the extraction system
Thickness Detection Professional (TDP) - automatic workpiece thickness measurement (optional)
Maximum process reliability guaranteed when setting the working height: As the workpiece is fed into the machine, the workpiece thickness is automatically adjusted by means of fibre optic and laser sensors. The measuring device adjusts the passage height exactly to the material thickness, deducting the desired chip removal.
Compact design
Professional surface processing and small space requirements no longer pose a contradiction! Again, Felder has created a machine series that fits into any size workshop.
Feed and delivery roller table (Option)Upon request we can equip your Felder wide belt sander with an additional roller support both on the infeed and outfeed side of the machine.
Infeed belt
The continuously vulcanised feed belt with honeycomb structure guarantees maximum power transfer and durability. The feed speed can be continuously adjusted from 2.5 to 10 m/min. If necessary, the speed can also be adjusted during the sanding process. This ensures that the feed rate is always optimised to adapt to the material and the sanding belt grit.
