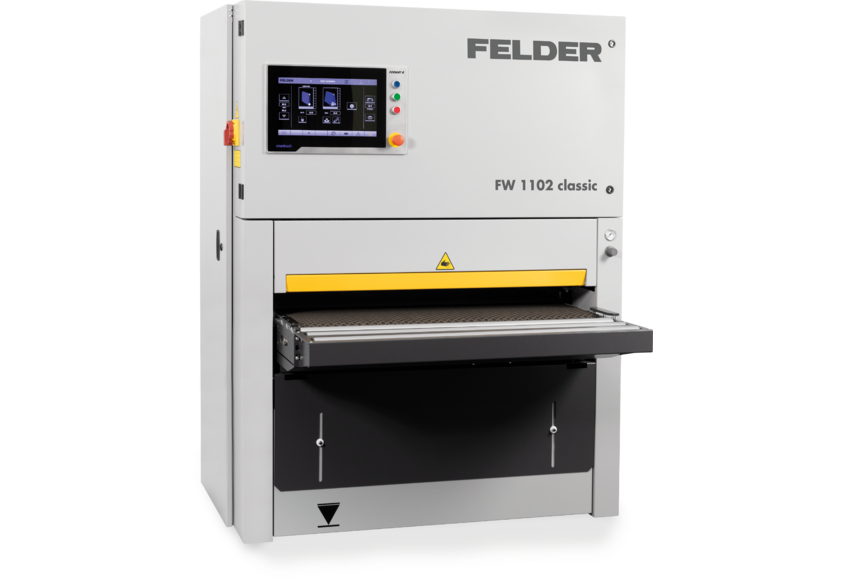

Wide Belt Sander Felder FW 1102 classic

Get free quote

Questions about this article?

Description

Classic surface finishing as the focus!

In order to still remain competitive in the current furniture industry with its highly modernized manufacturing techniques, one must ensure each workpiece is processed perfectly at all stages of production. The FELDER wide belt sanders FW 950 and FW 1102 classic, impress the professional woodworking field with high-quality system solutions as a standard. Precision sanding that saves you time and therefore, money.

Highlights & Details

15" smartouch control for maximum operating comfort

The clearly structured and intuitive display provides max. productivity. The infeed thickness is clearly shown on the 15" smartouch display and can be adjusted with an accuracy of a tenth of a millimetre.

The digital grit adjustment, for which the machine does not need to be opened, adds another highlight. Via the display the machine is set to the correct sanding belt grit size or can be switched to using a sanding shoe.

Thickness Detection Professional (TDP) - automatic workpiece thickness measurement (optional)

Maximum process reliability guaranteed when setting the working height: As the workpiece is fed into the machine, the workpiece thickness is automatically adjusted by means of fibre optic and laser sensors. The measuring device adjusts the passage height exactly to the material thickness, deducting the desired chip removal.

Feed and delivery roller table (Option)Upon request we can equip your Felder wide belt sander with an additional roller support both on the infeed and outfeed side of the machine.

Infeed belt

The continuously vulcanised feed belt with honeycomb structure guarantees maximum power transfer and durability. The feed speed can be continuously adjusted from 2.5 to 10 m/min. If necessary, the speed can also be adjusted during the sanding process. This ensures that the feed rate is always optimised to adapt to the material and the sanding belt grit.

2 processing unitsPre and fine sanding in one working process

Belt Consumption Optimiser (BCO) to achieve maximum belt utilisation (optional)

BCO is a new feature for monitoring the wear of the sanding belt. The operator receives an indication as to which part of the sanding belt is less worn and can therefore feed the workpieces at this point - thus preventing irregular wear of the sanding belt.

Green-Line Package (GLP) (optional)

The GLP is another new feature which can be added as an option to your wide belt sander. GLP assists in reducing the power consumption and provides the following benefits:

+ speed reduction of the sanding belt between work processes
+ automatic switch-off of the infeed belt
+ automatic signal for valve control of the extraction system

Contact roller aggregate

The contact roller aggregate calibrates workpieces, and thanks to the reduced contact surface greater chip removal of up to 0.5 mm is possible. The grooved and rubberised contact roller boasts a hardness of 85 Shore and therefore has several advantages over steel rollers.

Sanding padSanding pad for fine work

Brushing equipmentAs an option, on the delivery side of the machine, it is possible to set up a brushing facility. Different brushes can be inserted and their task is to clean, polish or structure the workpiece surface.
