Oscillating Edge Sander Hammer HS 950
% Sale
Sanders

Oscillating Edge Sander Hammer HS 950

1x 230 V, 60 HzArt. No. 500-14-102

Maximum flexibility when sanding edges at the best price Continue

Pick-up at the branch free of charge
instead of $2,390.00
$1,995.00
Save up to $395.00

excl. sales tax , without shipping costs

instead of $2,390.00
$1,995.00
Save up to $395.00

incl. % tax , without shipping costs

Questions about this article? add to wish list remove from the wish list

Description

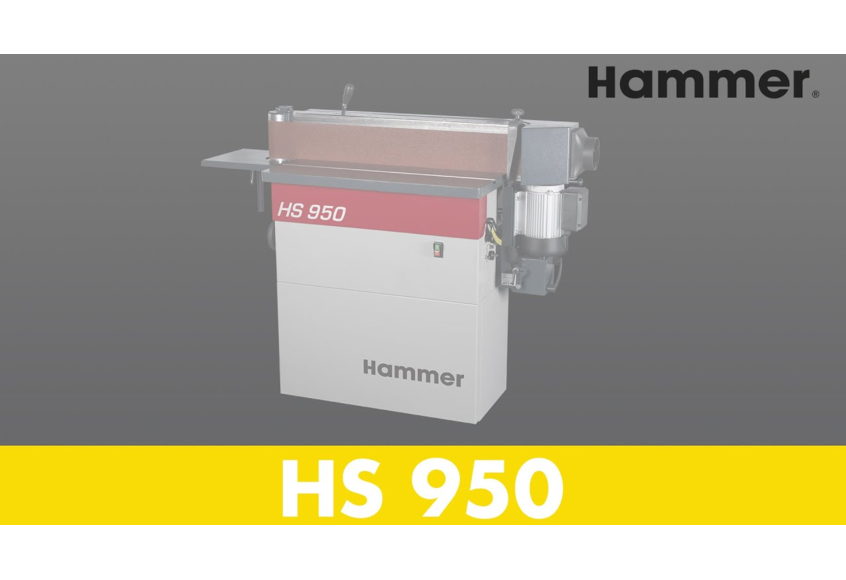

The Hammer HS 950 is the perfect entry-level machine for ambitious edge sanding work. The connectable sanding belt oscillation makes perfect use of the entire sanding belt surface. Together with the height-adjustable cast iron sanding table, the HS 950 achieves a maximum sanding belt service life. Guaranteed flexibility: The sanding unit can be continuously tilted up to 90° and the open design enables easy sanding of lengthy workpieces.

  • The sanding belt oscillation can be switched on for maximum use of the entire sanding belt surface.
  • Open design - ideal for sanding lengthy workpieces
  • Continuously adjustable sanding table tilt 0°-90°
  • Table height adjustment with the hand wheel
  • Additional table for cylindrical sanding

Scope of delivery:

  • Hammer Oscillating Edge Sander HS 950
  • Work table and additional table for cylindrical sanding
  • 1 x cloth sanding belt 2515 mm x 150 mm, grit: 100
  • User manual



Details

Standard features include a workpiece stop. In addition, the mitre fence (part no. 423-043) can also be mounted into the T-slot of the worktable.


On the left side of the machine there is a supplementary table for sanding radii (> 60 mm). The table can also be adjusted in height.


The solid cast iron working table can be conveniently adjusted manually by 150 mm in height. Thus, the sanding belt can be used over the entire height. Together with the oscillation, maximum service life of the sanding belt can be achieved. The table has a T-slot over the entire length of the table.


For oversized workpieces, the sanding surface can be easily increased. The open design allows easy access to the machine.


The sanding unit can be swivelled from 90 degree to table level to 0 degree to table level. There are preset end stops at the stop positions. The set angle can be read on the side swing scale and a grip facilitates the operation.


With the oscillation to be switched on and off, an individual sanding pattern can be generated. Together with the height-adjustable sanding table clean sanding results are ensured and the service life of the sanding paper is increased enormously.


Technical information

Extraction Connection Diameter [mm] 120
Frequency [Hz] 60
Grinding Roller Diameter [mm] 110
Height Adjustment [mm] 0-150
Inclination Angle [°] 90-45
Motor Power [kW] 2.2
Power (HP) 3
Sanding Belt Dimensions [mm] 2515 x 150
Sanding Belt Speed [m/s] 20
Sanding Support Length [mm] 950
Voltage [V] 1x 230
Weight with average equipment [kg] 240/310
