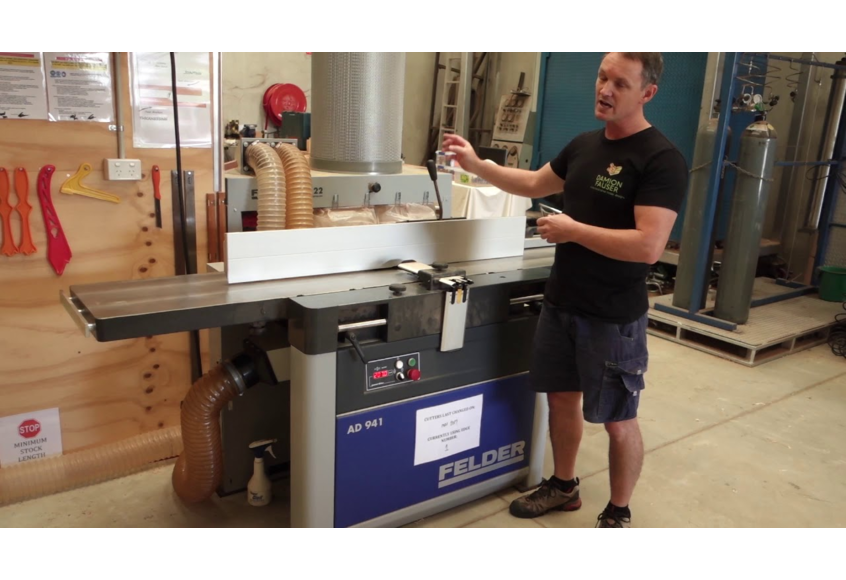

The AD 941 jointer-planer with 410 mm planing width
With technologically advanced detailed solutions, innovative operating convenience and clear machine design, the A 941 planer and AD 941 planer thicknesser inspire and amaze woodworkers all over the world. Perfectly planed surfaces, maximum reliability and user-friendliness that is in a class of its own and top operating safety – the planers from Austria meet all the requirements of perfect woodworking.
Highlights:
Spring loaded, synchronised opening of the dual planer/thicknesser
Minimum space requirement due to the optimised planing fence
The new Felder planer guard: highest safety with maximum user comfort
Easy to read scale, optimally integrated into the machine chassis
On request: “Power-Drive” thicknesser control with an accuracy to a tenth of a millimetre at the touch of a button
Ready for maximum load bearing: 4 column table support
The Felder system cutterblock, a warranty of perfect planing results for decades
Exclusive for planer/thicknessers from the Felder Group. The Silent-Power® spiral cutterblock reduces noise emissions by more than half when planing. The continuous pulling cut ensures tear-free results when planing all types of wood. With this revolutionary new development from Format4 you are obtaining all of the advantages of a spiral cutterblock at considerably lower operating, investment and adjustment costs. The advantages of the Silent-Power® cutterblock at a glance ...
Extremely quiet, noise is reduced by half
Usable blade life twenty times longer than standard blades
Four highly precise cutting edges on each knife
Optimised chip extraction and reduced chip volume
Tear-free jointing results
Reduced power consumption when compared to similar systems
The solid cast iron cutter-block housing is built for heavy duty work.
The serrated steel infeed roller and the micro-serrated steel outfeed roller guarantee a perfect transport of the workpiece through the machine. Both steel rollers are large dimensioned and non-wearing.
The combination of cutterblock, transport rollers and wood type is decisive for perfect planing resuts. The new Felder AD 941 can be individually configured and specified to meet your exact requirements.
4 trapezoidal spindles guarantee exact adjustment precision and ensure maximum planing bed load. Longitudinal guides integrated into the side of the machine chassis absorb the pressure that is put on the outfeed side and ensure that the planing table is guided with an accuracy of a tenth of a millimeter.
Felder’s jointer fence: A masterpiece of engineering providing stability, precision, and space saving! The jointer fence tilts from 90 to to 45 degrees. It can be positioned at any angle in between. There is an end stop at both the 90° and 45° positions.
When processing thin or narrow workpieces the new tiltable auxiliary fence attached to the jointer fence, guarantees a safe and comfortable planing operation.
Maximum ease of use and operational safety – The space saving jointer guard integrated into the machine chassis stabilizes the workpiece when jointing and beveling.
The EURO comfort planing fence can be folded in two places which offers maximum safety and the highest level of operating comfort for all planing work.
The patented Felder jointer table adjustment system, uses prism guidance for the highest level of adjustment precision. With the new ergonomically shaped depth of cut adjustment handle, you can adjust the depth of cut quickly and precisely. The depth of cut can be set to any depth up to ¼" (5 mm). Using the integrated magnifying glass you can view the set depth and achieve exactly the desired results.
The aerodynamically optimized construction of the dust extraction hood with its ample chip space guarantees an ideal chip extraction and clean working surface.
The fully electrical “Power-Drive” planer table control offers the most precise adjustment and repeat accuracy. With a twist of the knob, you can quickly adjust the planing height, then fine-adjust using the button. An integrated LED-display displays the actual value.
The Felder system cutterblock has guaranteed perfect planing results for decades.
Resin free locking screws and the self-setting knives make it possible to change the blade in less than 2 minutes. Time consuming adjustments and purchasing of expensive setting gauges are a thing of the past.
Simple blade settings, carried out incredibly quick - accurate to a tenth of a millimetre, standard with FELDER!
Resin free locking screws and the self-setting knives make it possible to change the blade in less than 2 minutes. Time consuming adjustments and purchasing of expensive setting gauges are a thing of the past.
The advantages at a glance ...
Quick and effortless knife change
Self-setting blades for high precision when changing the blades
No resin buildup on the clamping screws
Quiet operation thanks to enclosed design
Excellent durability of knife edges
Technical information
Electrical setup
AD 941
002
3x 230 V motor voltage
S
003
1x 230 V, motor power 4.0 HP (3.0 kW)*
O
005
60 Hz
S
006
4.0 HP (3.0 kW)*
007
5.5 HP (4.0 kW)*
S
008
7.5 HP (5.5 kW)*
O
009
10.0 HP (7.30 kW) Power ratio S6/40%*
O
10
Star-delta start
O
12
Trigger switch for dust extractor start
O
14
3-phase CEE coupling for additional equipment with time-delayed connection (essential for the use of a power feeder)
O
29
Electrical equipment according to CSA rules
O
Cutterblock
AD 941
30
Surface plaining width in inch
16
-
Total planer table length (inch)
86⅝
-
Infeed planer table length in inch
42½
-
Maximum depth of cut in mm
5
-
Professional planer fence, 1300 x 170 mm
S
34
Removable support fence for thin workpieces
O
36
Planer guard EURO “Standard”
S
37
Planer guard EURO “Comfort”
O
38
2-knife Felder-system cutterblock
S
39
4-knife Felder-system cutterblock
O
41
3-knife TERSA cutterblock
O
44
Silent-POWER spiral cutterblock
O
-
Number of knives - Silent-POWER spiral cutterblock
63
Thickness Planer and Feed Drive
AD 941
50
Thickness planing width in inches
16
-
Maximum depth of cut in mm
5
-
Minimum/maximum thicknessing height (inch)
⅛-9⅞
51
Digital display for thicknessing height in mm
O
52
Digital display for thicknessing height in inch
S
53
Electrical height adjustment and digital display of the thicknessing table („Power-Drive“ D1)
O
54
Central lubrication Thicknessing table spindles
O
56
2 speed synchronised feed drive 6+12 m/min
S
General
AD 941
-
Working height in inch
35
-
Min. transport width in inch
31½
-
Extractor connection port diameter in mm on Planer/Thicknesser
120
-
Weight, lbs (with average equipment)
1342
Important Accessories
AD 941
54A
10.2.002 - Special grease, 400g (cartridge)
O
210
Rolling carriage (410-160)
O
211
Table extension coupling system for 410 mm planer table
O
212
Power feed mount
O
221
Preparation for Container Transport
S
223
IPPC
S
S ... Standard equipmentO ... OptionW ... Choice- ... not available
