Jointer-Planer AD 741

jointer-planers- jointers-planers ad 741 felder wood
jointer-planers- jointers-planers ad 741 felder wood
AD 741
Available immediately Now customizable
Book now Secure at promotional price
All prices excl. sales tax
jointer-planers- jointers-planers ad 741 felder wood

Tried and tested quality with the new design of the AD 741

The tried and tested planer/thicknesser from the Felder 700 series is renowned for its excellent planing results and reliability. In the new design the AD 741 offers an unbeatable price/performance ratio and is a perfect entry level model into professional woodworking. Like all planers from Felder, the AD 741 can also be equipped with the revolutionary Silent-Power® spiral cutterblock guaranteeing optimal working conditions by halving the noise emissions.

Highlights:

  • Easy, synchronised opening of the solid planing table
  • Minimum space requirement due to the optimised planing fence
  • Accuracy to a tenth of a millimetre on the thicknessing table adjustment with digital indicator
  • Optional “Power-Drive” package for electrical control
  • Easy to read depth of scale, optimally integrated into the machine chassis
  • The Felder system cutterblock, has been guaranteeing perfect planing results for decades
  • Innovative Silent-Power® spiral cutterblock halves noise emissions

FELDER. Quality and precision in a nutshell

Since 1956, a guarantee for perfect results with excellent ease of use and reliability in regular professional use. Woodworkers are always enthusiastic about the individual and solid solutions for small and mid-sized businesses.

The most important highlights at a glance


... Your decision for Felder, a risk-free decision

Thicknesser AD 741 Felder Felder Group woodworking
  • The right machine for every budget
  • Complete reliability in professional use
  • Tailor made machine solutions
  • High quality cast iron machine table and aggregates
  • Innovative detail solutions derived from 60 years of experience - already included in the standard configuration
  • First class manufacturing and finishing standards
  • Intuitive application concepts
  • Modern, distinct design
  • Quality and precision from Austria
  • Powerful and efficient
  • Complete package: Comprehensive service support

Details

The solid cast iron cutter-block housing is built for heavy duty work. The serrated steel infeed roller and micro-serrated steel outfeed roller ensure a smooth transport of the workpiece through the machine. Both steel rollers are well dimensioned and are non-wearing.
The Felder system cutterblock has guaranteed perfect planing results for decades. Resin free locking screws and the self-setting knives make it possible to change the blade in less than 2 minutes. Time consuming adjustments and purchasing of expensive setting gauges are a thing of the past.
  • 2 or 4 knife cutter-block
  • Quick and effortless knife change
  • Self aligning knives are perfectly set each and every time!
  • No resin buildup on the clamping screws
  • Extremely quiet operation due to the enclosed design
  • Standard or Tersa knife systems are also offered
  • Cost savings due to the 2 or 4 sided time saving cost efficient knives

Exclusive for planer/thicknessers from the Felder Group. The Silent-Power® spiral cutterblock reduces noise emissions by more than half when planing. The continuous pulling cut ensures tear-free results when planing all types of wood. With this revolutionary new development from Format4 you are obtaining all of the advantages of a spiral cutterblock at considerably lower operating, investment and adjustment costs. The advantages of the Silent-Power® cutterblock at a glance ...

  • Extremely quiet, noise is reduced by half
  • Usable blade life twenty times longer than standard blades
  • Four highly precise cutting edges on each knife
  • Optimised chip extraction and reduced chip volume
  • Tear-free jointing results
  • Reduced power consumption when compared to similar systems
The chip removal can be adjusted continuously to up to 1/8” (4 mm). The magnifying glass guarantees accurate reading of the scale.
Felder’s jointer fence: A masterpiece of engineering providing stability, precision, and space saving! The jointer fence tilts from 90 to to 45 degrees. It can be positioned at any angle in between.
The space saving jointer guard integrated into the machine chassis stabilizes the workpiece when jointing and beveling.
Quickest ever conversion from planer to thicknesser by simultaneously lifting the spring-assisted planer tables
Simple choice for the fad drive. Speeds of 20 ft /min. and 40 ft. /min. As an option, the machine can be equipped with a reversing controller. To control the dust extractor system, connect it to a potential-free contact. This option automatically turns on your dust extractor.
The fully electrical “Power-Drive” planer table control offers the most precise adjustment and repeat accuracy. With a twist of the knob, you can quickly adjust the planing height, then fine-adjust using the button. An integrated LED-display displays the actual value.
Planing accuracy to .004” with the use of a handwheel and with intergrated digital display. Max. planing height 9,1” (230 mm).
Heavy chip loads are no problem for the chip ­extraction hood due to its efficient design and large dimension.
2 spring loaded pressure bars prevent chattering of very thin workpieces during planing.
With the proven Felder table extension systems, you can extend your jointer table quickly and without tools.
Using the tried and tested FELDER table extensions it is quick and easy to extend your planing table by up to 1000 mm without the use of tools.
The Horizontal Mortiser is mounted on the jointer-planer side. An optional dowelling device can be added to increase the mortiser capability.

Technical data

Electrical setup

AD 741
002
3x 230 V motor voltage
S
003
1x 230 V, motor power 4.0 HP (3.0 kW)*
O
005
60 Hz
S
006
4.0 HP (3.0 kW)*
S
007
5.5 HP (4.0 kW)*
S
008
7.5 HP (5.5 kW)*
O
009
10.0 HP (7.30 kW) Power ratio S6/40%*
O
10
Star-delta start is necessary from 7.5 HP and 3x230V
O
11
Switch for forward and reverse run
O
12
Trigger switch for dust extractor start
O
14
3-phase CEE coupling for additional equipment with time-delayed connection (essential for the use of a power feeder)
O
29
Electrical equipment according to CSA rules
O

Cutterblock

AD 741
30
Surface plaining width in inch
16
-
Total planer table length (inch)
78¾
-
Infeed planer table length in inch
38⅝
-
Maximum depth of cut in mm
4
32
Planer fence with 1100 x 150 mm anodised fence
S
34
Planer fence with 1300 x 170 mm anodised fence incl. tilting auxiliary fence for narrow workpieces
O
36
Planer guard EURO “Standard”
S
37
Planer guard EURO “Comfort”
O
38
2-knife Felder-system cutterblock
S
39
4-knife Felder-system cutterblock
O
40
4-knife Standard-knife cutterblock
O
41
3-knife TERSA cutterblock
O
44
Silent-POWER spiral cutterblock
O
-
Number of knives - Silent-POWER spiral cutterblock
63

Thickness Planer and Feed Drive

AD 741
50
Thickness planing width in inches
16
-
Min. workpiece length in mm
190
-
Maximum depth of cut in mm
4
-
Minimum/maximum thicknessing height (inch)
⅛-9
51
Digital display for thicknessing height in mm
O
52
Digital display for thicknessing height in inch
S
53
Electrical height adjustment and digital display of the thicknessing table („Power-Drive“ D1)
O
56
2 speed synchronised feed drive 6+12 m/min
S

Mortising Unit

AD 741
191
Mortising chuck, clamping range 0–16 mm
O
190
Mortising table, heavy professional execution
O
194
Transport unit for mortising table heavy (#190)
O

General

AD 741
-
Working height in inch
35
-
Min. transport width in inch
31½
-
Extractor connection port diameter in mm on Planer/Thicknesser
120
-
Weight, lbs (with average equipment)
1100

Important Accessories

AD 741
210
Rolling carriage (410-160)
O
211
Table extension coupling system for 410 mm planer table
O
221
Preparation for Container Transport
S
223
IPPC
S
S ... Standard equipment O ... Option W ... Choice - ... not available

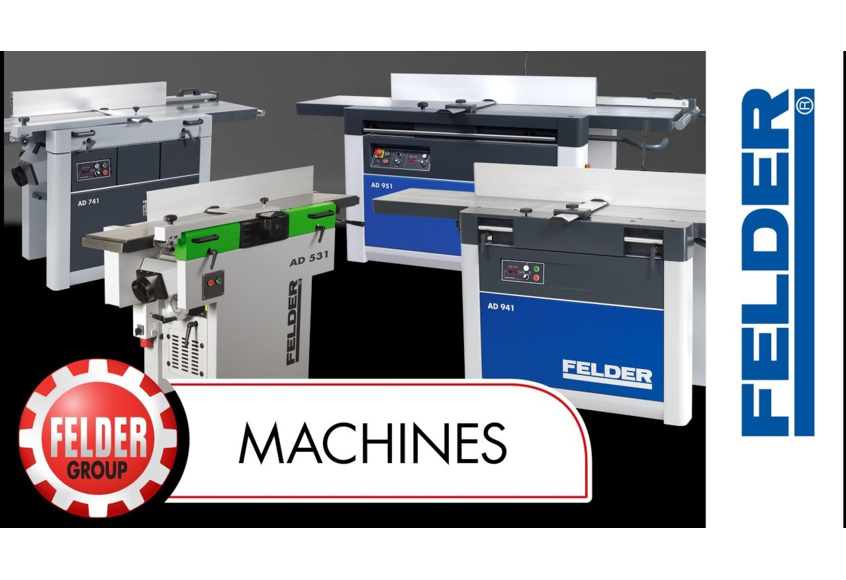

FELDER Planer Thicknesser Range
