Description
The strength lies in the length
The solid plan 51L planer from the premium brand Format4 impresses with its new design and above all with the new three metre planing table length. The feeding planer table alone offers 1,650 millimetres of adequate supporting surface for larger dimensioned workpieces. As an absolute highlight, the new plan 51L is the first Format4 planer that offers a tiltable planing table for concave and convex joint finishing. The space saving design of the planing fence makes it possible to position the planer directly against the workshop wall. The comfort guard is integrated into the machine chassis and can be folded away which, when coupled, with the counter design of the machine cover panel allows absolute freedom of movement when planing. The Power Drive electrical height adjustment is included as standard and offers operating comfort of the highest level. The ergonomically designed control panel is positioned at eye level.
Highlights & Details
Professional jointer fence withparallelogram adjustment
A masterpiece of stability, precision and space saving design - the innovative parallelogramm Format4 jointing fence system design allows you to be able to position your machine directly next to the workshop wall, without restricting the planing width.
Fully adjustableThe planer fence can be tilted to any position up to 45 degrees. There is an end stop at both the 90° and 45° positions.
The new Format4 auxiliary fenceWhen processing thin or narrow workpieces the new tiltable auxiliary fence attached to the jointer fence, guarantees a safe and comfortable planing operation.
SUVA planer guardThe SUVA planer guard covers the entire planing area and lifts automatically when planing.
Format4 planer guardMaximum operational safety and an unprecedented ease of use. The space saving jointer guard integrated into the machine chassis stabilizes the workpiece when jointing and beveling.
Complete freedom of movement when planingThe EURO comfort planing fence can be folded in two places which offers maximum safety and the highest level of operating comfort for all planing work.
Set the depth of cut at the touch of a button with “Power-Drive”The high-precision planing table adjustment system provides excellent surface planing quality. The long, solid cast iron planing tables can be adjusted to a tenth of a millimetre at the touch of a button, using the electromotive “Power-Drive” adjustment which is included as standard and ensures maximum user comfort. The ergonomic control panel is always at eye level.

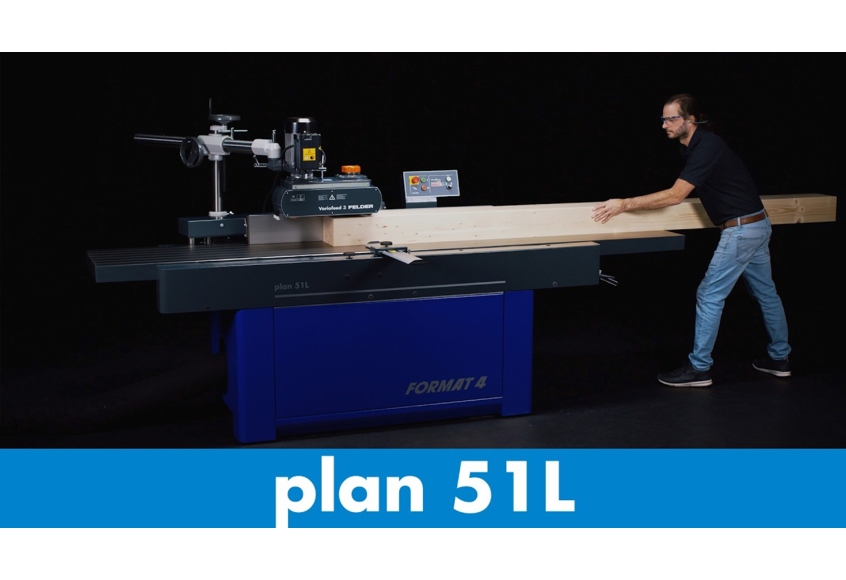

Jointer table length 118,1” (3000 mm)
The highlight of the planers are the heavy, solid, ribbed planing tables with a total length of three metres. The length of the infeed planing table alone is an impressive 1650 mm and offers a solid support surface even for the biggest of woodworking challenges.
Concave - convex joint
The plan 51L is the first Format4 planer to offer a tilt setting of the infeed planing table for the production of convex and concave pieces. With the concave or convex planed workpieces you will achieve perfect results when gluing together without any visible joints.
Excellent extraction resultsThe perfectly optimised construction of the large dimensioned chip extraction hood always guarantees the best extraction results.
See and feel the incredible smooth finish!
4¾" (120 mm) cutting diameter and the unique Format4 knife system with reversible blades - for many decades a guarantee for excellent jointing results. Maximum blade life and minimum cost of the blades ensure considerable savings.
Format4, perfect jointing and planing technology!
For decades the Format4 system with double sided disposable planer knifes proved its advantages. Perfectly manufactured and adjusted in the factory, you do not have to adjust the planer knives and expensive aligning tools do not have to be purchased. It’s mere child’s play to change the planer knives. In less than a few minutes you can change the 4 knife cutterblock. Format4 planer knives are instantly ready for action! Your Format4 can also be equipped with a standard or tersa knife cutterblock
SILENT-POWER®
The Silent-Power® spiral knife cutterblock reduces the noise emissions when planing by more than a half. Specially developed tungsten carbide blades with their constant pulling cut, guarantee a tear free planing finish of every wood type. The optimized extraction hood ensures that the noticably shorter chips are effectively extracted and land considerably more compact in the dust bags. This more compact filling of the chip bags, saves you from having to frequently change the bags. Maximum reliability and highest level of jointing quality - the innovative new development from Format4 offers a jointing system with knives that have a usable life up to 20 times longer when compared to a conventional HSS-blade system. Damaged blades can be exchanged individually, removed and replaced with a few turns of the hand. The advantages at a glance ...
- Sensationally quiet, noise emissions halved
- Blade life up to 20 times longer
- Four highly precise cutting edges on each knife Click here to get more information
