Industry Panel Saws

Vertical Beam Saw KV 925

Cutting dimensions:
4 x 8 feet
5 x 10 feet
Cutting depth 2⅜" (60 mm)
Motor power 3 kW
LED-status display

Questions about this article? add to wish list remove from the wish list

Description

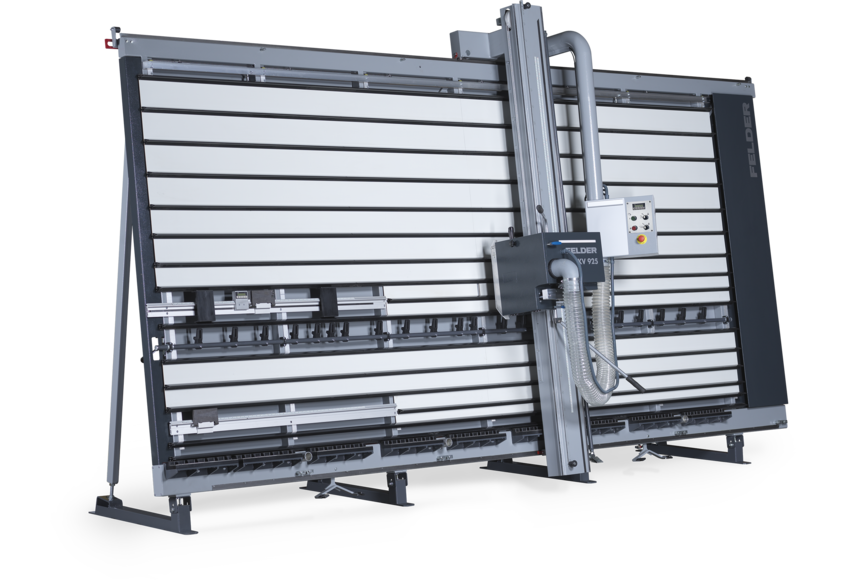

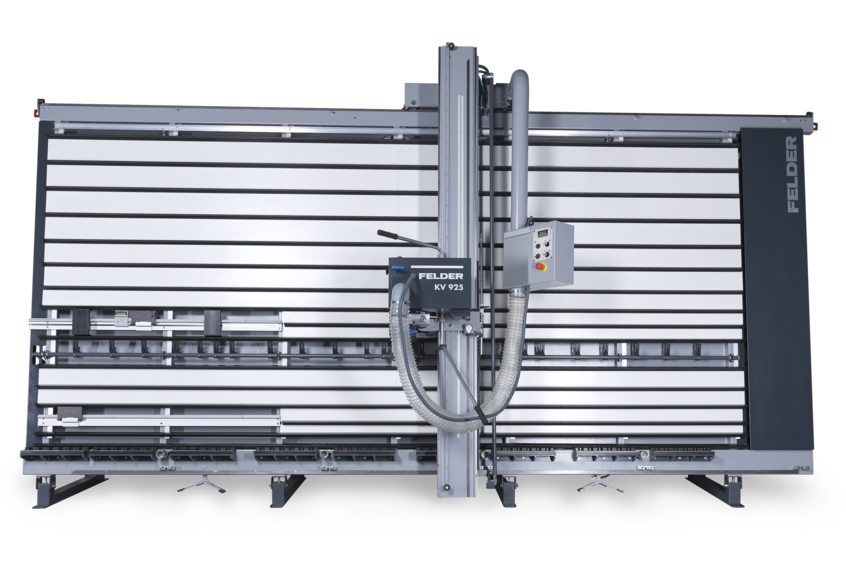

Felder KV 925 – Top class features for the entry-level

Robust, compact, precise – the vertical Felder beam saw guarantees highest precision, efficiency and productivity on the smallest of footprints. Easy operation, powerful and up to 2 ²³/₆₄" (60 mm) cutting depth guarantee a wide range of applications of the vertical beam saw in any workshop. With numerous premium equipment features, such as the status display, the automatically deflecting support grid, or the pneumatic locking of the saw carriage, you get top-class Felder operating comfort at an exceptionally competitive price.

In order to cover the wide range of applications of vertical beam saws, we offer the FELDER KV 925 in the following sizes:

KV 925 S: 4 x 8 feet maximum cutting dimensions 62 ⁶³/₆₄" x 98 ²⁷/₆₄" (1600 x 2500 mm)
KV 925 M: 5 x 10 feet maximum cutting dimensions 74 ⁵¹/₆₄" x 125 ⁶³/₆₄" (1900 x 3200 mm)

Highlights

Details

A powerful 3 kW motor and a saw blade diameter of 9 ²⁷/₃₂" (250 mm) with scoring unit and 2 ²³/₆₄" (60 mm) cutting depth.

For horizontal cuts, the distance holders move automatically in height to avoid being damaged by the saw blade.

Thanks to the changing colors of the innovative LED concept, the various machine states are immediately visible.

The standard equipped professional package includes horizontal as well as vertical pneumatic locking system of the saw carriage with two digital measure displays and horizontal strip fence. This increases both the general ease of operation and the process reliability of the saw.

Durable and precise stainless steel workpiece supports offer a solid support for daily work in the shop.

A user–friendly and well–organized control panel designed for maximum operating comfort.

Maximum flexibility in processing, regardless of strip length.

Integrated, powerful TRC dust extraction. Dust emissions considerably below 1 mg/m³.
