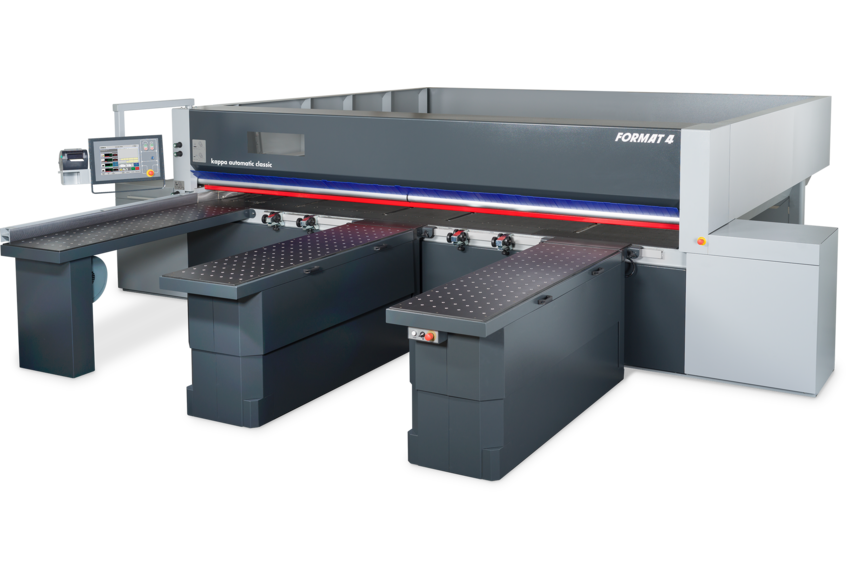

Pressure beam saw /vertical panel saw kappa automatic classic Format4 Felder Group woodworking

Pressure beam saw /vertical panel saw kappa automatic classic Format4 Felder Group woodworking

Pressure beam saw | Beam saw, horizontal Format4 kappa automatic classic

Questions about this article?

Description

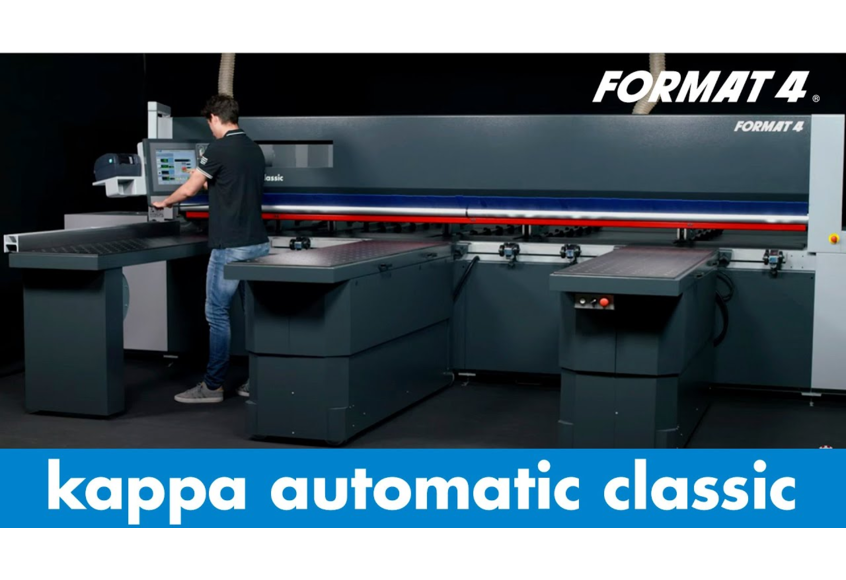

The compact beam saw for efficient cutting

The FORMAT4 kappa automatic beam saw fulfils the individual requirements of the discerning woodworker with efficient panel sizing with an excellent price/performance ratio, with a 2m² less space requirement than saws with the same cutting length.

The classic model convinces with the generous basic specification, with cutting lengths of 126" (3,200 mm) and 169¼" (4,300 mm), two moveable support tables with air cushion function and a pressure device for an exact right angle cut when crosscutting. For perfect, chip free results, the main saw aggregate is equipped with a 7.5kW motor, has a max. 12⅝" (320 mm) saw blade diameter and 2⅝" (68 mm) saw blade projection. The intuitive touchscreen control concept ensures a quick and simple control of the machine.

Highlights & Details

Individually controllable air cushion tables

Three separate fans are used for the air cushion function on the side tables. Individual control ensures convenient panel handling and resource-saving use at all times.

Everything in sight

Thanks to the flexible operating terminal and the easy-to-see window on the pressure bar, you have always everything important in sight.

Automatic front lifting tables

The move towards automation with automatic front lifting tables. Stacks of panels with up to 240 millimetres can be temporarily stored here and processed one plan at a time. In addition, it is possible to load a pre-commissioned panel stack and complete separate cutting plans with minimal set-up time. Here, the thickness of the panel is independent.

Additional operating terminal on the air cushion table

With the additional operating terminal on the air cushion table, you save time and increase productivity.

Material pusher towards the cutting axis

With the material pusher towards the cutting axis, panels can always be loaded reliably and without damage, regardless of the thickness of the material.

Innovative front lifting table system

To take a further step towards automation, the kappa automatic classic can be equipped with the new, innovative front lifting table system. The standard side tables are replaced by solid, fully automatically controlled scissor lifting tables. This guarantees an enormous increase in efficiency and greatly enhances operating comfort.

Saw carriage with main and scoring unitThe saw carriage with main blade and scoring blade running on ground and hardened round guides ensures an extremely smooth movement and an exact cutting angle.

Roller trackThe roller track supports the material pusher transport of panels and guarantees a precise feed of the panel material to the cutting line.

Workpiece transportSolid steel clamps, pneumatically controlled, guarantee a safe and damage-free clamping of panel stacks (opening height 3⅛" (80 mm)) and individual small panels.

Double guided measuring system on the material pusherThe panel pusher, made from solid steel is guided on both sides and is equipped with a magnet measurement band system. The combination of a highly precise servomotor and solid material grips ensures maximum repeatability is achieved.

Saw carriage driveThe constant speed of the saw carriage is variable and can be set between 1–40 m/min from the control panel. The rack and pinion system on which the carriage runs guarantees a constant cutting quality regardless of the material being processed.

Pressure deviceThe pressure device with rollers presses the workpiece against the fence and guarantees an exact 90° angle (for workpiece widths 50–1200 mm).

Perfect process reliabilityIn combination with the cutting optimisation software a label can be printed for each workpiece with various information (order number, intended use, CNC program, which side is to be put through edgebander).

Simple operationThe simple design of the control panel and the clearly laid out menu guidance of the software control with a Windows based system, is intuitive in its operation. The kappa automatic can be equipped with Ardis cutting optimisation software. As an option, it can also be equipped with a label printer.

Pressure beam The pressure beam lowers itself before making the cut and presses the workpiece onto the saw table. This pressure holds the workpiece during the cut and can be manually regulated up to max. 3 bar. The pressure beam also carries out the extraction of the dust and chips created by the saw blade.

Efficient software packages

The Format4 kappa automatic beam saw, guarantees simple operation and maximum efficiency with numerous software packages.
