Description

Multifunctional and flexible, the Felder membrane press MVP 31.14 is the ideal vacuum press for every workshop of any size

Whether it is about veneering, covering workpieces with laminates, form gluing, wrapping workpieces or gluing on edges, the Felder MVP 31.14 membrane press was developed to meet the highest demands in trade, commerce, and industry.
The principle of the working process is based on vacuum under the rubber membrane, which adapts precisely to the workpiece below and builds up the pressure required for the gluing.
With a swivelling worktable and rolling carriage as the standard configuration, the Felder MVP 31.14 vacuum press is ideal for the use in large and even very small workshops.

Highlights & Details

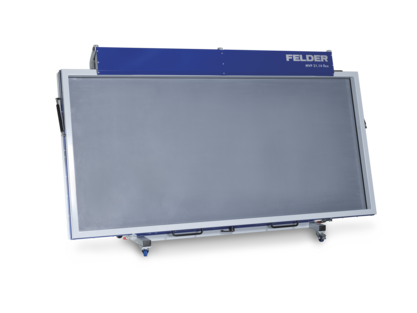

Thanks to the swivelling worktable, the machine can be set up in a space-saving manner while still offering maximum flexibility thanks to its chassis.

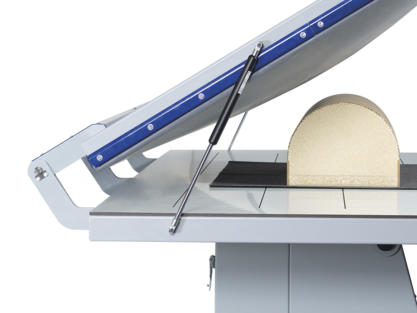

The relocation of the pivot point beyond the worktable enables uncomplicated clamping of large, high workpieces. Additionally, this significantly reduces the risk of a workpiece slipping.

The HPL working surface with vacuum channels guarantees uniform negative pressure, even when processing larger workpieces.

Thanks to the powerful oil-lubricated vacuum pump with 40 or 48 m³/h (60Hz), the required pressing power is built up rapidly. The oil lubrication guarantees both the highest durability and pressing quality at greater installation heights over 800 m above sea level in the event of moisture escaping during the pressing process.

Thanks to the swivelling worktable, the machine can be set up in a space-saving manner while still offering maximum flexibility thanks to its chassis.

The HPL working surface with vacuum channels guarantees uniform negative pressure, even when processing larger workpieces.

Thanks to the powerful oil-lubricated vacuum pump with 40 or 48 m³/h (60Hz), the required pressing power is built up rapidly. The oil lubrication guarantees both the highest durability and pressing quality at greater installation heights over 800 m above sea level in the event of moisture escaping during the pressing process.

The quick, simple and clear control panel of the MVP 31.14 flex enables uncomplicated handling at the machine.

A massive press frame, including a 2–2.5 mm rubber membrane with an expandability of 700%, allows optimum machining of large, high workpieces. The steel construction made up of 60x80 mm profile tubes guarantees maximum stability.

The stable construction allows for the press frame to be clamped with only 2 clamping levers, thus saving time and unnecessary movements.

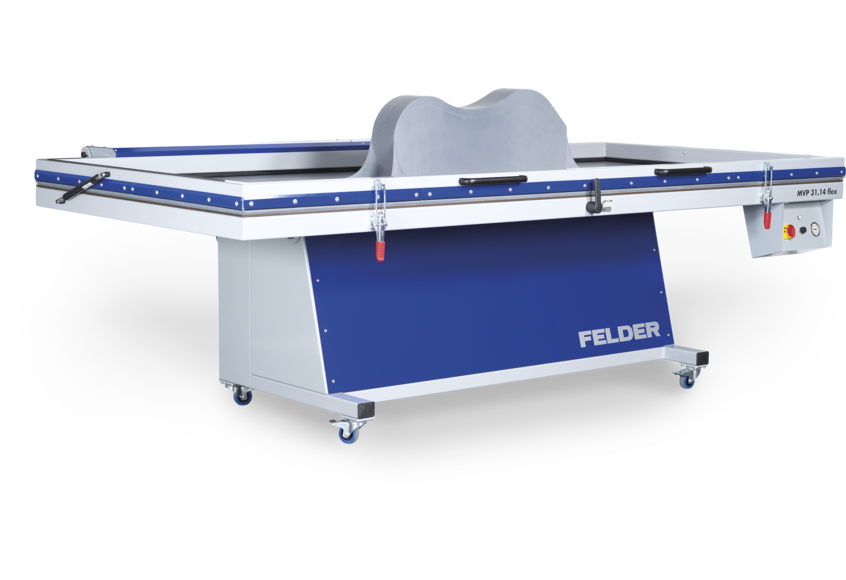

Membrane press Felder MVP 31.14 flex

Art. No. WWS-F0134

$20,195.00

excl. sales tax , without shipping costs

$20,195.00

incl. % tax , without shipping costs
