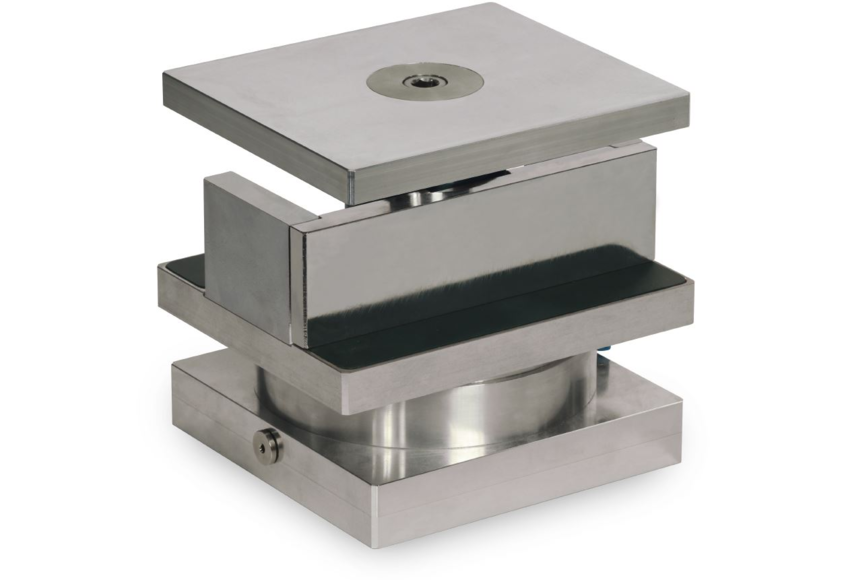

Nesting frame clamp

Dimensions of the support and the clamping plate (rectangular): 144 mm x 176mm

Height of the frame clamp surface support up to 75mm (manual adjustment of both the clamping range and tilt).

Including:

• 0.5m hose Ø 4mm
• 1.5m hose Ø 8mm
• 1 Y-distributor piece 8-8-8mm
• 1 Adapter 4-8mm
• 1 Adapter for compressed air connection
• 1 elbow joint for 8mm vacuum connection
• 2 Ø10mm reference pins, L=20mm
• 1 spacer ring for small component clamps -  Height 50 mm, thickness 10 mm (301-150)
