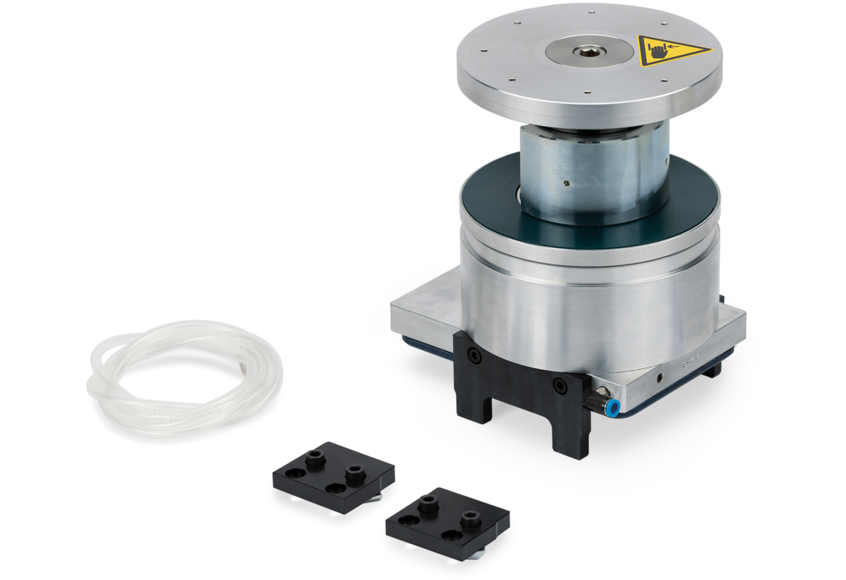

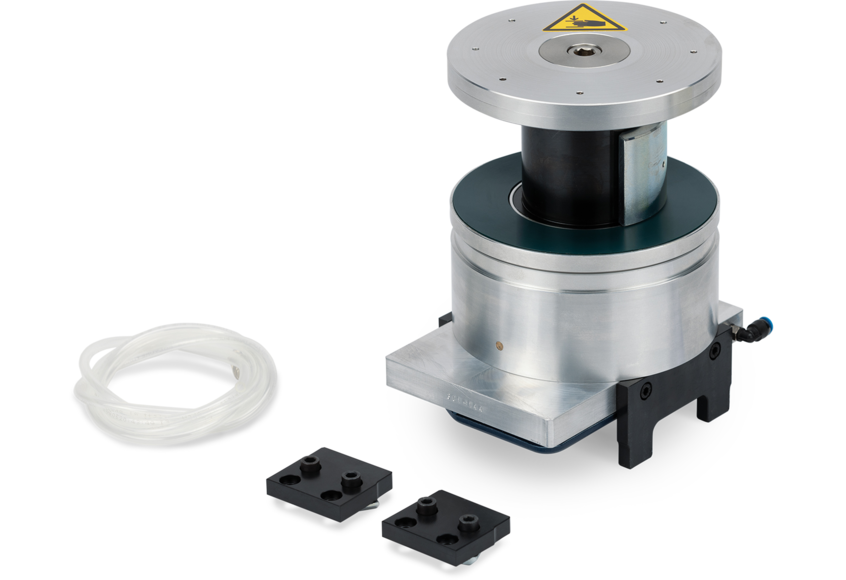

Frame clamps height 100 mm

Description

Dual circuit vacuum system | round | for H500

Diameter of the support and the clamping plate: 144 mm

Height of the frame clamp up to the surface support: 100 mm (manual adjustment of the clamping height).

Including 2 reference tabs and 2 reference plates

+1 semicircular spacer ring for round frame clamps with a height of 50 mm, thickness 10 mm (301-148)

Technical information

Clamping Range [mm] 55-105
Execution round
Overall height [mm] 100
Suitable for H500
Vacuum system two circle
Frame clamps

Frame clamps height 100 mm

for clamping range 55-105 mmArt. No. 301-144
Select variant
for clamping range 55-105 mm
Load variants
$1,435.00

excl. sales tax , without shipping costs

$1,435.00

incl. % tax , without shipping costs
