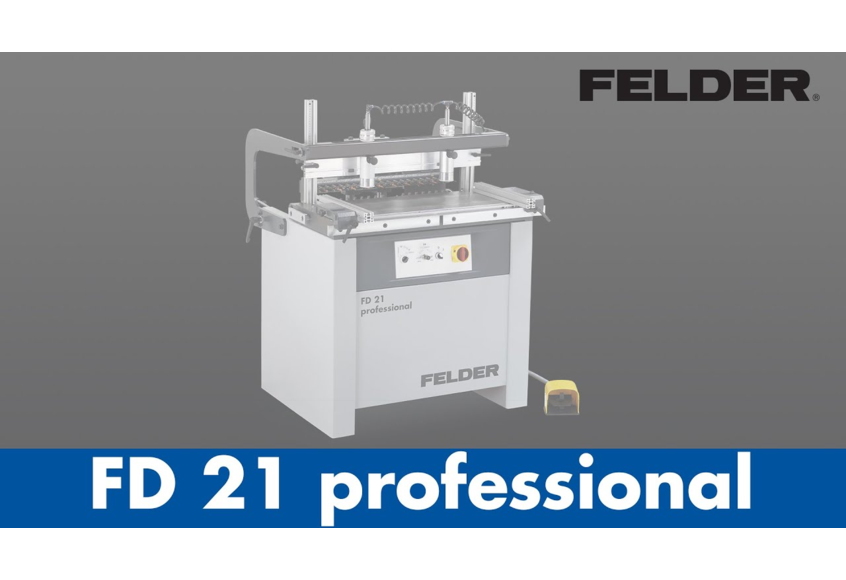

Dowel hole drilling machine FD 21 professional
% Sale
Dowel boring machine FD 21 professional Felder Felder Group woodworking
Dowel boring machine FD 21 professional Felder Felder Group woodworking

Dowel hole drilling machine FD 21 professional

Art. No. WWS-F0015
instead of $10,221.40
$8,761.40
Save up to $1,460.00

excl. sales tax , without shipping costs

instead of $10,221.40
$8,761.40
Save up to $1,460.00

incl. % tax , without shipping costs


Pick-up at the branch free of charge
Questions about this article?

Description

Maximum precision when dowel boring with the Felder FD 21 professional. With 21 high quality drilling spindles at a distance of 32 mm, for drill bits with a diameter of maximum 35 mm, exact dowel and line boring holes are guaranteed . The welded chassis in combination with the solid cast iron table, solid side and longitudinal stops, as well as pneumatic workpiece holders and ergonomically designed operating elements ensure that the FD 21 professional, is a dowel boring machine of the top class.

Technical information

  • 3x 230V, 60 Hz power supply (call for 1x 230V option)
  • Work table can be extended on 3 sides
  • Locking system for efficient processing
  • Fence depth adjustable up to 300 mm
  • Drilling depth compensation

Highlights & Details

Tiltable drilling unit21 spindle unit, quick-change chucks, 32 mm system spacing. The drilling unit can be tilted from 0°–90° using compressed air.
Optional: Blum, Hettich or Grass?The Felder combination drilling segments guarantee accurate holes for your preferred hinge supplier, in one working process.
Drilling depth compensationThe 8 mm compensation ensures that when carrying out corner connectors the drilling depth only needs to be set once.
Lateral stopsSolid side fences left and right with a profile of 420 mm.
1907-verfahren im zehntelmillimeterbereich.jpg
Optional: Adjustment with an accuracy of a tenth of a millimetreRemovable side fences with digital displays enable comfortable setting adjustment, accurate to within a tenth of a millimetre. (0.004")
Optional: Maximum repeatabilityThe Felder locking system is mounted to the front of the FD 21 professional. Variably adjustable stops can be moved into position quickly and fixed accurately. (Not possible to retrofit)
Optional: Symmetrical settingsGauge for the transferring of the distance of the side fences for simple, symmetrical adjustment.
EndstopTwo 1,500 mm linear fences each with two stops.
Fence depth up to 11 3/4" (300 mm)Fence depth adjustable up to 11 3/4" (300 mm) with a scale.
Optional: Maximum load bearing capacityAdditional pressure cylinders ensure maximum clamping force.
Optional: Straight or at an angleThe 90° fence and the 45° miter fence offer comfort and precision with every application.
Optional: Everything in its placeOptional: Holders for the side fences, fence extensions and two tool holders each holding 21 tools ensures that all equipment required is always at hand.

Technical information

Drilling Depth [inch] 2¾"
Drilling Height Adjustment [inch] 2⅛"
Table Size [inch] 35⅜" x 15"
