With a motor power of 10, 12 or 15 kW (depending on the series) and up to 24,000 rpm, the milling motor is controlled using an inverter and is attached directly to the support module of the drilling head in the Z axis. Dual linear guides guarantee highly precise vertical guiding. The main motor is positioned using ground ball screws. The HSK F63 tool clamping is done automatically. The clamping of the tool is checked using sensors, which then confirm that it is safe to start the operation. The tool holder is cleaned pneumatically. The C-axis is available as the fourth axis and is interpolating (360°) with a compressed air interface for aggregates as standard.

The C-axis is optionally available as fourth interpolating (360°) axis and has a compressed air interface for aggregates.

Regardless whether the machine will only be used for cabinet manufacturing or as an all-rounder, you can decide which drilling head configuration is the right one for you. Choose between, a drilling head with only vertical spindles or one with spindles and a grooving saw for vertical and horizontal processing. Inverter controlled motor up to 7,500 rpm

The nesting table with optimal matrix geometry enables the full panel support of workpieces of any size and design, guaranteeing exact positioning.

high flow nesting table: An upgrade to a grid pattern of 30 by 30 mm is available for best possible hold down effects for all sorts of shapes and sizes but especially for smaller pieces. The vacuum table is made out of phenolic resin, which has the benefit of being non-corrosive and is not affected by heat or cold (expansion and contraction). Accurate precision is guaranteed.

The extraction bell optimises the suction results and reduces the required extraction volume due to its compact design.

The adjustable linear tool changer including cover on the machine base-frame optimally protects the tool-receiving socket against chips and dust,ensures shortest change-over times and can accommodate up to 12 tools and 3 units.

All across the piece of furniture, F4^®Solutions generates a consistent, efficient and profitable production process. The software tools for maximum productivity accompany you through the entire production chain. Easiest design of individual pieces of furniture in the familiar CAD environment. Photorealistic rendering of sales assisting 3D visualizations. Detailed data transfer to all integrated machines with economic nesting optimization. Even the final assembly is accompanied by clear, detailed drawings and 3D data - that's 4.0 for trade and industry. In our videos you will learn everything about Craft 4.0 and Industry 4.0.

For the highest demands, all inclusive - tool library, programming section and an operator control panel on the machine with a consistent and intuitive user interface. F4®Integrate is a software developed by  Format4® Developed from practical experience for practical use in cooperation with our CNC customers, F4®Integrate meets the highest demands in modern CNC machining.

Enjoy the comfort of a state-of-the-art and well-coordinated user interface. Tool library (F4Toolbox), programming section (CAM area with integrated CAD area, F4Create) and machine operation control (F4Operate) all packed into just one single screen, with a consistent and intuitive user interface.

F4Integrate is based on G-Code, so external industry programs can be easily connected and the transfer of programs smoothly organised.

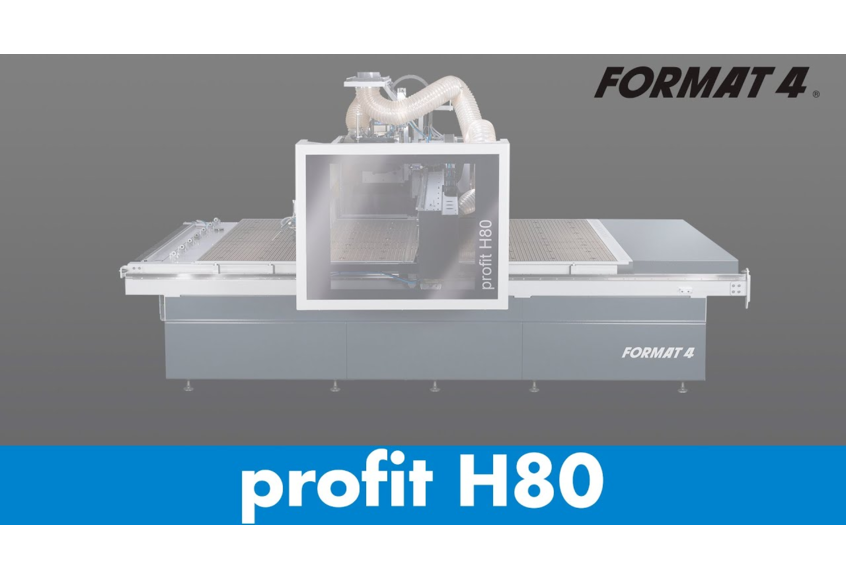

Whether as a standalone machine or fully automated cell, the profit H80 offers different automation options for maximum efficiency and shortest cycle times.

» Automation solutions

The labeling system facilitates the work steps and guarantees absolute process reliability.

The standardized use of units allows almost limitless applications. With the already integrated compressed air interface with blow-off and cooling function even the most custom-built units are compatible for special applications.

The maintenance door on the rear of the hood makes the mortising unit easy, quick and  ergonomically accessible.

Final chips are completely extracted by the under-table extraction between conveyor belt and worktable.

The upper table extraction on the conveyor belt cleans the workpieces on the surface during transport. This guarantees that the labels will remain in place on the dust free surface.

Thanks to its small footprint, the short out-feed table simplifies the removal of workpieces. An optional labelling unit can then be used to label the workpieces directly at the point of removal so that they can be identified in subsequent production processes.
