Brushing machine

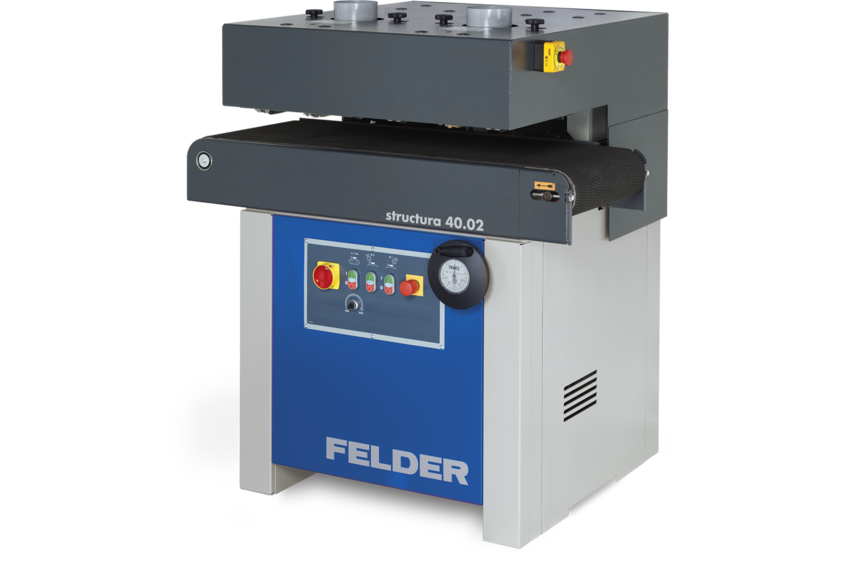

Brushing machine structura 40.02
- Workpiece height: 3–200 mm
- Brush width: 400 mm
- Brush unit: steel brush and Tynex brush
- Feed 2.5–10 m/min
- Quick and easy height adjustment with the hand wheel
Description
Wood brushing – perfect with a Felder brushing machine!
Solidly built, the heavy machine chassis ensures absolute stability; the single–sided aggregate mounting makes it easy to process extra–wide workpieces. 400 mm working width and the variable through–feed height that can be adjusted from 3 to 200 mm allow a wide range of different workpiece dimensions. The single–sided aggregate mounting allows even extra–wide workpieces to be processed.
Perfect for optimum working results of a wide range of wood types; the feed speed can be variably adjusted between 2.5 and 10 m/min.
Details
The height for both brushing aggregates is conveniently and precisely adjusted from 3 to 200 mm by means of a handwheel with read–off optics; the fine adjustment of the second aggregate can be adjusted separately.
The solid machine base–frame of the robust structura brushing machine offers maximum stability. The single–sided aggregate mounting allows even extra–wide workpieces to be processed.
The first unit is equipped with a powerful 4 hp motor and a steel brush (Ø = 190 mm) in its standard version. It runs in synchronisation with the workpiece infeed.
The second unit features a powerful 4 hp motor and is equipped with a Tynex brush (Ø = 190 mm) in its standard version. It runs in the reverse direction to the workpiece infeed.
Excellent extraction results thanks to separate extraction of each brush aggregate.
For optimum working results, the second brush aggregate can be adjusted separately in height.
