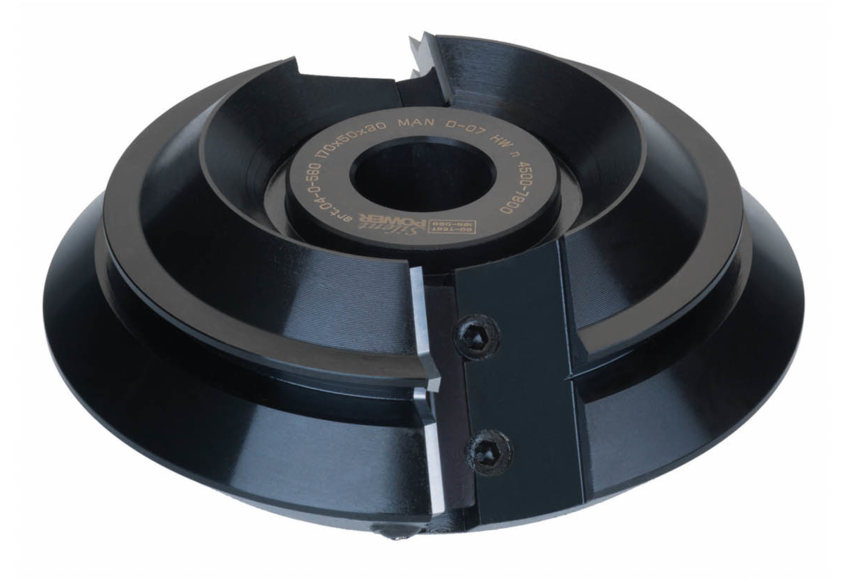

Mitre Glue Cutter 45° | Ø 170 mm | PM
Mitre glue cutter made of steel, with trapezoidal prong shape profile knives Continue
excl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
Description

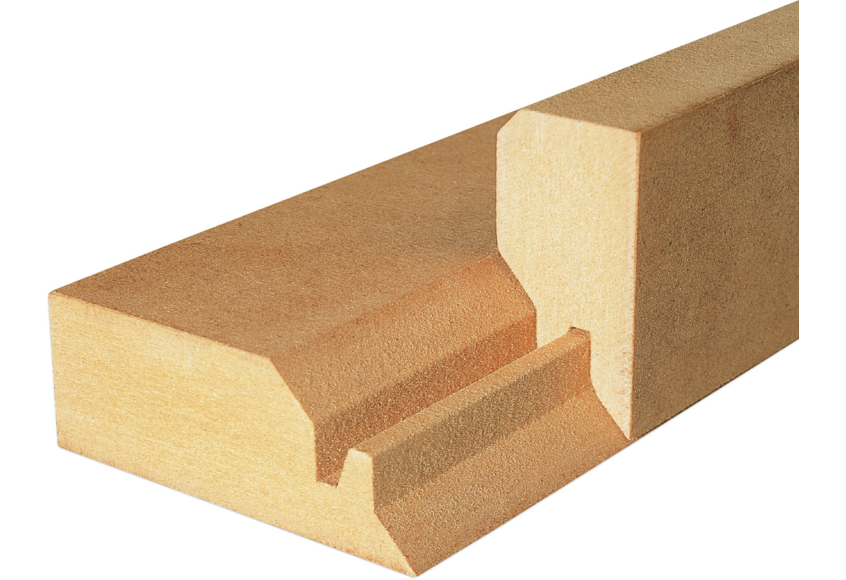

For tear-free mitre joints in solid wood.
For manual feed, chip thickness limited, low kickback. Steel moulding tool, burnished surface.
Quality of the cutting edges
HW = tungsten carbide (old designation HM)
HS = high-alloy high-speed steel (high-performance steel)
SP = alloy tool steel (special steel)
Abbreviations
WM = Reversible knife (can be used on both sides)
PM = Profile knife
Technical information
Angle α [°] | 45 |
Bore Diameter [mm] | 30 |
Cutter Quality | HW |
Diameter [mm] | 170 |
PM Main Cutters [pcs] | 2 |
Rip Capacity [mm] | 16-35 |
Tooth Depth [mm] | 10 |
Trapezoidal tines [pcs] | 1 |
Width 2 [mm] | 50 |
Downloads
- Technical Drawing (PDF | 349.4 KB)
