The software revolution for 4.0 work optimisation

Digitisation in the workshop with barcode, labels and guided cutting.

• Table opening: 12⅝" (320 mm)
• Spindle fence for max. tooling diameter: 9⅞" (250 mm)
• Quick change system for shaper spindle, Standard
• Sliding table: 51⅛" (1,300 mm) [81" (2,050 mm)/98⅜" (2,500 mm)]
• Shaper spindle control: x-motion touch screen

• Small footprint – minimal space requirement!
• 5 axes router spindle, solid construction with 12 kW liquid cooled motor
• Drawing = programming, intuitive operating software

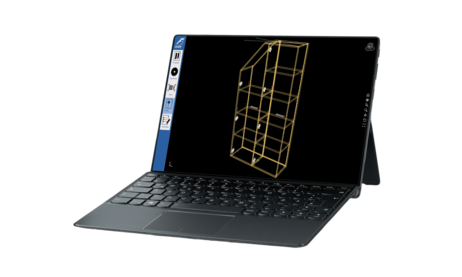

• Software including 3D cabinet software “F4-Design” for presentation, parts list and connection to the machine
• Gantry design, synchronised drive, solid construction for maximum performance
• The drilling head covers the whole working field
• High quality dual circuit vacuum clamping system with 100 mm vacuum pod height
• Large Y dimensions for maximum processing depth
• F4^®Solutions^ready

• Small footprint – minimal space requirement!
• Drawing = programming, intuitive operating software
• Software including 3D cabinet software “F4-Design” for presentation, parts list and connection to the machine
• Gantry design, synchronised drive, solid construction for maximum performance
• The drilling head covers the whole working field
• High quality dual circuit vacuum clamping system with 100 mm vacuum pod height
• Large Y dimensions for maximum processing depth
• F4^®Solutions^ready

• Small footprint – minimal space requirement!
• Drawing = programming, intuitive operating software
• Software including 3D cabinet software “F4-Design” for presentation, parts list and connection to the machine
• Gantry design, solid construction for maximum performance
• The drilling head covers the whole working field
• High quality dual circuit vacuum clamping system with 100 mm vacuum pod height
• F4^®Solutions^ready

• Powerful electrospindle with 5 axes for unlimited processing possibilities
• Intelligent SMART ZONING vacuum management system with pendulum operation
• Four sizes for every workshop: 16.38, 22.32, 22.43 and 22.61
• Front stop row set back for unrestricted machining of individual workpieces with a 3-4 or 5-axis spindle
• Large Z passage size of 200 mm offers flexible machining of high workpieces.
• Loading and unloading units as well as automatic labelling on the loading table
• Up to 36 tool positions
• F4^®Solutions^ready

• Intelligent SMART ZONING vacuum management system with pendulum operation
• Four sizes for every workshop: 16.38, 22.32, 22.43 and 22.61
• Recessed fence row for unrestricted machining of individual workpieces with a 3- or 4-axis spindle
• Large Z passage size of 200 mm offers flexible machining of high workpieces.
• Loading and unloading units and with automatic labelling on the loading table
• Up to 35 tool positions
• F4^®Solutions^ready

• Unloading unit including motorised height adjustment and table extraction
• Loading unit with lifting table on the feeding side
• Alignment unit for lifting table on the infeed side
• DH 12 drilling head, with 12 vertical spindles
• C-Axis for the main spindle 0-360°
• Nesting table with 1 3/16" to 1 3/16" grid

• Smartzoning – flexibly assignable vacuum fields
• F4Integrate Software
• Gantry system, synchronised drive, solid construction for maximum performance
• Automatic tool length measuring system
• 18 Tool Change Positions HSK 63 F
• F4^®Solutions^ready

• smartzoning – flexibly assignable vacuum fields
• F4Integrate Software
• Gantry system, synchronised drive, solid construction for maximum performance
• Automatic tool length measuring system
• 13 Tool Change Positions HSK 63 F
• F4^®Solutions^ready

• Small footprint – minimal space requirement!
• Drawing = programming, intuitive operating software
• “Woodflash” software
• Gantry design, synchronised drive, solid construction for maximum performance
• Automatic measuring system of the tool length
• Perfect nesting with the matrix table made from phenolic resin
• F4^®Solutions^ready

• Sanding height ⅛"–6¾" (3–170 mm)
• Sanding width: 43¼"(1,100 mm)
• Contact roller aggregate, Fine sanding unit with segmented, electro pneumatic sanding pad, 1" (25 mm) segment width
• Feed speed: continuously adjustable 8.20–59 ft/min (2.5–18 m/min)
