24" planing width meets every requirement!
Whether it‘s in a carpenter‘s workshop, in workshops where solid wood is machined or in the field of modern cabinet-making – the performance of the Format-4 planer exact 63 is astounding. Maximum performance, easy operation and individual machine options available at a competitive investment price, guarantee perfect planing results for even the most demanding tasks.

4 different cutterblock systems to choose between:

  • 4 knife Format System cutter-block
  • 4 knife Standard cutter-block using traditional single sided planer knives
  • 4 knife TERSA cutter-block
  • Silent-Power® spiral­ cutter-block

FORMAT4. Uncompromising expertise for the highest of requirements

The Felder Group premium brand has met the highest standards of professional users since 2001. The customised high-performance solutions are uncompromisingly innovative, offer maximum operating comfort and complete productivity.

The most important highlights at a glance


... FORMAT4 Premium machines for premium requirements

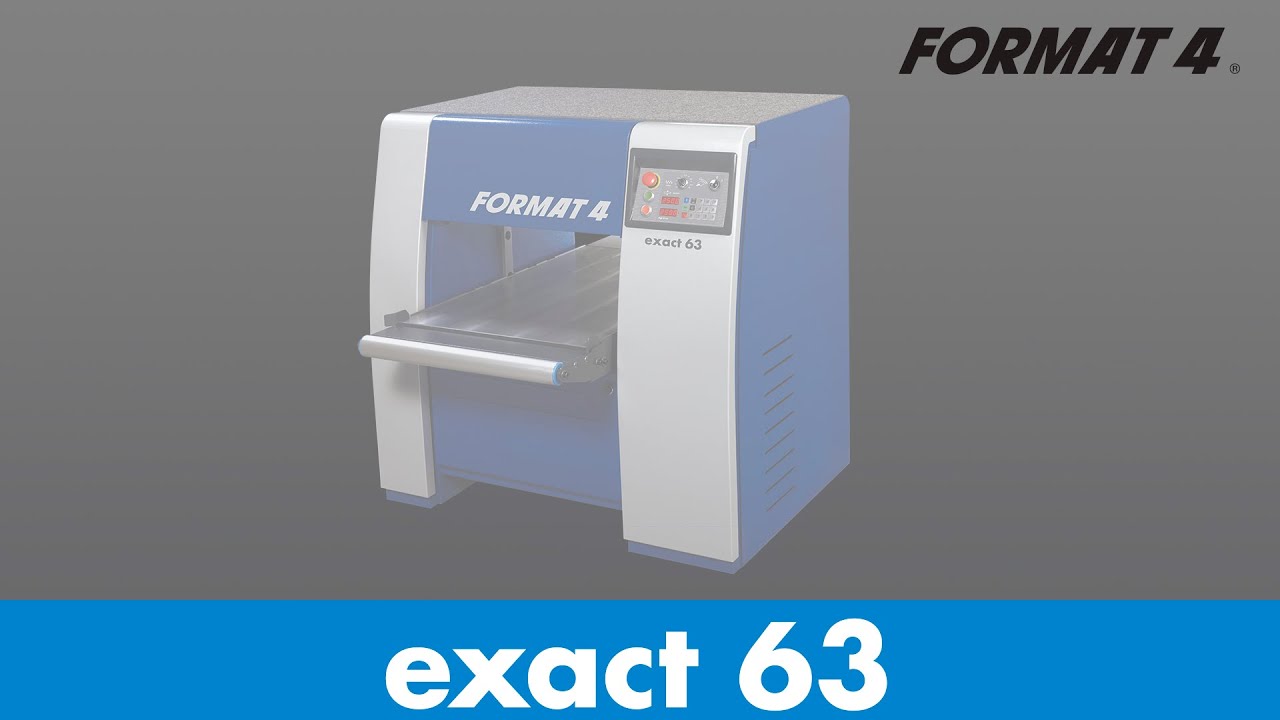

Thicknesser exact 63Format4Felder Group woodworking
  • Constantly high performance in industrial continuous operation
  • Customer specific optimised production solutions
  • Solid design with premium components
  • Many variations of specification packages with high-tech solutions
  • Complete engineering precision
  • Premium user comfort
  • Award winning design
  • Quality and precision from Austria
  • Uncompromised productivity
  • Perfect service package before, during and after the purchase
  • Tailor made financing solutions

Details

The planer with the Format4 System cutterblock, 120 mm knife flight and 4 knives delivers performance, precision and user-friendliness all-in-one.

- 4 knife cutterblock - Quick and effortless knife change - Self-aligning knives are perfectly set each and every time! - No resin buildup on the clamping bolts - Extremely quiet operation due to the enclosed design - Excellent durability of knife edges - Cost savings due to the 2 sided low cost knives

Exclusive for planer/thicknessers from the Felder Group. The Silent-Power® spiral cutterblock reduces noise emissions by more than half when planing. The continuous pulling cut ensures tear-free results when planing all types of wood. With this revolutionary new development from Format4 you are obtaining all of the advantages of a spiral cutterblock at considerably lower operating, investment and adjustment costs. The advantages of the Silent-Power® cutterblock at a glance ...

  • Extremely quiet, noise is reduced by half
  • Usable blade life twenty times longer than standard blades
  • Four highly precise cutting edges on each knife
  • Optimised chip extraction and reduced chip volume
  • Tear-free jointing results
  • Reduced power consumption when compared to similar systems
The infeed rollers are “float” mounted, and are thus lifted gently for large depths of cut. – Due to the positioning of the springs, the infeed rollers are lifted gently ensuring that constant pressure is applied to the workpiece. This is especially important when processing pieces with a large depth of cut.
Turn the control switch for quick adjustment; push the button for fine adjustment. The LED display clearly shows the actual value.
Enter required dimension, press start and the planer table will move accurately to the required position. Required and actual values are shown on LED displays. Additional optional functions, such as incremental position and four programmable thicknesser table positions are available.
Standard: Variable feed speed of between 5–20 m/min. Whether its a perfect finish or quick thickness calibration that is required, the correct feed speed can always be set to match.
4 trapezoidal spindles guarantee exact adjustment precision and ensure maximum planing bed load. Longitudinal guides integrated into the side of the machine chassis absorb the pressure that is put on the outfeed side and ensure that the planing table is guided with an accuracy of a tenth of a millimeter.
Optional integrated adjustable bed rollers are available for processing workpieces with high resin or moisture content.
For those customers that regularly process wet or resinous wood, we would recommend the option of the workpiece roller and lubrication unit on the infeed side of the machine
Increased comfort: Stable table extensions with workpiece roller on the outfeed side.
An optional 45 ¼” (1150 mm) height adjustable scissor table is available.

Technical data

Electrics

exact 63
001
3x 400 V motor voltage
exact 63
S
002
3x 230 V motor voltage
exact 63
W
004
50 Hz motor frequency
exact 63
S
005
60 Hz motor frequency
exact 63
W
007
Motor power 10 HP (7.35 KW) S6/40%
exact 63
S
008
Motor power 13.5 HP (10,0 KW) S6/40%
exact 63
O
009
Motor power 20 HP (15 KW) S6/40% (#001)
exact 63
O
10
Star-delta start
exact 63
S
12
Potential free contact
exact 63
O
13
Timer for operating hours
exact 63
O

Cutterblock

exact 63
39
4 knife system cutter block, knife length 635 mm, with self-adjusting cutterblock
exact 63
S
41
4-knife TERSA/MBM-system cutterblock, knife length 635 mm
exact 63
O
44
Silent-POWER spiral cutterblock
exact 63
O
-
Cutterblock diameter, mm
exact 63
120
-
Cutterblock speed 5000 rpm
exact 63
S
-
Number of knives - Silent-POWER spiral cutterblock
exact 63
95

Thicknesser and Feed Drive

exact 63
211
Workpiece roller on the infeed side for the 630 mm thicknesser table (!58)
exact 63
O
53
Electrical thicknesser table height control
exact 63
S
55
Electrical thicknesser table height control “Power-Drive” D1
exact 63
S
57
Variable speed drive 5–20 m/min
exact 63
S
58
Automatic lubricating of the thicknessing table infeed with workpiece roller on the infeed side
exact 63
O
59
Adjustable rollers below the thicknessing table, adjustment range 0–0.5 mm
exact 63
O
60
Position Control for thicknessing height “Digi-Drive” D1 with pre-setting of dimensions
exact 63
O
61
Rubber infeed roller Ø 85 mm (#63)
exact 63
O
62
Steel sectional infeed roller with spiral teeth grip
exact 63
O
63
Rubber outfeed roller Ø 85 mm
exact 63
O
64
Second steel outfeed roller with micro teeth Ø 85 mm (!63)
exact 63
O
65
Second rubber outfeed roller Ø 85 mm (#63)
exact 63
O
-
Maximum cutting depth in mm
exact 63
10
-
Min. workpiece length in mm
exact 63
270
-
Minimum/maximum thicknessing height in mm
exact 63
3-300
-
Pressure bars on the infeed side
exact 63
S
-
Spring loaded pressure bar on the outfeed side
exact 63
S
-
Steel infeed roller with spiral teeth grip Ø-85 mm
exact 63
S
-
Steel outfeed roller with micro teeth Ø 85 mm
exact 63
S
-
Thickness planing width in mm
exact 63
630
-
Thicknesser table size in mm
exact 63
630 x 1050

Important Accessories

exact 63
223
(2x 440-104) - Coupling system for table extension with F-Coupling (Outfeed side)
exact 63
O
224
Table extension with workpiece roller for the thicknesser 630 x 570 mm
exact 63
O
225
Scissor lifting table for mounting onto the thicknessing table
exact 63
O

General

exact 63
-
Dust extraction outlet (can be built onto the left or right side of the machine), mm
exact 63
160
-
Weight, kg (with average equipment)
exact 63
1050

Packaging

exact 63
222
IPPC packaging
exact 63
O

Transport

exact 63
221
Container packaging
exact 63
O
S ... Standard equipment O ... Option W ... Choice - ... not available
