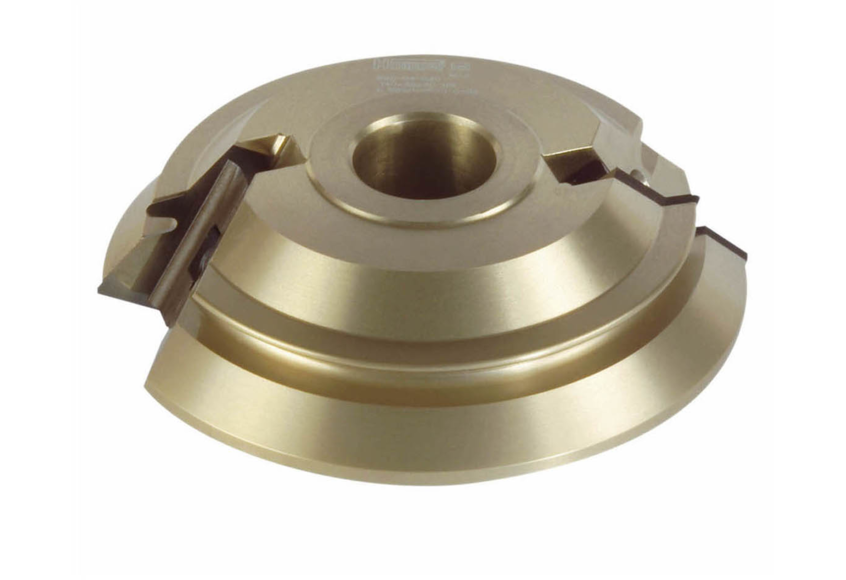

Mitre Glue Cutter 45° | Ø 140 mm | PM
Aluminium mitre glue cutter, with softline prong shaped profile knives Continue
excl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
Description
For glue cutting work in solid wood. Aluminium moulding tool, surface hard anodised.
For manual feed, chip thickness limited, low kickback.
Quality of the cutting edges
HW = tungsten carbide (old designation HM)
HS = high-alloy high-speed steel (high-performance steel)
SP = alloy tool steel (special steel)
Abbreviations
WM = Reversible knife (can be used on both sides)
PM = Profile knife

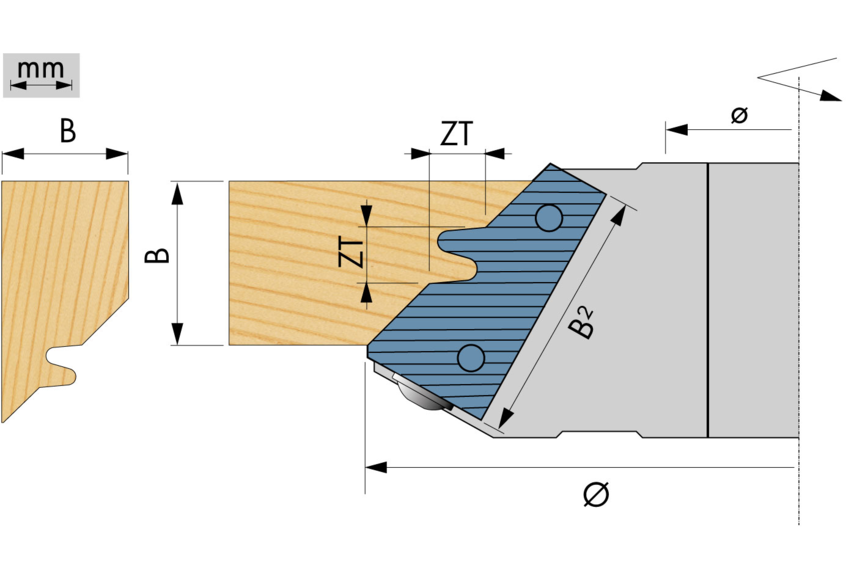

Technical information
Angle α [°] | 45 |
Bore Diameter [mm] | 30 |
Cutter Quality | HW |
Diameter [mm] | 140 |
Number of Softline Prongs [pcs] | 1 |
PM Main Cutters [pcs] | 2 |
Rip Capacity [mm] | 14-26 |
Tooth Spacing [mm] | 9 |
Width 2 [mm] | 43 |
Downloads
- Technical Drawing (PDF | 165.24 KB)
Matching articles
Longitudinal beam for Plano Vertical Glue Press
12.1.030 | Press Clamps
Single components for the Plano modular vertrical glue press system
continue readingexcl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
BESSEY® Screw Clamp with Wooden Handle
12.0.032 | Opening width 400 mm | Throat depth 120 mm | 1 pieces
With clamping arm made of high-quality malleable cast iron, profile rail grooved on both sides and a clamping force of up to 5500 N
continue readingexcl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
BESSEY® Screw Clamp with Wooden Handle
12.0.033 | Opening width 500 mm | Throat depth 120 mm | 1 pieces
With clamping arm made of high-quality malleable cast iron, profile rail grooved on both sides and a clamping force of up to 5500 N
continue readingexcl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
BESSEY® Heavy Duty Malleable Screw Clamp
12.0.035S | Opening width 1000 mm | 1 pieces
Reinforced design for higher clamping force up to 6500 N and wider openings widths
continue readingexcl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
BESSEY® Screw Clamp with Wooden Handle
12.0.036 | Opening width 1250 mm | Throat depth 120 mm | 1 pieces
With clamping arm made of high-quality malleable cast iron, profile rail grooved on both sides and a clamping force of up to 5500 N
continue readingexcl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
Glue Remover and Press Cleaner
10.0.020 | Spray Bottle | 1 piece
Ideal for removing glue stains on decorative chipboard or laminate panels
continue readingexcl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
This might also be of interest to you

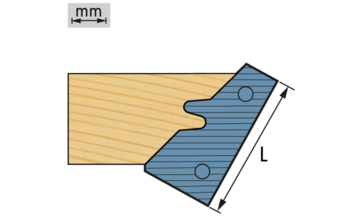

Hammer Replacement Knives
