Glue Joint Cutter | Ø 100 mm | PM

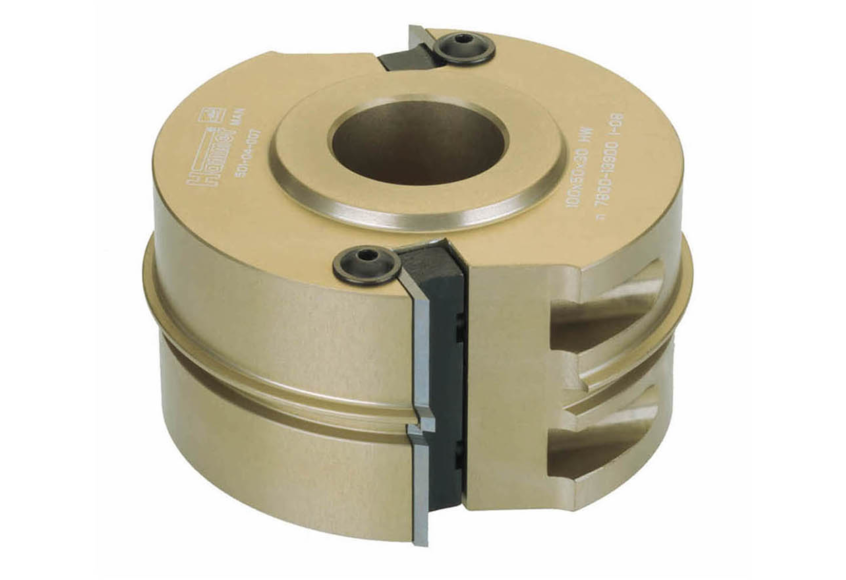

Aluminium glue joint cutter, with profile knives in trapezoidal prong shape Continue
excl. VAT , without shipping costs
incl. 20% VAT , without shipping costs
Description
For glue cutting work in solid wood. Aluminium moulding tool, surface hard anodised.
For manual feed, chip thickness limited, low kickback.
Quality of the cutting edges
HW = tungsten carbide (old designation HM)
HS = high-alloy high-speed steel (high-performance steel)
SP = alloy tool steel (special steel)
Abbreviations
WM = Reversible knife (can be used on both sides)
PM = Profile knife
Technical information
Bore Diameter [mm] | 30 |
Cutter Quality | HW |
Diameter [mm] | 100 |
PM Main Cutters [pcs] | 2 |
Rip Capacity [mm] | 50 |
Trapezoidal tines [pcs] | 1 |
Downloads

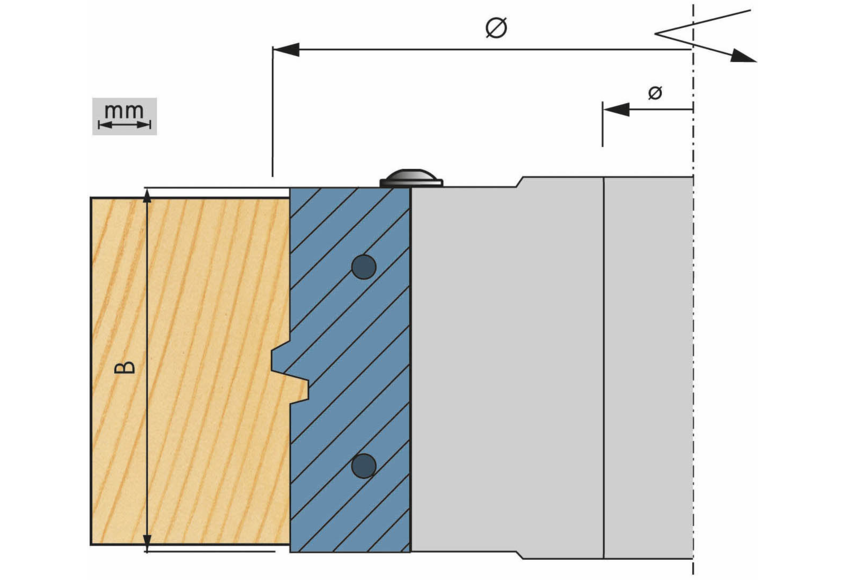

- Technical Drawing (PDF | 160.26 KB)
