Komplet bearbejdning indenfor på kun 5 m²
Creator 950 i omfangsrige udstyrsvarianter – din CNC-maskine
til individuelle udfordringer.
Effektiv CNC-bearbejdning til en fair pris, den sætning står i fokus i creator-maskinrækken. Alle modeller har attraktivt udstyr med moderne CNC-teknologi og kan tilpasses specifikke krav med individuelt udstyr.
Creator er ikke kun en enkel og sikker investering i CNC-verden men kan også ses som en aflastning for dit CNC-bearbejdningscenter.
Dine fordele kort fortalt:
… FORMAT4 Premium-maskiner til premium-krav
En 12 kW hovedspindel giver rigtig høj ydelse og gør det muligt at bearbejde forskellige materialer. Den seriemæssige DH17 borehoved sørger for bearbejdning af hele emnet. Som ekstraudstyr kan maskinen forsynes med et DH25 borehoved
The fast and intuitively controllable programming is one of the key technologies at Format-4. As a result, the cost-effective use of your creator 950 can be calculated from lot size 1. With the modern Format-4 software technology, you can create CNC machining programs simply and quickly. The graphical user interface gives you the three-dimensional representation of each input. This gives you a visual feedback on all inputs at all times.
The 4 position tool changer ensures fast changing of tools and aggregates.
Fortsæt med at være fleksibel i din anvendelse med standardmæssig brug af aggregater. Dertil har fræsespidlen på creator 950-serien et tryklufttilslutningssted så aggregatet under bearbejdningen har en blæsefunktion. Fræserens standtid kan derfor forhøjes ligesom fjernelsen af spåner i not kan sikres.
The simple handling of longer workpieces is facilitated by a second row of stops.
The horizontal processing concept of the creator 950 convinces at first glance. Even the heaviest workpieces can be processed easily in single person operation. Common transport supports such as the height-adjustable work table, Felder FAT 300/300 S/500 S, facilitate the material handling on both sides of the machine.
The creator 950 is equipped with a phenol resin table as standard. For sensitive surfaces, the air cushion table guarantees an absolutely damage free movement of the material.
Workpieces can be unloaded at the rear. Optimally integrate the creator into your production flow.
As an option the roller-table extensionis available which can also be equipped with an air cushion and offers an improved handling of larger format workpieces over 1400 mm length.
Det dobbelte klammedrev er på X-aksen. Klammerne bliver drevet og ført enkeltvis over en hvælvet tandstang. Med "Varius Drive" kan længere emner dynamisk omspændes for at kunne bearbejde disse.
Tilkoblede vertikalruller garanterer præcise boringer og præcis fræsebearbejdning i dybden.
The creator 950 regulates the feed speed variably.
Den automatiske længdemåler udleder emnelængden milimeterpræcist direkte til maskinen. Målingsfejl på maskinen er dermed udelukket.
The dowel feed unit automatically and precisely inserts the dowels into the workpiece in both directions of the x-axis.
Fast set-up time of the mobile dowel station.
Automatisk emnemåling i X- og Y-retningen.
If the machine is going to be processing abrasive materials, then there is an option to have all the guides equipped with additional seals.
With the automatic control of the extraction connection, the full extraction capacity is moved between the drilling head and main spindle, depending on what is being used at the time.

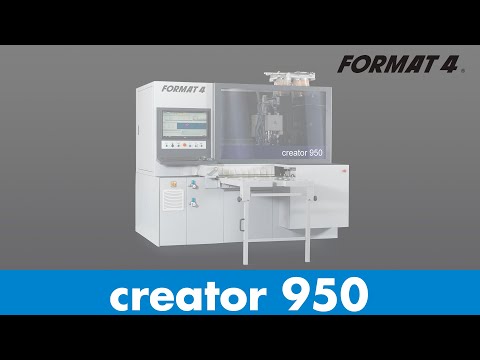

Format 4 creator 950 in action
The IWF Challengers Distinguished Achievement Award® 2018 for outstanding companies who drive forward industrial progress through the development of innovative technologies. goes to the FORMAT-4 CNC machining center creator 950. Tamara Felder and Ruan Du Toit with a special thank to the product team and to all people who were from the very first beginning involved into the project.
