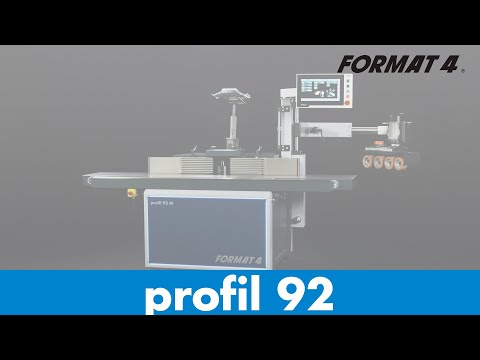

Setup times are a thing of the past: Format4 profile 92 M e-motion - the spindle moulder with double swivel and HSK 63F  tool quick-change system

The new 92 M table spindle moulder is the Format4 premium model for maximum operating comfort and guarantees absolute efficiency with minimal set-up times when milling. The sophisticated electro-spindle is equipped with an HSK 63F interface for automatic tool quick-change system with pneumatic clamping. The tilting range of +/- 46 degrees allows unlimited processing possibilities. The rotation speed, spindle height and angle as well as the spindle moulder fence and table opening can be adjusted intuitively and precisely with the self-explanatory e-motion control in the 15" touchscreen control panel. The memory for tools, spindles and mortising programs enable perfect repeatability and short set-up times.

Controlled, eccentric inserts ensure maximum table supporting surface and considerably reduce the setting effort especially when tilting the spindle. The newly developed heavy-duty precision spindle moulder fence has two controlled axes for precise depth adjustment of the entire stop and in addition, an independent depth positioning of the right-hand, feeding jaw. Furthermore, the fence can be completely swivelled away from the work area for convenient access during curved moulding operations. Optionally, the profile 92 M can also be equipped with an electrically height-adjustable power feeder.

... FORMAT4 Premium machines for premium requirements

• Constantly high performance in industrial continuous operation
• Customer specific optimised production solutions
• Solid design with premium components
• Many variations of specification packages with high-tech solutions
• Complete engineering precision
• Premium user comfort
• Award winning design
• Quality and precision from Austria
• Uncompromised productivity
• Perfect service package before, during and after the purchase
• Tailor made financing solutions
