Cutterblock planing head
A cutterblock planing head is available as an option, as the first processing unit for maximum cutting performance. Activation and deactivation is carried out from the central control panel.
finish 1353 modular
Wide Belt Sander
The most important highlights at a glance
A Touch-screen control is available as an option for maximum operating comfort. The clearly structured and intuitive control panel provides maximum productivity. The machine functions that are available are shown graphically and controlled using high quality switches. The infeed thickness is clearly shown on the digital display and by using the push button can be adjusted with an accuracy of 0.1 of a millimetre.
Wide belt sander with cutterblock planing head

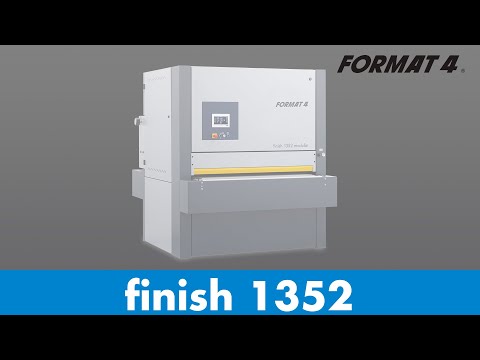

The new finish 1352 modular and 1353 modular wide belt sanders impress through exceptional flexibility. Either as a 2 or 3 belt machine – you can decide the individual equipment and configuration of the processing units. The free aggregate configuration option enables the optimal adaption to your requirements which ensures maximum efficiency and maximum time saving.
New:
- Cutterblock planer head with 1350 mm processing width positioned on the machine infeed side (option)
- Simple operation with innovative control concept
- Convincing machine details for effortless, tool-free handling and quick changeover
... FORMAT4 Premium machines for premium requirements
- Constantly high performance in industrial continuous operation
- Customer specific optimised production solutions
- Solid design with premium components
- Many variations of specification packages with high-tech solutions
- Complete engineering precision
- Premium user comfort
- Award winning design
- Quality and precision from Austria
- Uncompromised productivity
- Perfect service package before, during and after the purchase
- CE + GS dust certified
- Tailor made financing solutions
Feed table
As standard, the feed speed can be continuously adjusted from the control panel between 2.8–20 m/min
Contact roller aggregate
A profiled contact roller (D = 180mm and 85° shore) guarantees maximum accuracy with minimum tolerance when calibrating.
Sanding pad aggregate
The electro-pneumatic sanding pad is lowered on to the workpiece at the exact correct height for the sanding process. This prevents veneered surfaces from being sanded through, at the front and rear.
Combination sanding unit
The combination unit with a roller diameter of 140 mm is used for the calibration of solid wood. The electro-pneumatic sanding pad is lowered on to the workpiece at the exact correct height for the sanding process. This prevents veneered surfaces from being sanded through, at the front and rear.
Manual control panel
The control panel included as standard enables a simple and quick operation. A selector switch for the aggregate selection, an ammeter for the load display, a display for setting the sanding height ensure optimal operating comfort.
Touch-screen control
A Touch-screen control is available as an option for maximum operating comfort. The clearly structured and intuitive control panel provides maximum productivity. The machine functions that are available are shown graphically and controlled using high quality switches. The infeed thickness is clearly shown on the digital display and by using the push button can be adjusted with an accuracy of 0.1 of a millimetre.
Brushing equipment
As an option, on the delivery side of the machine, it is possible to set up a brushing facility. Different brushes can be inserted and their task is to clean, polish or structure the workpiece surface.
Vacuum table
The wide belt sander can also be equipped with a vacuum table which is particularly useful for smooth, small or thinner workpieces. The vacuum is created by a high pressure fan which is coupled with the feed. The vacuum holds the workpiece through the holes in the vacuum feed belt.
Roller table extensions
As an option, we are able to equip your Format-4 wide belt sander with roller extension tables both on the infeed and outfeed side.
Wireless thickness measurement
Automatic thickness measurement facilitates adjustment of the machine to the desired workpiece thickness. The workpiece is measured directly on the machine without additional measuring devices being required. The required sanding depth can be set in + or - using the adjustment wheel. This wireless option makes it possible to measure the workpiece in front of the machine. The thickness is transferred wirelessly to the machine.
Pressure shoe
These can be added to every sanding aggregate and enable a uniform pressure on the workpiece against the feed table, which is particularly important for thin workpieces. Additionally it also reduces the minimum length of the workpiece that can be processed.
Details & Accessories
Cutterblock planing head
more
Feed table
more
Contact roller aggregate
more
Sanding pad aggregate
more
Combination sanding unit
more
Manual control panel
more
Touch-screen control
more
Brushing equipment
more
Vacuum table
more
Roller table extensions
more
Wireless thickness measurement
more
Pressure shoe
more
Equipment & Specifications
Electrics
001
3x 400 V motor voltage, 50 Hz motor frequency
Standard equipment
006
3x 230 V motor voltage, 60 Hz motor frequency
Option
26
3x 208 V motor voltage, 60 Hz motor frequency
Optional equipment at no extra cost
10
Star-delta start
Standard equipment
CE safety regulations
Standard equipment
Feeder table
Electrical height control of the feed table incl. fine-adjustment control from the control panel
Standard equipment
Variable feed speed adjustment from 2.8-20 m/min adjusted from the control panel using an inverter
Standard equipment
Hand protection and excessively thick workpiece protection
Standard equipment
Conveyor belt without a joint with honeycomb structure
Standard equipment
Automatic feed belt centring
Standard equipment
78
Vacuum table with 2,2 kW (3 PS) suction fan integrated into the machine chassis (!79)
Option
79
Vacuum table for connection to workshop dust extraction, without fan (!78)
Option
80
Roller table extension on the infeed side, L=300 mm
Option
81
Roller table extension on the outfeed side, L=300 mm
Option
82
Tracer unit for work piece thickness on the feed table (!83)
Option
83
automatic thickness measurement with wireless connection (!82 / #91 / #92 /#59)
Option
Control Systems
Manual control panel
Standard equipment
Ammeter for aggregate load monitoring
Standard equipment
59
Control panel with 7” colour touch screen; 100 program memory spaces; Maintenance intervals; Plain text error messages; Ammeter for aggregate load monitoring (!91 / !92 / #83)
Option
1. Contact-roller unit
Rubber, grooved contact roller with 85° shore and 180 mm diameter
Standard equipment
Manual grain compensation
Standard equipment
Mechanically pre-stressed rubber pressure rollers
Standard equipment
Sanding belt is oscillated electro-pneumatically
Standard equipment
Electronic run-off protection for the sanding belt
Standard equipment
Cutting speed 18 m/sec
Standard equipment
Sanding belt 1370 x 2200 (width x length)
Standard equipment
2. Contact-roller unit
Rubber, grooved contact roller with 65° shore and 180 mm diameter
Standard equipment
Manual grain compensation
Standard equipment
Mechanically pre-stressed rubber pressure rollers
Standard equipment
Sanding belt is oscillated electro-pneumatically
Standard equipment
Electronic run-off protection for the sanding belt
Standard equipment
Cutting speed 18 m/sec
Standard equipment
Sanding belt 1370 x 2200 (width x length)
Standard equipment
3. Contact-roller unit
Rubber, grooved contact roller with 45° shore and 140 mm diameter
Standard equipment
Manual grain compensation
Standard equipment
Mechanically pre-stressed rubber pressure rollers
Standard equipment
Electro-pneumatic oscillation of the sanding belt
Standard equipment
Electrical sanding belt positioning safeguard
Standard equipment
Cutting speed 18 m/sec
Standard equipment
Sanding belt 1370 x 2200mm (width/length)
Standard equipment
Aggregate configuration instead of 1st contact roller aggregate
20
D=140mm planing aggregate; incl. 380 individually replaceable blades (14*14*2mm) with 4 cutting edges; segmented pressure shoe with 24 segments; pneumatic on and off switch from the control panel; 15kW (20HP) motor incl. automatic SD start; (Sanding height 5–170 mm)
Option
21
Comfort cutterblock extraction instead of maintenance access on the front of the machine
Option
Aggregate configuration instead of 2nd contact roller aggregate
30
Sanding pad aggregate including electro-pneumatic sanding pad EP; (!40 / #30A)
Option
Aggregate configuration instead of 3rd contact roller aggregate
30A
Sanding pad aggregate including electro-pneumatic sanding pad EP; (!40 / #30)
Option
40
Combination aggregate including rubber, grooved contact roller with 45° shore and 140 mm diameter; electro-pneumatic sanding pad EP; (!30 / !30A)
Option
Aggregate options
45
1st sanding roller in steel instead of 85° shore (!20)
Option
46
2nd sanding roller in steel instead of 65° shore (!30)
Option
47
2nd sanding roller with D=250mm instead of 180mm (!30 / !40)
Option
48
3rd sanding roller with D=250mm instead of 140mm (!40 / !30A)
Option
49
Activation and deactivation control of the first contact roller from the control panel (!20)
Option
50
Activation and deactivation control of the second contact roller from the control panel (!30)
Option
51
Activation and deactivation control of the third contact roller from the control panel (!30A)
Option
52
Pressure shoe pneumatically pre-tensioned before the 1st sanding aggregate (!20)
Option
53
Pressure shoe mechanically pre-tensioned between the 1st and 2nd sanding aggregate
Option
54
Pressure shoe mechanically pre-tensioned between the 2nd and 3rd sanding aggregate
Option
55
Pressure shoe mechanically pre-tensioned after the 3rd sanding aggregate
Option
56
1st cleaning air jets for the sanding aggregate with time control (!20)
Option
57
2nd cleaning air jets for the sanding aggregate with time control
Option
58
3rd cleaning air jets for the sanding aggregate with time control
Option
sanding cushion
Synchronisation with any feed speed pf the EP sanding shoe
Standard equipment
91
Workpiece recognition sensor with 25 segments, 55 mm segment width; Segmented, electro-pneumatic sanding pad ESC; 55 mm segment width, touch screen (!92)
Option
92
Workpiece recognition sensor with 50 segments; Segmented, electro-pneumatic sanding pad ESC; 27 mm segment width, touch screen (!91)
Option
93
Additional segmented, electro-pneumatic sanding pad ESC, 55 mm segment width (#91 / #30A / #40 / !94)
Option
94
Additional segmented, electro-pneumatic sanding pad ESC, 27 mm segment width (#91 / #30A / #40 / !93)
Option
Engines
2 x 11 kW (15 HP) motors with automatic star delta start
Standard equipment
61
1st motor 15.0 kW (20.0 HP) sanding belt motor instead of 11.0 kW (!20 / !62)
Option
62
1st motor 18.5 kW (25.0 HP) sanding belt motor instead of 11.0 kW (!61 / !20)
Option
63
2nd motor 15.0 kW (20.0 HP) sanding belt motor (!65A)
Option
64
3rd sanding belt motor 11.0 kW (15.0 HP)
Option
65
3rd sanding belt motor 15.0 kW (20.0 HP)
Option
66
Softstart for 11kW motor (!20 / !61/ !62 / !63 / 67!)
Option
67
Softstart for 15kW motor (!66 / !62 / !65A)
Option
68
Variable cutting speed between 2.4 - 19m/sec for 11kW motor power (!20 / !61/!62 / !63 / !67)
Option
69
Variable cutting speed between 2.4–19 m/sec; for 15.0 kW motor power (!62/ !65A / !66 )
Option
70
Variable cutting speed between 2.4–19 m/sec; for 18.5 kW motor power (!61 / !65A / !63 / !66 / !67)
Option
Finishing units
71
Brush unit at outfeed end, Ø 150 mm, incl. brush (!72 / !73)
Option
72
Brush unit “Scotch Brite” at outfeed end, Ø 150 mm, incl. brush (!71 / !73)
Option
73
Tynex structuring brush unit 11kW (15 hp) with structuring brush K 60 Ø 200mm (!71 / !72)
Option
74
Quick exchange system for brushing device (#73)
Option
75
Additional Tampico cleaning brush Ø 200 mm (#74)
Option
76
Additional Scotch-Brite brush Ø 200 mm (#74)
Option
77
UV lamp on the outfeed side of the machine
Option
Important Accessories
EM-COLT14X14X2 - Indexable insert 4x14x2 for cutterblock (390 pieces required for full assembly)
Option
General
Sanding width 1350 mm
Standard equipment
Sanding height 3–170 mm
Standard equipment
Minimum workpiece length contact roller aggregate (mm)
220
Min. workpiece length for sanding pad or combination sanding unit (mm)
370
Extraction connection Ø in mm
2x 200
Min. air pressure (bar)
6
Dimensions mm (L x W x H)
2540 x 2050 x 2020
Weight, kg (with average equipment)
2300
Total power requirement without additional options
24,5 kW
Transport
221
Container packaging
Standard equipment
