profit H200R Constantly high performance in industrial continuous operation

รับใบเสนอราคาฟรี

CNC Machining Centre

profit H200R

  • Small footprint – minimal space requirement!
  • Drawing = programming, intuitive operating software
  • Software including 3D cabinet software “F4-Design” for presentation, parts list and connection to the machine
  • Gantry design, solid construction for maximum performance
  • The drilling head covers the whole working field
  • High quality dual circuit vacuum clamping system with 100 mm vacuum pod height
  • F4®Solutionsready
more
CNC machining centre profit H200 Format4 Felder Group woodworking

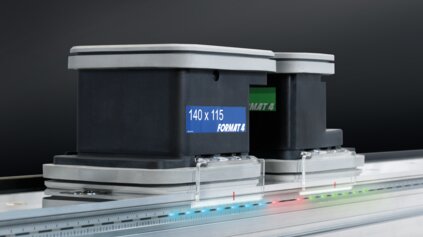

lightPos

Vacuum pods and consoles are positioned visually, quickly and precisely with lightPos. More than 6000 LEDs indicate the suction cup
size, position, orientation as well as the console positions down to the millimetre.

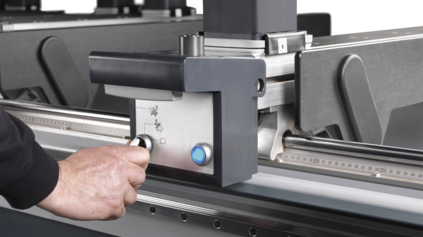

Panel activation

Panel activation – The ability to be able to deactivate the consoles individually makes it possible to remove waste material without having to release the vacuum holding the workpiece.

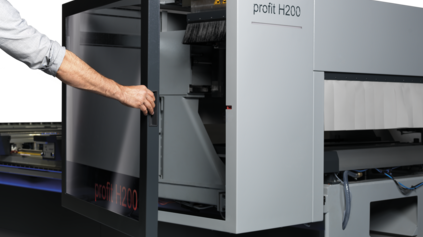

Maintenance opening

For quick access to change the drill or maintenance work, the hood can be easily opened on all CNC machining centres.

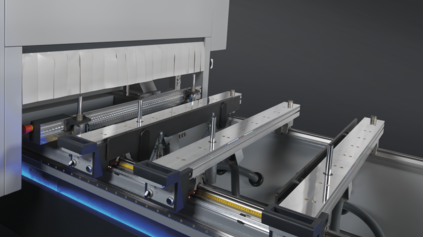

Rows of Stops

The solid cylinder stops allow flexible component referencing of small, medium and large workpieces on the work area.

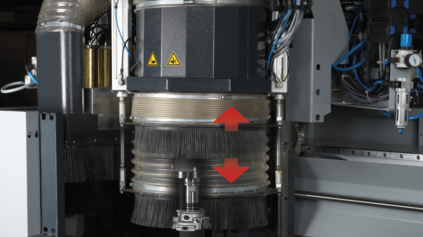

Controlled extraction hood

The extraction hood positions itself fully automatically to one of 3 positions in relation to the workpiece height which signifi cantly reduces the dust and noise emissions.

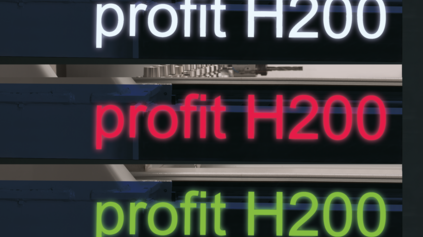

Status indicator

The changing colours of the innovative lighting system display the various machine statuses. This makes it possible to keep up-to-date on the current status of your profi t CNC Machining Centre.
