CNC Machining Centre profit 60NZ

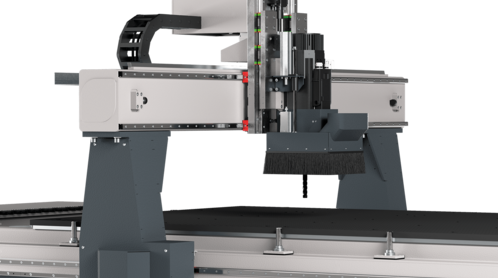

The dual side driven portal design (‘gantry’) guarantees maximum precision and repeatability of your machining operations.

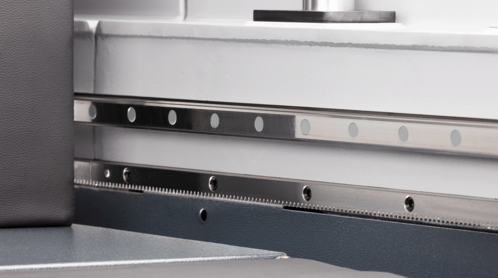

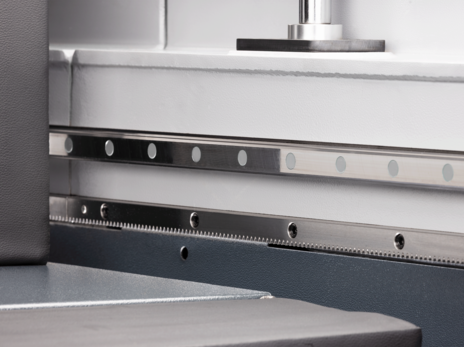

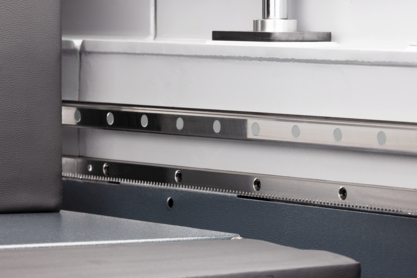

The rack and pinion drive in the X and Y direction ensures maximum traverse speeds for the shortest processing times and tool changing times.

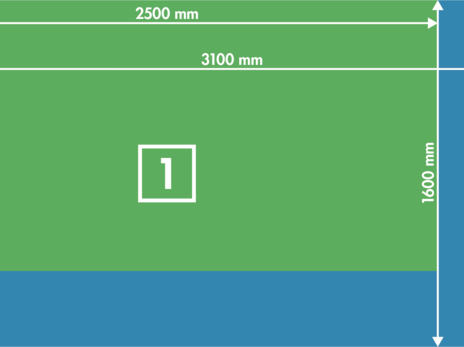

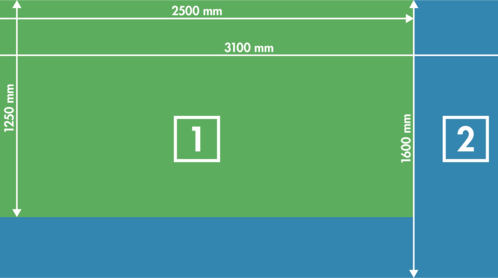

The machine's Smart Zoning feature enables fast processing of multiple panel formats ranging from 3090 mm x 1530 mm 5"x10" to 2500 mm x 1250 mm 4"x8". It is possible to quickly change from one panel format to another.

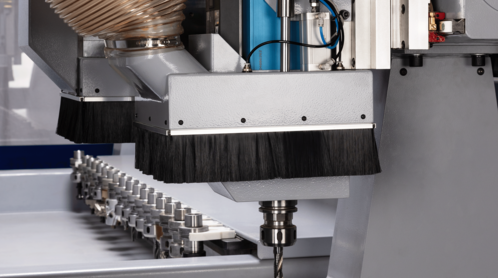

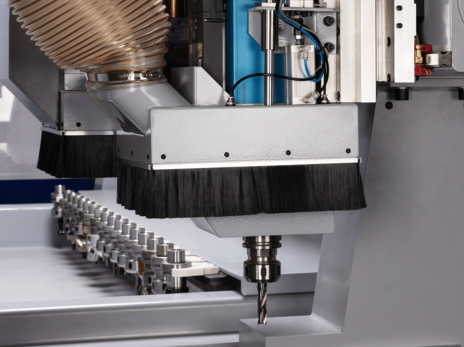

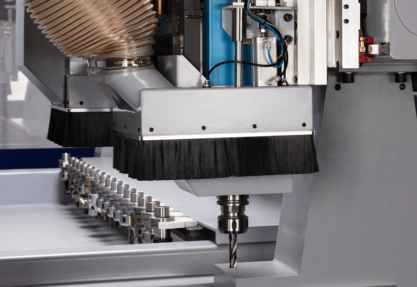

With a motor power of 9 kW and up to 24,000 rpm, the main motor is controlled using an inverter and is attached directly to the Z axis. Dual linear guides guarantee highly precise vertical guiding. The main motor is positioned using ground ball screws. The HSK F63 tool clamping is done automatically. The clamping of the tool is checked using sensors, which then confirm that it is safe to start the operation. The tool holder is cleaned pneumatically.

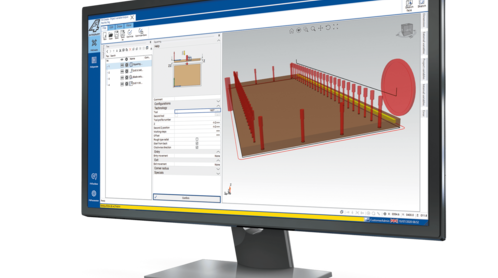

For the highest demands, all inclusive - tool library, programming section and an operator control panel on the machine with a consistent and intuitive user interface. F4®Integrate is a software developed by  Format4® Developed from practical experience for practical use in cooperation with our CNC customers, F4®Integrate meets the highest demands in modern CNC machining.

Enjoy the comfort of a state-of-the-art and well-coordinated user interface. Tool library (F4Toolbox), programming section (CAM area with integrated CAD area, F4Create) and machine operation control (F4Operate) all packed into just one single screen, with a consistent and intuitive user interface.

F4Integrate is based on G-Code, so external industry programs can be easily connected and the transfer of programs smoothly organised.

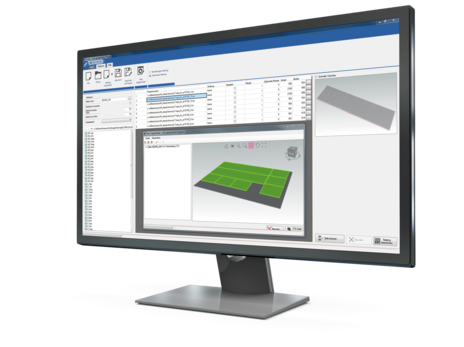

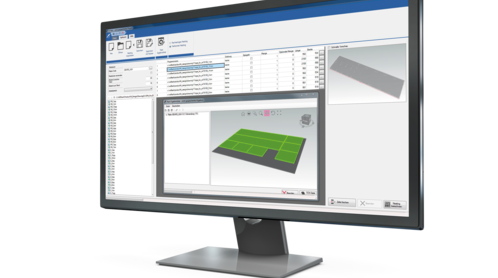

Saving space, material and time the CNC cutting optimization software F4®Nest interlaces furniture and other milled parts. The result will be presented in 3D. Cutting of panel material in the nesting process is efficient, profitable and reduces cut-off.

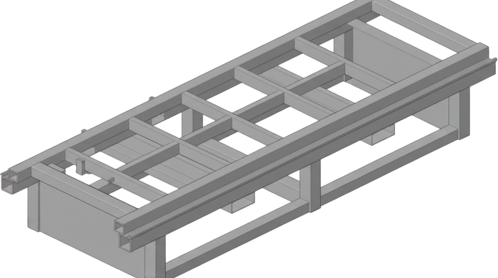

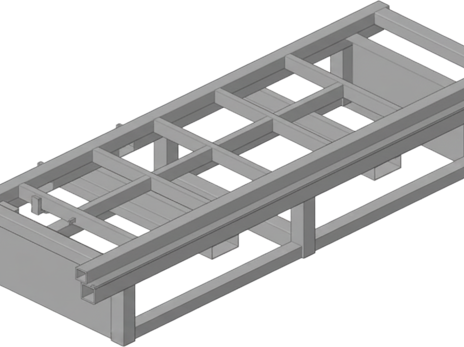

Nesting machining center featuring a solid, vibration-optimized machine frame. The electro-welded steel construction, with its specially designed ribbing, ensures exceptional stability and minimizes vibrations even at high processing speeds.

This results in consistently precise routing patterns, high process reliability, and reproducible results – the foundation for powerful and durable nesting operations in industrial applications.
