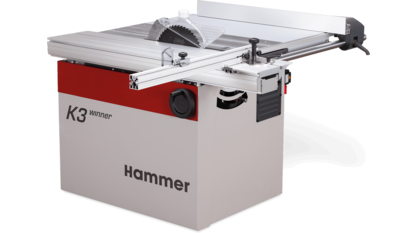

The precision circular saw for the discerning woodworker

Exact rip cuts as well as precise cross, mitre and format cuts with the smooth operation of the format sliding table. These are the qualities that discerning woodworkers like you expect in a precision circular saw.

Above and beyond that, the K3 winner gives you features that you will not find in similar types of machines, e.g. the precision circular saw unit, the cross-cut stop with the scale set at an angle, a magnifying lens to assist with making exact adjustments and the rip fence with fine adjustment system, guided on a large round bar.

The K3 winner is the choice for discerning woodworkers.

Hammer. Affordable functionality and reliability

Since 1997 Hammer has been producing high quality yet affordable woodworking machines for do-it-yourselfers and small businesses. Robust, durable, space-saving and precise in its operation. Quality products that simply make woodworking fun.

The most important highlights at a glance

... why you should choose a Hammer

Excellent value for money
Decision making reliability for many years to come
Innovative machine technology
Solid cast iron tables and units
High quality, unique detail solutions as part of the standard package
Top quality manufacturing with strict quality guidelines
Remarkably user friendly
Classic design
Quality and precision from Austria
Compact functionality
Mobile as an option
Minimal space requirement
Quickest changeover times

Details

HAMMER - Stability, functionality and reliability from Austria - Hammer woodworking machines are a top-quality product from the Felder-Group Since 1997 Hammer have been producing high quality yet affordable woodworking machines for smaller workshops and businesses. The models have been specifically designed for this customer group and are now available in the basic, winner and perform configuration, offering price optimised solutions for every requirement. Decades of experience building machines, Austrian craftsmanship, strict quality standards and tried and tested Felder system solutions, guarantee excellent woodworking machines, the best operating results and customer satisfaction for years to come. From the passionate woodworker to the business user with high demands, with machines from Hammer you are guaranteed reliability and precise woodworking.

The power transmission of the motor power to the saw arbour or moulder spindle is achieved using large dimensioned Poly-V belts and counter surface. The surface area which is increased through the V shape of the drive belt on the pulley increases the grip and ensures an almost perfect transmission of power from the motor to the saw arbour and moulder spindle.

The Hammer saw aggregate impresses with smoothness, precision and extreme user friendliness. The large cutting height of 103 mm leaves nothing to be desired. Saw blades with up to 315 mm diameter can be lowered completely below the level of the saw table. The saw blade is simple to access and can be changed with ease.

The blade can be tilted to any position between 90° and 45° and guarantees precise mitre cuts. End stops at the 90° and 45° position ensure the exact positioning of the settings, a large dimensioned scale makes the exact setting and reading of the value easy.

The scoring unit ensures chip free cuts in laminated workpieces. The cutting width of the two part scoring blade can be adjusted accurately to the tooth width of the main saw blade using a ring set. The drive of the scoring blade is done mechanically, with it rotating in the opposite direction to the main saw blade.

Every hammer panel saw can be equipped with a prepartion for the use of specialised dado tooling. The dado tool can be fitted to the saw arbour and makes it possible to make various width grooves, tenons and slots of between 8 and 19.5 mm in width.

The cutting width on the saw table can be adjusted to any position between 0 and 800 mm (0-1250 mm). The scale that is integrated into the rail ensures the exact setting of the aluminium rip fence to the position required. The aluminium fence can be positioned in any position along the cutting direction - when processing long workpieces you get a better feed of the workpiece and ensure a high processing precision. When carrying out mitre cuts with a tilted saw blade it is possible to move the fence from the horizontal to the flat position. The narrow fence edge then enables the rip cutting of very thin workpieces. An even more precise, tenth of a millimetre accurate setting of the aluminium rip fence can be achieved with the optional Hammer fine adjustment.

The professional rip fence is guided on a large round bar; it runs smoothly and is simple to use. You can quickly and precisely set the required measurements with the help of the fine adjustment system.

The aluminium sliding table gives the precision from the first cut. Guaranteed Hammer stability and precision: the strong ribbed, milled and anodised aluminium hollow-chamber profile of the sliding table in combination with the high quality guiding system ensures maximum accuracy and precision!

The outrigger table provides additional surface support and precision when processing large dimensioned and heavy workpieces. In combination with a 900 or 1,300 aluminium crosscut fence and the crosscut extension your Hammer with outrigger table becomes a complete, large panel saw.

Angles at 5 degree intervals and at 22.5° may be cut using the index locating pins.

Adjustable to any position between +45° and –45°, the crosscut fence ensures precise angled and mitre cuts. A scale integrated into the aluminium sliding table makes it easy to set precisely. The end stop for the 90° position guarantees absolute precision with repeat settings. The scale on the 900 mm long aluminium crosscut fence is angled towards the operator and makes it easy to comfortably read the exact setting. In combination with the crosscut stop with integrated magnifying glass, highly precise settings and as such absolutely exact results are guaranteed.

Processing long and heavy workpieces without assistance - no problem with a Hammer! The Hammer table extension system has proven itself thousandfold, the world over. In just a few steps and without tools the table extensions can be mounted to every Hammer machine. The surface can be extended by 400 or 800 mm on each side of the working table.


Hammer woodworking machines are an absolute spatial wonder. The efficient machine design of a Hammer means that space can be found in even the smallest of workshops. As an option a rolling carriage can be fitted to every Hammer, offering mobility and freeing up additional space.

Technology Data

Electrics

K3 winner

001

3x 400 V motor voltage

S

002

3x 230 V motor voltage

W

003

1x 230 V motor voltage, motor 4.0 HP (3.0 kW) S6/40%

O

004

50 Hz motor frequency

S

005

60 Hz motor frequency

W

007

Motor 4.0 HP (3.0 kW) S6/40%

S

008

Motor 5.5 HP (4.0 kW) S6/40%

O

28

Additional emergency stop

O

Saw Unit

K3 winner

-

Main sawblade dia. 250–315 mm, Saw unit speed 4800 rpm

S

-

Saw blade tilting from 90°–45°, Max. cutting height 103 mm

S

-

Saw-spindle moulder table in mm

950 x 385 mm

76

Rip capacity continuously adjustable

0–800 mm

78

Cutting width 31” (800 mm) with full table

O

77

Rip capacity continuously adjustable 49” (1250 mm)

O

82

Preparation for Dado tooling up to ¾” (19.5 mm) width

O

86

Cast iron professional rip fence, rip capacity

S

88

Fine adjustment for professional rip fence

O

74

Mechanical scoring unit, scoring blade dia. 3 ⅛” (80 mm)

O

Anodised Format Sliding Table

K3 winner

131

Format sliding table 1250 mm, cutting length 1300 mm*

S

132

Format sliding table 2000 mm(78"), cutting length 2050 mm(80")*

O

Outrigger Tables and Crosscut Fences

K3 winner

160

Outrigger table 1100

O

163

Precision mitre guide index system (#160/161)

O

164

Crosscut fence 900 mm for all sliding table

S

165

Crosscut fence extension 29 ½” (750 mm) for crosscut fence (#164)

O

166

Crosscut fence 51” (1300 mm) for outrigger 1100 (#160)

O

168

Crosscut fence 51” (1300 mm) for outrigger table instead of crosscut fence 35” (900 mm) (#160)

O

General

K3 winner

-

Weight, kg (with average equipment)

350

Important Accessories

K3 winner

210

Rolling carriage without lifting bar

O

211

Lifting bar

O

212

Tilt-away mount for power feeders

O

221

Preparation for Container Transport

O

223

Heat treated palette according to IPPC regulations

O

-

.SET-HA20-1 - SET: Display clock with system hand wheel - (for circular saw unit)

O

Legend S ... Standard equipment O ... Option W ... Choice - ... not available
