Universal Cutter including profile knives + limiters

12 knives and limiters | ø 30 mm | Width 40 mmArt. No. 04.0.072

Universal cutter made of steel for 40 mm profile knives, including 12 pairs of profile knives + limiters Continue

₹58,725.00

excl. GST , without shipping costs

₹69,295.50

incl. 18% GST , without shipping costs

Questions about this article? Send e-mail as soon as available No more notification

Description

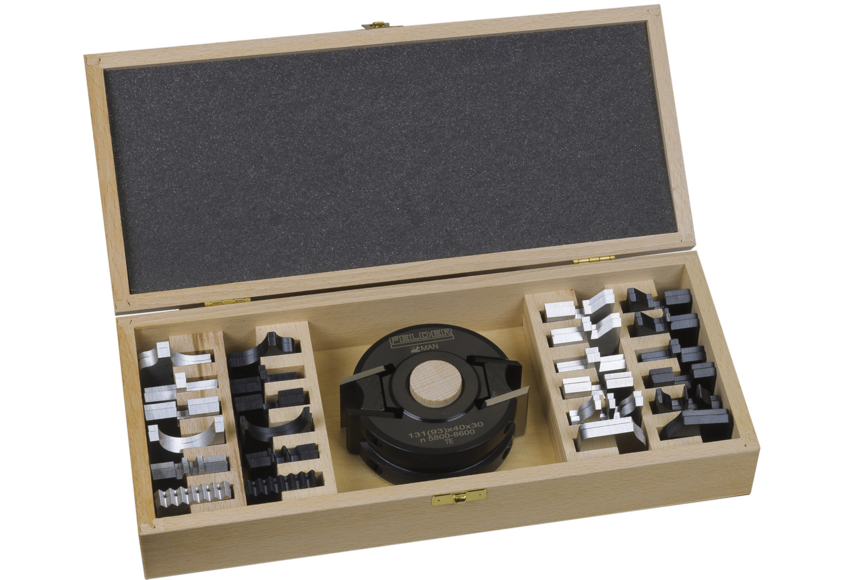

Case set: 40 mm universal safety cutters with rabbet knives + 12 profile knives/limiters

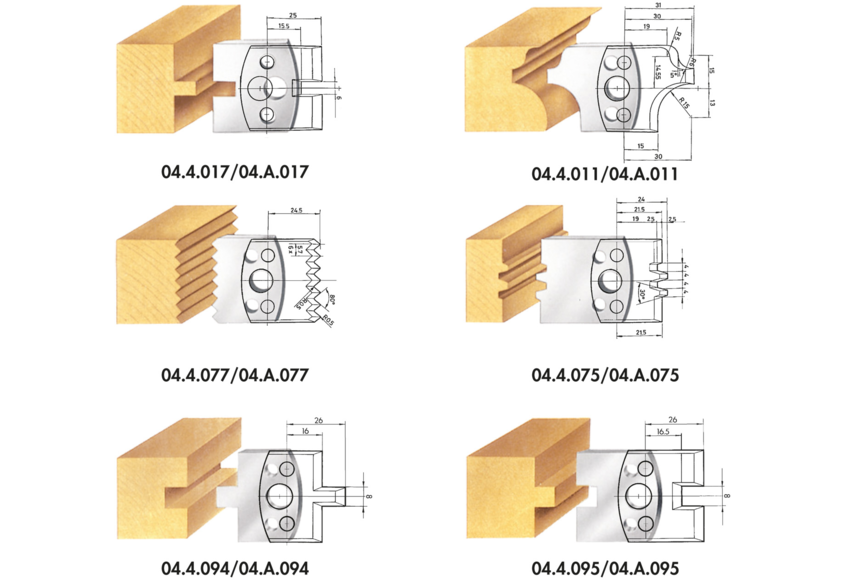

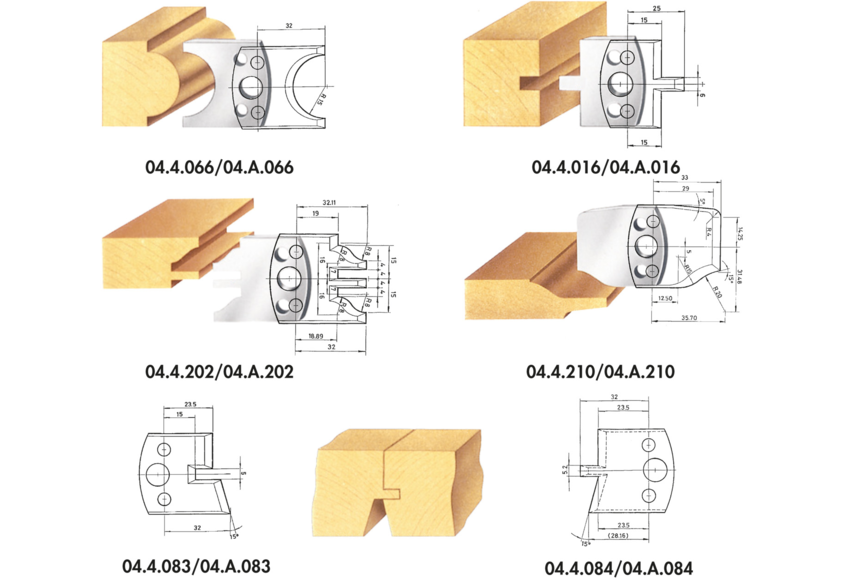

Many different profiles possible. Simple knife change thanks to fitting bolts seated in the cutter body.

Steel moulding tool, surface burnished. For manual feed, chip thickness limited, low kickback.

Pre-set for all profile knives with a width of 40 mm.

Quality of the cutting edges

HW = tungsten carbide (old designation HM)

HS = high-alloy high-speed steel (high-performance steel)

SP = alloy tool steel (special steel)

Abbreviations

WM = Reversible knife (can be used on both sides)

PM = Profile knife

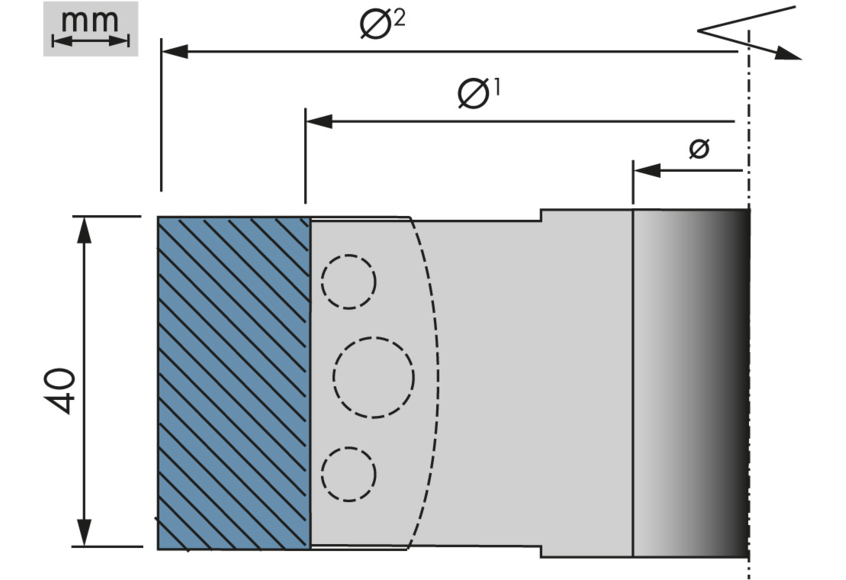

Technical information

Bore Diameter [mm]	30
Circle of Cut Diameter [mm]	100
Cutter Quality	SP
PM Main Cutters [pcs]	2
Rip Capacity [mm]	40
The set consists of	Cutter including 12 pair profile knives and limiter
Tool Diameter [mm]	93
