Frame clamps

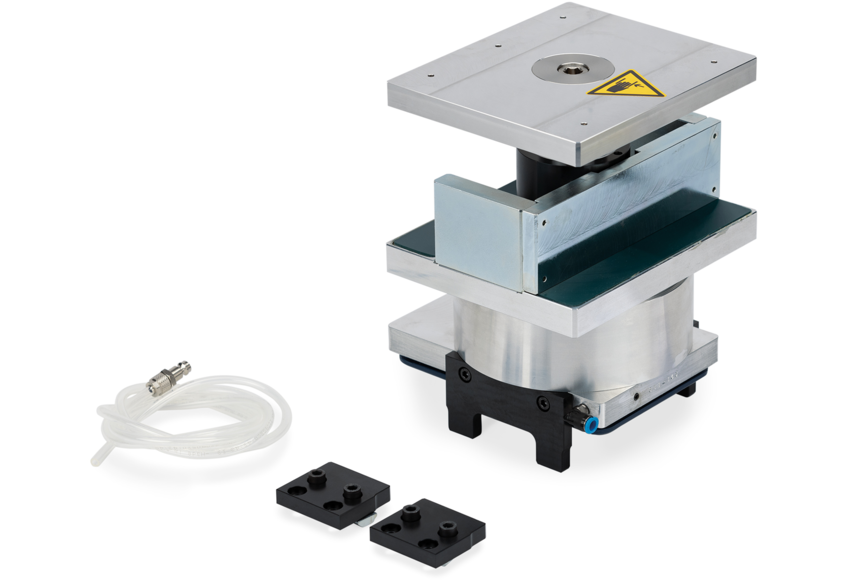

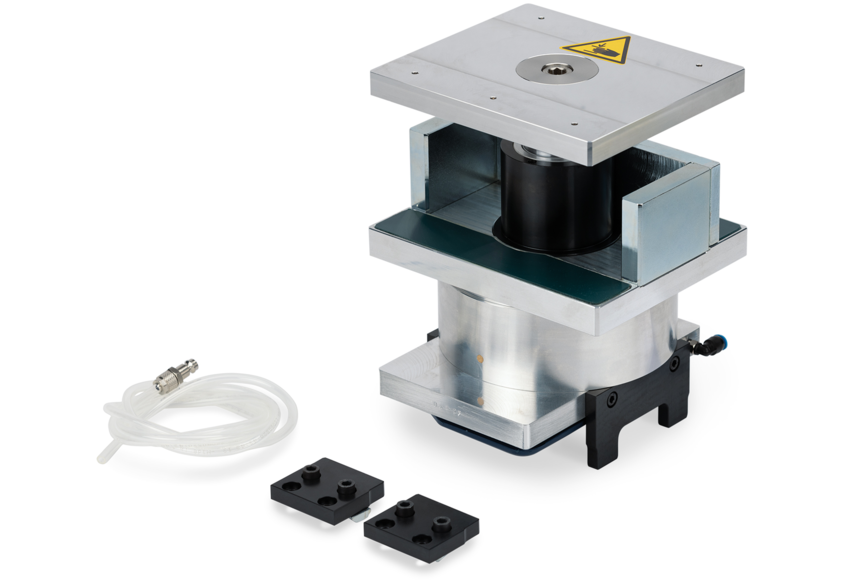

Frame clamps height 100 mm

Frame clamps

Frame clamps height 100 mm

for clamping range 55-105 mm Art. No. 301-145

Select variant

for clamping range 55-105 mm

Load variants

Dual circuit vacuum system | rectangular I for H500 Continue

₹1,40,670.00

excl. GST , without shipping costs

₹1,65,990.60

incl. 18% GST , without shipping costs

Quantity

Questions about this article? Send e-mail as soon as available No more notification

Description
Technical information

Description

Dimensions of the support and the clamping plate (rectangular): 144 mm x 176mm

Height of the frame clamp up to surface support: 100 mm (manual adjustment of the clamping height).

Including 2 reference tabs and 2 reference plates
+1 spacer ring for small component clamps rectangular - Height 50 mm, thickness 10 mm (301-150)

Technical information

Clamping Range [mm]	55-105
Execution	rectangular
Overall height [mm]	100
Suitable for	H500
Vacuum system	two circle
