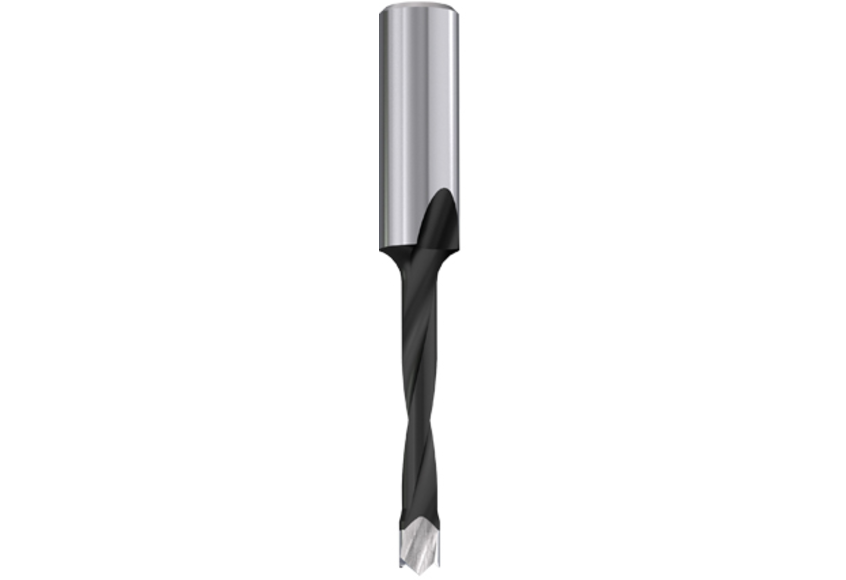

Dowel Drill Bits
Dowel drill bit total length 70 mm
Tungsten carbide blades lengthen tool life by up to 20 times Continue
₹1,890.00
excl. GST , without shipping costs
₹2,230.20
incl. 18% GST , without shipping costs
Description
- For the drilling of tear free blind holes
- Pre-cutters with negative cut angle and pulling cut
- Spiral drill with centring point and guiding groove
Cutter blade qualities
HW = tungsten carbide (old designation HM)
HS = high-alloy high-speed steel (high-performance steel)
SP = alloy tool steel (special steel)
Technical information
| Cutter Quality | HW |
| Rotation Direction | R |
| Shaft Length [mm] | 30 |
| Shank Diameter [mm] | 10 |
| Tool Diameter [mm] | 5 |
| Total Length [mm] | 70 |
| Working Length [mm] | 35 |
