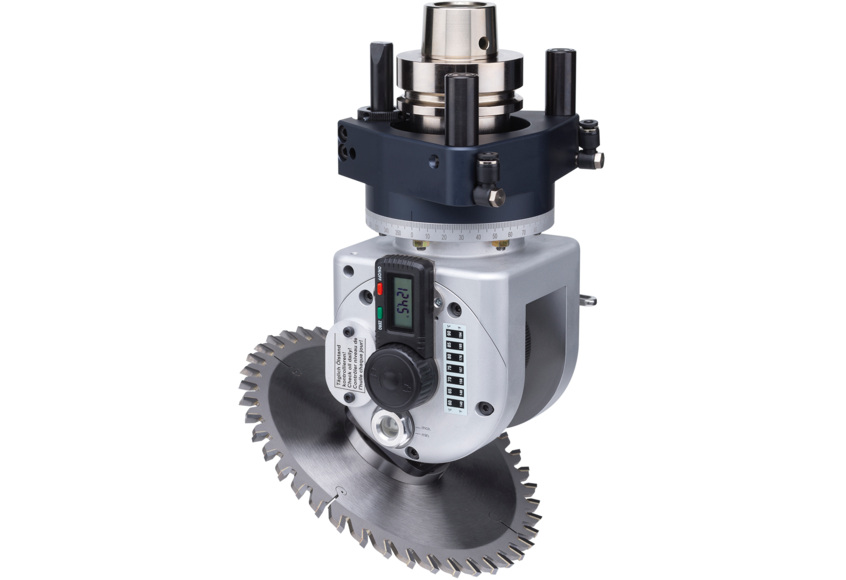

Tilting aggregate | HSK F63
CNC Machining Centres

Tilting aggregate | HSK F63

Art. No. 300-24-035

with 1 output WELDON for mounting a saw blade, digital, max. Ø 240 mm Continue

₹12,85,065.00

excl. GST , without shipping costs

₹15,16,376.70

incl. 18% GST , without shipping costs

Questions about this article? Send e-mail as soon as available No more notification

Description

  • Maximum speed drive nmax: 12000 1/min
  • Ratio i = 1:1,09
  • Maximum torque Mt: 20 Nm
  • Maximum saw blade diameter: Ø 240 mm
  • Permissible operating temperature: 85°C
  • Pivoting range: +100° - 100°
  • Power unit can be rotated 360° around drive axis
  • Without collet and tools
  • Panning display: Digital
  • Oil bath lubricated
