The most important highlights at a glance

FELDER K 540 S - Sliding Table Panel Saw
1300 outrigger table
Maintenance free and highly precise: the patented tilting segment “Easy-Glide” with 6 year guarantee
Rip fence running along a chrome plated round guiding bar
“X-Roll” sliding table guide system with a 10 year guarantee
Efficiency meets ease of use: Impressive 140 mm cutting height with a saw blade diameter of 400 mm

The compact sliding table panel saw for big demands

K 540 S – The evolution of the proven sliding table panel saw with even more efficiency and a cutting height of 140 mm.

The Felder K 540 S sliding table panel saw in its new edition with an advanced circular saw unit allows an impressive cutting height of 140 mm when using a 400 mm saw blade.. The electric scoring unit for scoring blades with a diameter of 120 mm is suitable for professional production in a class of its own combined with a 350 mm saw blade.

The swing away overhead saw guard and proven Felder system solutions such as the smooth-running “X-Roll” format sliding table and the "Easy-Glide” dual guiding system ensure highly professional working conditions as standard. The electric scoring unit, the patented "X-Roll" sliding table with up to 3200 mm and the outrigger crosscut fence up to 2600 mm meet all requirements for large jobs.

  • Efficiency meets ease of use: Impressive 140 mm cutting height with a saw blade diameter of 400 mm
  • Combined use of an electric Ø 120 mm scoring unit with a Ø 350 mm main saw blade
  • "Easy-Glide" tilting segment guide with 6 year guarantee
  • Patented "X-Roll" sliding table with 10 year guarantee
  • Cutting length 2500–3200 mm
  • Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300
  • Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)


... Your decision for Felder, a risk-free decision

  • The right machine for every budget
  • Complete reliability in professional use
  • Tailor made machine solutions
  • High quality cast iron machine table and aggregates
  • Innovative detail solutions derived from 60 years of experience – already included in the standard configuration
  • First class manufacturing and finishing standards
  • Intuitive application concepts
  • Modern, distinct design
  • Quality and precision from Austria
  • Powerful and efficient
  • Complete package: Comprehensive service support
  • CE + GS dust certified

Details & Accessories

Circular saw shaft
more
The new circular saw unit: Efficiency meets operating comfort
more
Crosscut fence (Option)
more
X-Roll - Precision guiding system
more
Stop scale
more
The rip fence
more
To use a grooving cutter “Dado cutter”
more
Pneumatic workpiece holder
more
The FELDER overhead saw guard
more
Outrigger table with floor support roller
more
Precision mitre index system
more
1300 outrigger table
more
EGL 1350
more
Scoring unit
more

Equipment & Specifications

Electrical construction block
@253S
Motor 3x 230 V S6 50 Hz 4.0 kW
Option
@463
Motor 3x 400 V S6 60 Hz 4.0 kW
Option
@152
Motor 1x 230 V S6 50 Hz 3.0 kW
Option
@454S
Motor 3x 400 V S6 50 Hz 5.5 kW Star delta start
Option
@254S
Motor 3x 230 V S6 50 Hz 5.5 kW Star delta start
Option
Electrical setup
001
3x 400 V
Standard equipment
002
3x 230 V motor voltage
Optional equipment at no extra cost
004
50 Hz
Standard equipment
005
60 Hz
Optional equipment at no extra cost
008
7.5 HP (5.5 kW)*
Standard equipment
10
Star-delta start is necessary from 7.5 HP and 3x230V
Option
28
Additional emergency stop
Option
Saw and Scoring Unit
Sliding table saw with tilting saw blade (90°–45°), maximum cutting height 140 mm with a 400 mm saw blade, 4000 rpm
Standard equipment
71
Digital indicator on handwheel for saw tilt
Option
82
Preparation for Dado tooling up to 19.5 mm in width
Option
84
Micro adjustable rip fence
Option
75
Electronic scoring unit, dia. 120 mm with main saw blade dia. 315/350 mm
Option
76
Cutting width 800 mm with full table, min. transport width 800 mm
Standard equipment
77
Rip capacity 1250 mm, min. transport width 800 mm
Option
81
Overhead saw guard for 800/1250 mm cutting width, swings away from the working area
Option
Sliding Tables
133
Dimension sliding table F, cutting length 2500 mm(98"), anodised** with edging shoe
Standard equipment
134
Dimension sliding table X, cutting length 2800 mm(110"), anodised** with edging shoe
Option
135
Dimension sliding table XL, cutting length 3200 mm(126"), anodised** with edging shoe
Option
136
Dimension sliding table anodised
Standard equipment
Outrigger Tables and Crosscut Fences
161
1300 mm Outrigger table for 1300–3200 mm sliding tables, Series 500
Standard equipment
164
Crosscut fence 1300 mm for all sliding tables
Option
165
Telescopic extension for crosscut fence 1300 mm to 2050 mm (#164)
Option
166
Crosscut fence 2600 mm for outrigger table (#160/161)
Standard equipment
167
Crosscut fence 3200 mm for outrigger table, with 2 crosscut stops instead of crosscut fence 2600 mm
Option
169
Crosscut fence 2600 mm(102") for outrigger table, “X-Roll”
Option
170
Precision mitre unit with pin locating system for outrigger table crosscut fence
Option
General
Working height in mm
890
Min. transport width in mm
800
Extractor connection port diameter in mm on overhead saw guard
120/80
Weight kg (with standard configuration)
680
Important Accessories
223
IPPC
Option
User manual
911
User manual Dutch
Optional equipment at no extra cost
Transport
221
Preparation for container
Optional equipment at no extra cost

Video

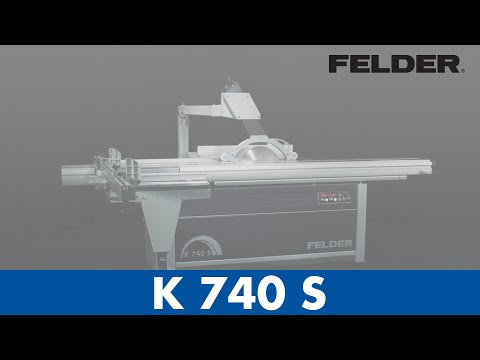

The new FELDER sliding table panel saw K 740 S combines large cutting height, compact size and high operating comfort. The machine is characterized by a large and powerful circular saw unit with a maximum cutting height of 140 mm when using a Ø 400 mm saw blade. It is also possible to use an electrically driven scoring unit with a Ø of 120 mm in combination with a Ø 315 mm main saw blade.

*/ ?>
