Supplementary Cutter | WM
Tongue and Groove Cutter

Supplementary Cutter | WM

Adjustment range: +7.9 mm | Ø 140 mmArt. No. 500-04-010
Select variant
Adjustment range: +7.9 mm | Ø 140 mm
Load variants

Steel supplementary cutter, for 500-04-009 Continue


Free Shipping & Returns!
€141.00

excl. VAT , without shipping costs

€173.43

incl. 23% VAT , without shipping costs

Questions about this article? add to wish list remove from the wish list

Description

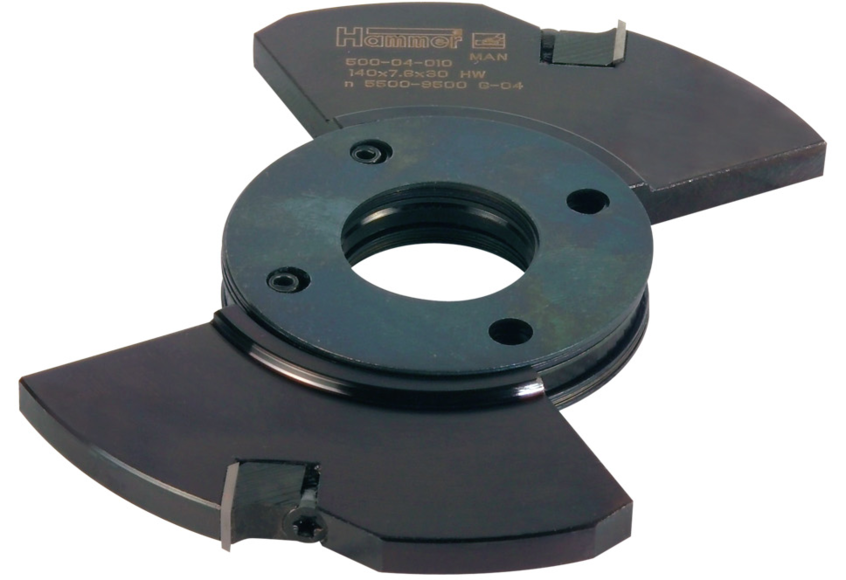

Extension cutter for adjustable slot cutter 500-04-009 for slot widths up to 15 mm

Moulding tool made of steel, surface burnished.   For manual feed, chip thickness limited, low kickback.

Spacer rings included:

  • 1 x 2 mm
  • 1 x 1 mm
  • 1 x 0,5 mm
  • 1 x 0,1 mm

Quality of the cutting edges

HW = tungsten carbide (old designation HM)

HS = high-alloy high-speed steel (high-performance steel)

SP = alloy tool steel (special steel)

Abbreviations

WM = Reversible knife (can be used on both sides)

PM = Profile knife

Technical information

Cutter Quality HW
Diameter [mm] 140
Rip Capacity [mm] 7,5
Type Supplementary Cutter
WM Main Cutters [pcs] 2
