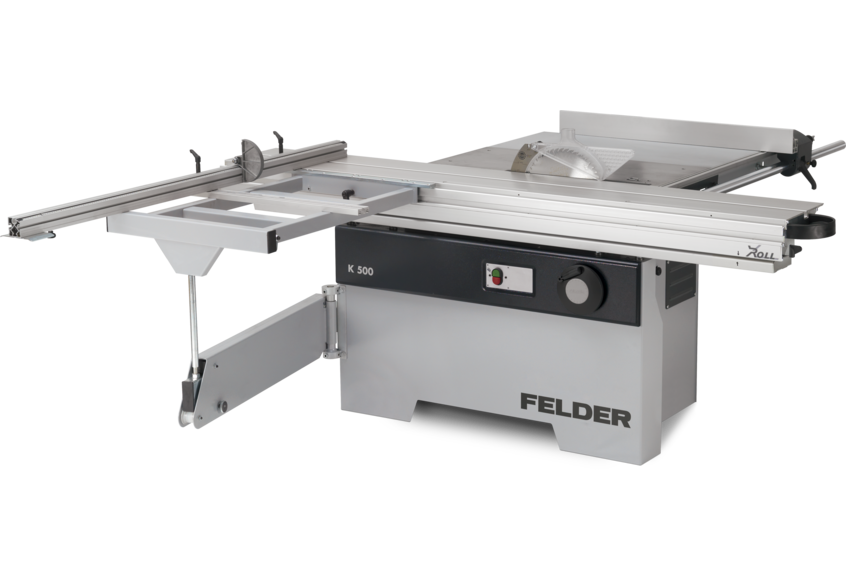

Sliding Table Panel Saw Felder K 500 Professional

Art. No. WWX-K500P-FE70X

Cutting length: 2050–2500 mm
“X-Roll” sliding table, 10 year guarantee
Rip capacity: 800–1250 mm
Cutting height: 102 mm

Get free quote

Questions about this article?

Description

Top performance at the best price

The Felder K 500 is the great value panel saw for professional woodworking. The tiltable saw blade, the precise professional fence and the patented aluminium format sliding table “X-Roll” with 10 year factory guarantee, ensures reliability, stability and excellent results. With the 2050 mm sliding table and 1100 mm outrigger table included in the professional package, the K 500 can count itself as part of the industry range.

Highlights & Details

Saw unit «500»Stable and compact saw unit built to last:

Cutting height of 102 mm with a 315 mm saw blade

Double-sided support

Smooth tilting action 0°–45°

Support close to the saw blade on both sides

Scoring unitScoring Saw Blades have 2 parts and can be adjusted to the thickness of the main saw blade with a shim set. They feature square carbide teeth and positive hook. The scoring saw blades rotate in the opposite direction to the main saw blade.

To use a grooving cutter “Dado cutter”The Felder 500 Series saw unit is fully compatible with Dado tooling. Thanks to a removable table insert and flanges, specialised Felder dado tooling can be used.

The rip fenceThe single handed adjustment system ensures quick and accurate setting of the rip fence. A fine adjustment facility is included. The rip capacity amounts to 800 mm or optionally 1250 mm. The easy to read rip scale is perfectly integrated into the saw table. The aluminium rip fence plate can be moved backwards to optimise the feed of workpieces. Optional parallel cutting fence fine adjustment

X-Roll - Precision guiding systemThe continuously developed linear guiding system from Felder has been astounding woodworkers since 1990. The high quality format sliding table guiding technology “X-Roll” comes with a 10 year Felder guarantee and offers amazing operating smoothness and is completely maintenance free. The 'x' design of the position of the roller bearings ensures that they move smoothly along hardened guides.

Pneumatic workpiece holder

Easy clamping of workpieces with maximum flexibility, can be used on all panel saws and spindle moulders that have a sliding table

Easy set up due to magnetic fittings

Safety cylinder ensures maximum working safety

Pressure bar function is possible with every sliding table length

Locking height 95 mm

Clamping force approx. 300 kg

EGL 1350OUTSTANDING! The patented double mitre gauge from Felder allows for mitre cuts on pieces of differing widths and at any angle. Really easy to use: simply type in the desired angle as well as the widths of your workpieces on the keyboard. Immediately, you will receive the settings and can set the electronic double mitre gauge accordingly. The fence stop on the fence can be adjusted up to 1350 mm with the scale. Regardless of the angles set, the length compensating vernier scale allows you to compensate for the workpiece length.

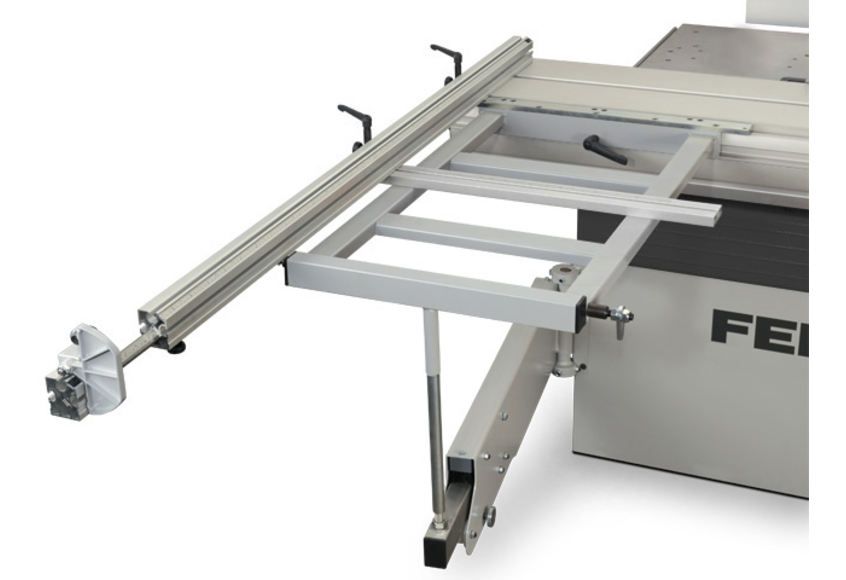

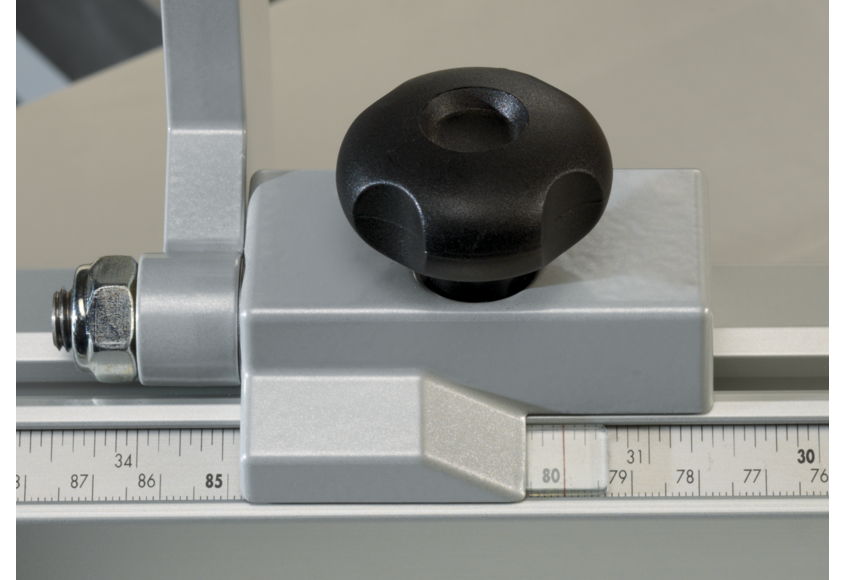

Outrigger tableThe outrigger table enables the user to process large and heavy workpieces. The four ball bearing rollers guide the telescopic support arm and ensure maximum precision and smooth running. The telescopic crosscut fence with mounting system and ergonomically designed scale with magnifying lens on the crosscut stop guarantees precise settings and crosscuts up to 2600 mm. The crosscut fence can be positioned between 90°-45° and has one crosscut stop as standard. There is a fixed end stop position for 90°.

Precision mitre index systemAccurate angle adjustments, efficient operation and calibration are all made possible by the precision mitre guide index system.
