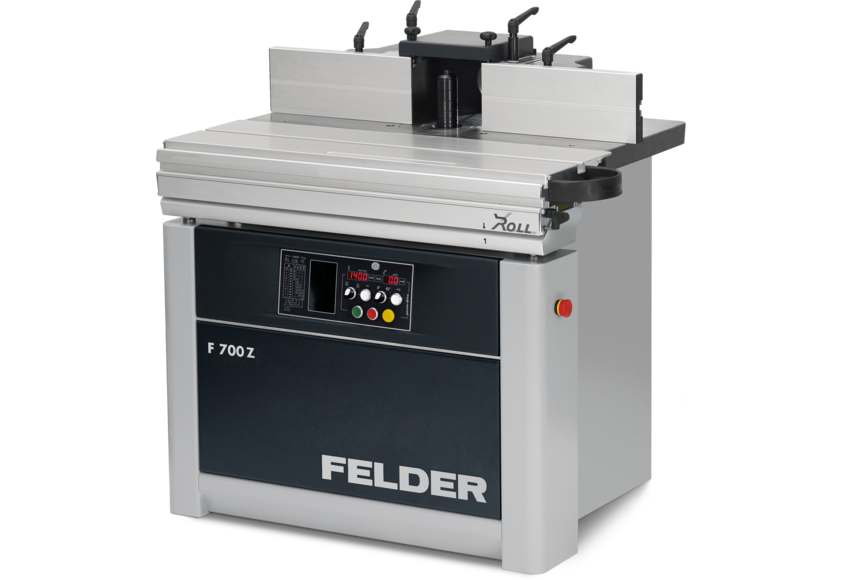

Tilting Spindle Moulder Felder F 700 Z

Art. No. WWX-F700Z-FE70X

Table opening: 230 mm
Spindle fence for max. tooling diameter: 230 mm
Quick-change system of the spindle, Standard
Slot and tenon table: 1000 mm (2050 mm)
Speeds: 3500, 6500, 8000, 10000 rpm
Moulder spindle control: Power-Drive (Optional)

Get free quote

Questions about this article?

Description

The new F 700 Z: Ready for every challenge

The tilting spindle moulder from the Tyrolean machine manufacturer Felder has been a guarantee of top performance in business and industry for years. With the new models from the 700 series, Felder are not only offering a price conscious solution for all woodworking companies, but also the perfect addition to CNC supported production processes. With a solid cast iron moulding table for vibration-free stability or with the reliable 'X-Roll' sliding table for excellent slot and tenoning work – with spindle moulders from Felder you are prepared for every challenge a modern woodworker could face.

Highlights:

Smooth and comfortable operation when slot and tenoning:
“X-Roll” sliding table
Maximum ease of operation with “Power-Drive”: electrical height and angle adjustment
Felder spindle quick change system: quick changeover ensuring maximum productivity
Maximum operating safety: Spindle tilts rearwards from 90°-45°
Maintenance free tilting segment guide “Easy-Glide” with 6 year guarantee
230 mm table opening – a particular advantage when panel raising
Reliable repeatability and precise quick settings: The Felder MULTI-adjustment system
Dual extraction through both the spindle fence and from under the table – a clean solution
FELDER table extensions and numerous optional configurations – individual tailor made solutions for every requirement

Highlights & Details

Power-Drive (Moulder spindle)The fully electrical “Power-Drive” control offers exact adjustment and repeat accuracy. The saw blade height and the angle settings can be adjusted at the turn of a knob, the fine setting adjustments are carried out to tenth of a millimetre accuracy using a push button. Red LED digits display the current position in real time on the control panel.

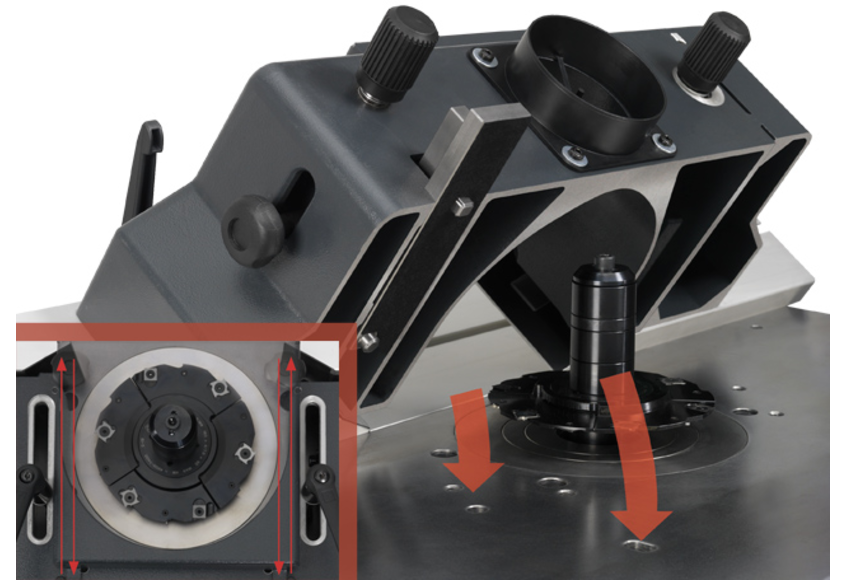

Spindle fence “230"The fence allows tooling of a maximum diameter of 230 mm to be used. The fine adjustment can be set between -5 to +25 mm. The extraction of the chips is done via the integrated extraction connection.

Multi fine adjustment systemAdditional to the parallel guiding of the spindle fence the MULTI-adjustment system also enables

The quick adjustment to the tool diameter

Automatic repeat setting after removal of your fence

Parallel adjustments of the moulder fence

Quick and accurate adjustment

Measurement scale for depth of cut

Safety bar guidesThe safety bar guides are great for end-grain work (optional).

Spindle moulder unit «700»The Felder 700 Series spindle aggregate sets standards that are unparalleled.

115 mm useable spindle height above the table (140/160 mm)

Quick-change system of the moulder spindle

Change the speed simply from the front of the machine

Collet chuck spindle for router tools with a speed of 15,000 rpm

Electrical height adjustment with digital LED display

Electrical angle adjustment with digital LED display

4 operating speeds (3500, 6500, 8000, 10,000 rpm)

Rearward tilt 0° to 45°

Precise, double sided guide support

Dovetail guidance system of the height adjustment

Excellent vibration absorption from heavy cast iron unit

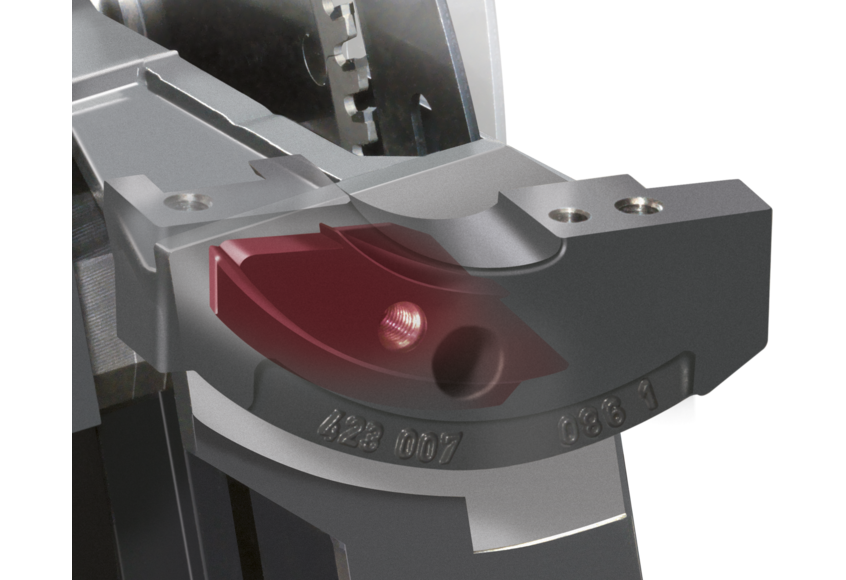

“Easy-Glide” - 6 year guarantee!

High precision double-sided trunnion support system
High load-bearing capacity and operating life
Play-free tilt
Unaffected by dust
Completely maintenance free
No lubrication required
6 year guarantee

Quick change spindle systemAdvantages of the Felder spindle quick change system:

Quick, easy change between different types of spindles

Ability to use 30, 32, 35, 40, 50 mm and 1¼” diameter spindles

Use of the Felder high speed router spindle for router bits or high speed tools at 15,000 rpm.

Automatic repeatable setting for series production work

Table opening: 230 mmThe large table opening allows for maximum operator safety. For large dimension tooling, as used for tenoning and panel raising, the cutterblock can be conveniently positioned below the table.

Moulder spindle tilting from 90°–45°Your Felder spindle tilts “rearward” for operational comfort and the additional following reasons:

Safety, as there is no pinch point

Suitable for any workpiece size

Problem-free power feeder application

Impeccable machined surface

Optimal chip removal

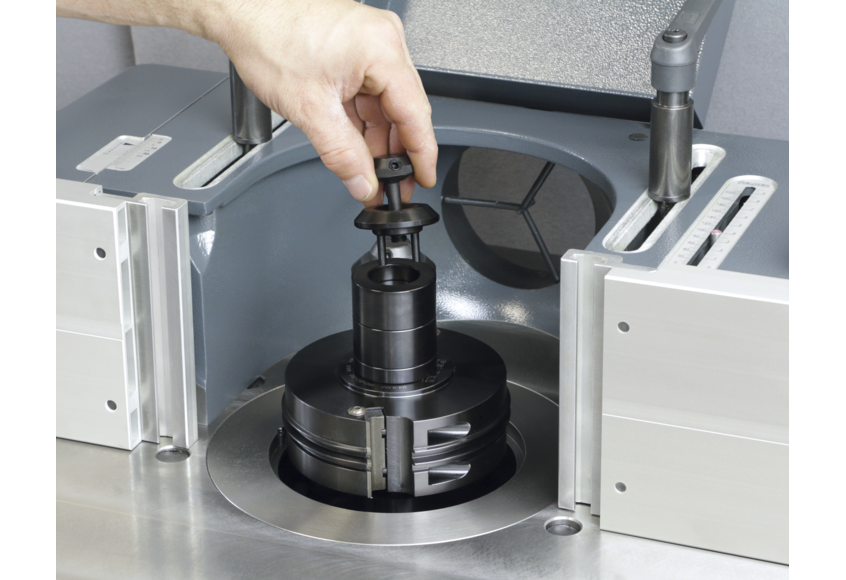

„Quick-Lock“ – Change moulding tools quickly and safelyChange routing tools quickly and safely. The "Quick-Lock" clamping system allows a convenient change of cutters on the table router and reduces the risk of injury from slipping. Suitable for Ø 30 mm spindles

Precise slots and tenonsAccurate slots and tenons are much easier with the Felder “X-Roll” sliding table. This precision guiding system will accept maximum loads without compromising the smooth and accurate stroke of the sliding table. The “X”-configuration of the roller bearings optimally distributes workpiece weight to all sides. With conventional sliding tables, ball bearings are used in the guiding system. A ball bearing system creates a singular point of contact between the bearings and the flat guiding tracks. The singular point of contact will eventually wear grooves into the tracks and as a result, sideways play will develop in the sliding table. It is physically impossible for the “X-Roll” system; with roller bearing lineal contact; to wear grooves into the guiding tracks, hence the system will always remain play-free and is backed with a 10-year factory guarantee.

Outrigger tableThe solid 1100 outrigger table for 1300 mm and 2050 mm sliding tables offers a usable area of 800 x 600 mm. With this valuable option you can easily machine large workpieces e.g. rebating a door.
