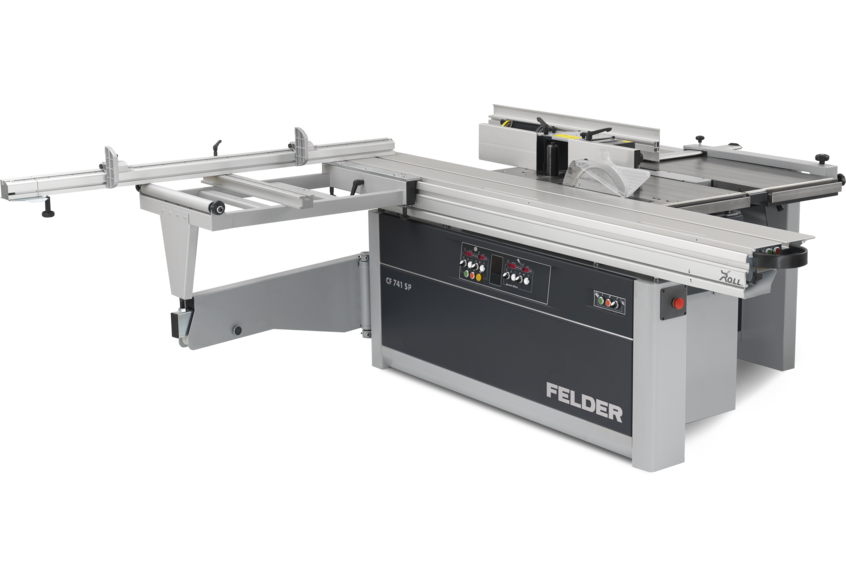

Combination Machine Felder CF 741 S professional

Art. No. WWX-CF741SP-FE70X

Questions about this article?

Description

The new CF 741 – versatility in perfection

The combination machine CF 741 is the premium machine for modern woodworking and leaves nothing to be desired with the different equipment options. The all-rounder impresses with its clear layout, combining small space requirement with perfection and user-friendliness of professional machines and offers excellent quality in planing, cutting, moulding and slot drilling.

Highlights:

High quality 700 series aggregates guarantee reliable quality and precision
Simple, syncronised opening of the solid planing tables
Optimised planing fence design ensures the smallest possible space requirement
10 year guarantee: “X-Roll” sliding table for maximum load bearing
Tried and tested Felder spindle quick change system: Felder MULTI adjustment system
Optional: Height and angle adjustment of the saw and spindle accurate to a tenth of a millimetre as well as thicknessing height adjustment with the electronic “Power-Drive” control.
Maintenance free tilting guide segment “Easy-Glide” with 6 year warrenty.

Highlights & Details

The Felder planer fenceThe planer fence may be tilted to any angle between 90° and 45°. End stops are placed at 90° and 45°.

X-Roll - Precision guiding systemThe continuously developed linear guiding system from Felder has been astounding woodworkers since 1990. The high quality format sliding table guiding technology “X-Roll” comes with a 10 year Felder guarantee and offers amazing operating smoothness and is completely maintenance free. The 'x' design of the position of the roller bearings ensures that they move smoothly along hardened guides.

Silent-Power®

Exclusive for planer/thicknessers from the Felder Group. The Silent-Power® spiral cutterblock reduces noise emissions by more than half when planing. The continuous pulling cut ensures tear-free results when planing all types of wood. With this revolutionary new development from Format4 you are obtaining all of the advantages of a spiral cutterblock at considerably lower operating, investment and adjustment costs. The advantages of the Silent-Power® cutterblock at a glance ...

Extremely quiet, noise is reduced by half
Usable blade life twenty times longer than standard blades
Four highly precise cutting edges on each knife
Optimised chip extraction and reduced chip volume
Tear-free planing results
Reduced power consumption when compared to similar systems

Click here for more information

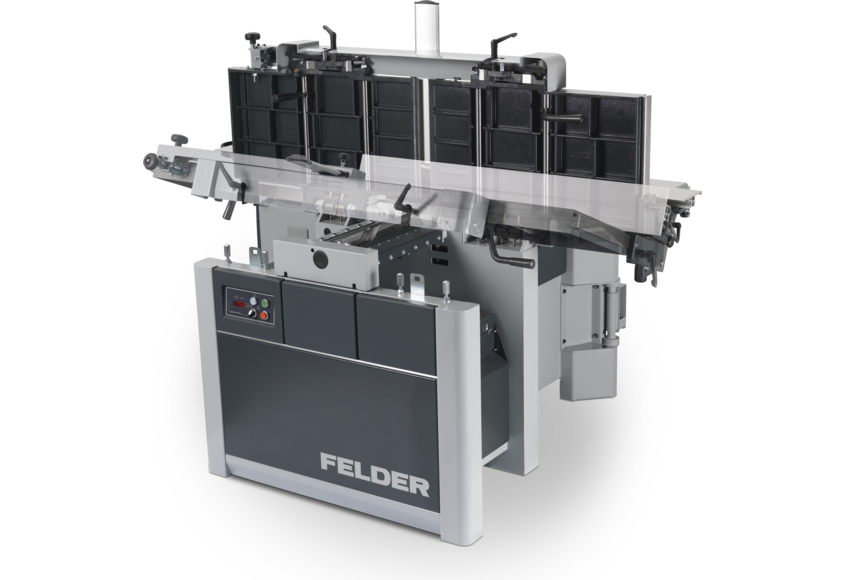

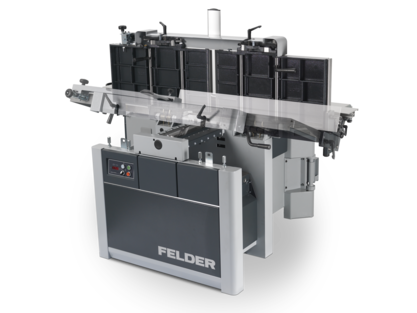

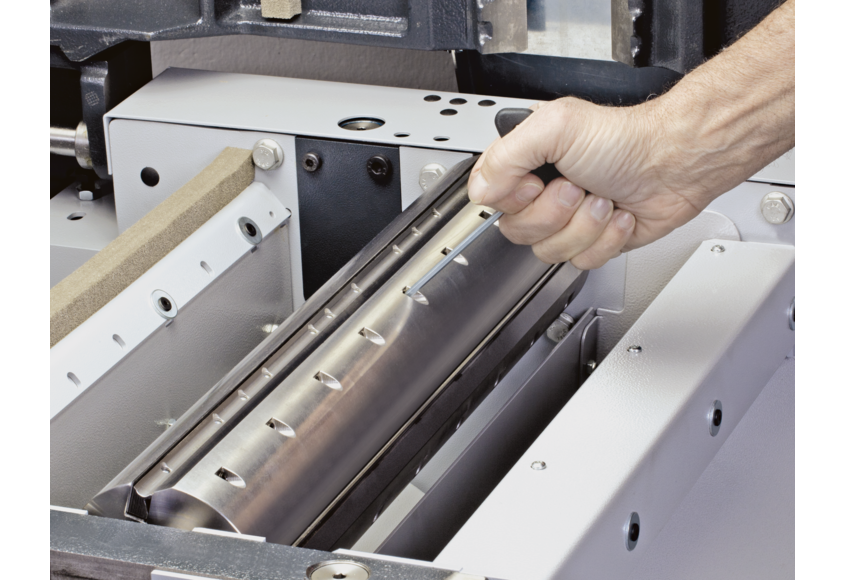

Quickest changeover time from planing to sawing, moulding and vice versa

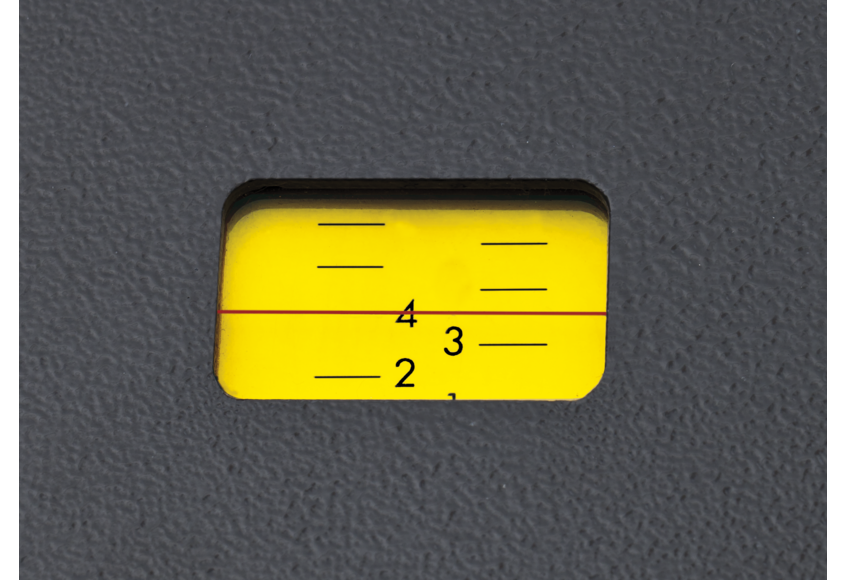

Adjusting the depth of cutThe chip removal can be adjusted continuously to up to 4 mm. The magnifying glass guarantees accurate reading of the scale.

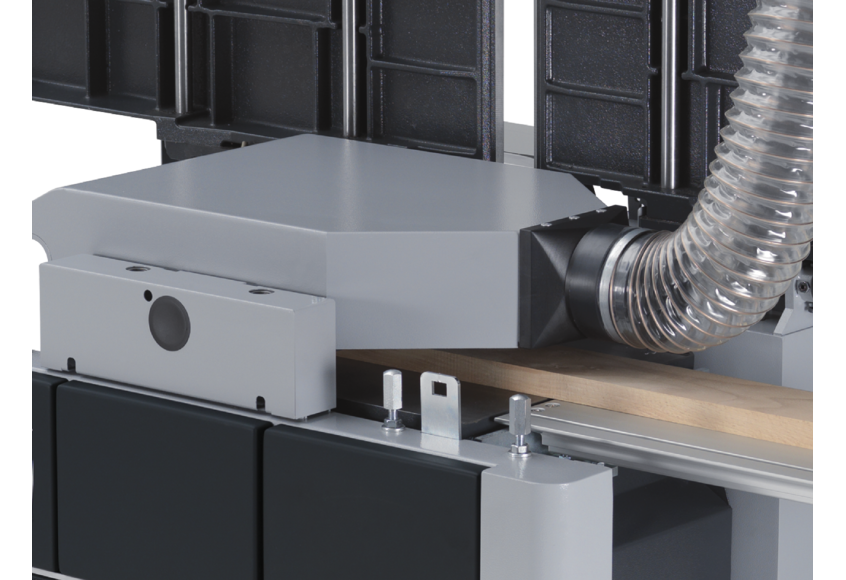

Dust extraction hoodHeavy chip loads are no problem for the chip extraction hood due to its efficient design and large dimension.

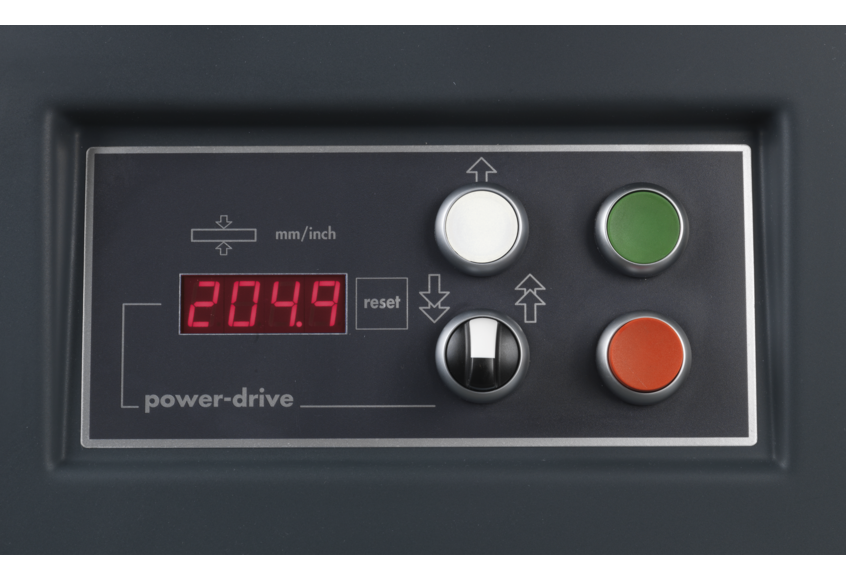

Power-DriveThe fully electrical “Power-Drive” thicknesser table control offers the most precise adjustment and repeat accuracy. With a twist of the knob, you can quickly adjust the thicknessing height, then fine-adjust using the button. An integrated LED-display displays the actual value.

2-stage gearSimple choice for the power feeder speeds of 6 m/min. and 12 m/min.

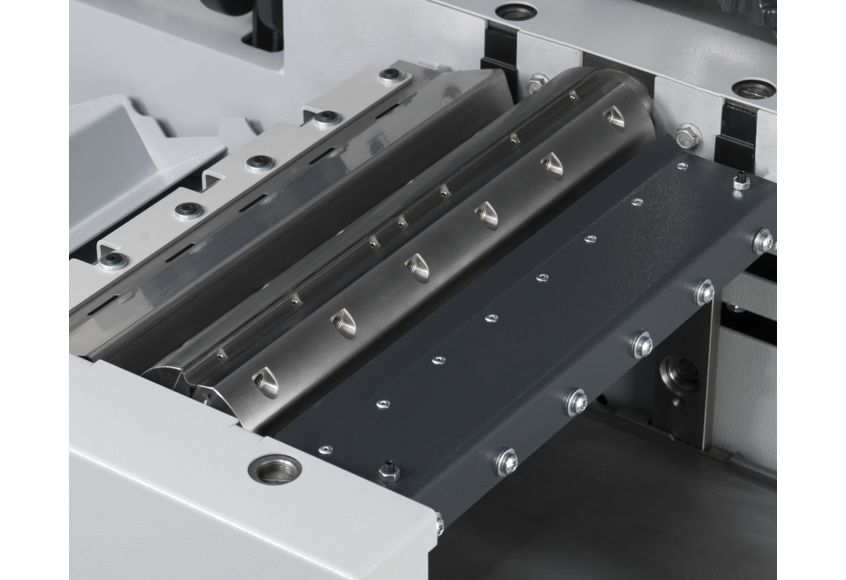

Stability for high performance

The solid cast iron cutterblock housing is built for heavy duty work. The serrated steel infeed roller and the micro-serrated steel outfeed roller guarantee a perfect transport of the workpiece through the machine. Both steel rollers are large dimensioned and non-wearing. The combination of cutterblock, transport rollers and wood type is decisive for perfect planing resuts. The new Felder CF 741 can be individually configured and specified to meet your exact requirements.

Power-Drive (Moulder spindle)The fully electrical “Power-Drive” control offers exact adjustment and repeat accuracy. The saw blade height and the angle settings can be adjusted at the turn of a knob, the fine setting adjustments are carried out to tenth of a millimetre accuracy using a push button. Red LED digits display the current position in real time on the control panel.

Spindle fence “230"The fence allows tooling of a maximum diameter of 230 mm to be used. The fine adjustment can be set between -5 to +25 mm. The extraction of the chips is done via the integrated extraction connection.

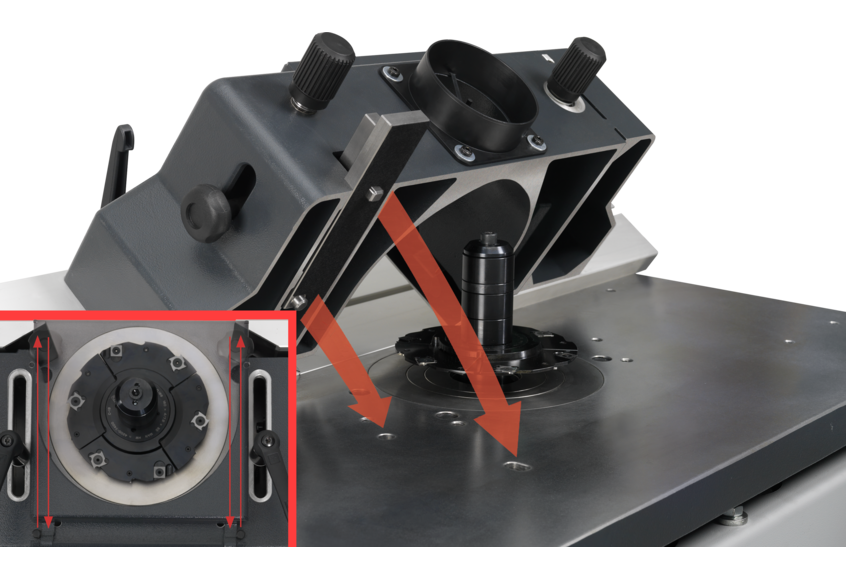

Multi fine adjustment system“230” spindle fence for max. tooling diameter 230 mm, MULTI adjustment system for spindle fence “230” enabling parallel alignment and quick setup

Spindle moulder unit «700»The Felder 700 Series spindle aggregate sets standards that are unparalleled.

115 mm useable spindle height above the table (140/160 mm)

Quick-change system of the moulder spindle

Change the speed simply from the front of the machine

Collet chuck spindle for router tools with a speed of 15,000 rpm

Electrical height adjustment with digital LED display

Electrical angle adjustment with digital LED display

4 operating speeds (3500, 6500, 8000, 10,000 rpm)

Rearward tilt 0° to 45°

Precise, double sided guide support

Dovetail guidance system of the height adjustment

Excellent vibration absorption from heavy cast iron unit

“Easy-Glide” - 6 year guarantee!The patented tilt segment “Easy-Glide” fulfills the highest requirements in businesses and industries. A precise, guided, doublesided support, guarantees maximum load bearing and tolerance free tilting and is absolutely maintenance free. A special, highly durable synthetic material situated in the guide of the tilting segment ensures extremely smooth movement and long-lasting precision. The tilting guide system, a synthetic material tried and tested in aerospace and lock construction, works without the requirement of lubrication and is totally resistant to dust. With a 6 year factory guarantee this Felder component offers reliabilty for many years to come.

Quick change spindle systemAdvantages of the Felder spindle quick change system:

Quick, easy change between different types of spindles

Ability to use 30, 32, 35, 40, 50 mm and 1¼” diameter spindles

Use of the Felder high speed router spindle for router bits or high speed tools at 15,000 rpm.

Automatic repeatable setting for series production work

Table opening: 230 mmThe large table opening allows for maximum operator safety. For large dimension tooling, as used for tenoning and panel raising, the cutterblock can be conveniently positioned below the table.

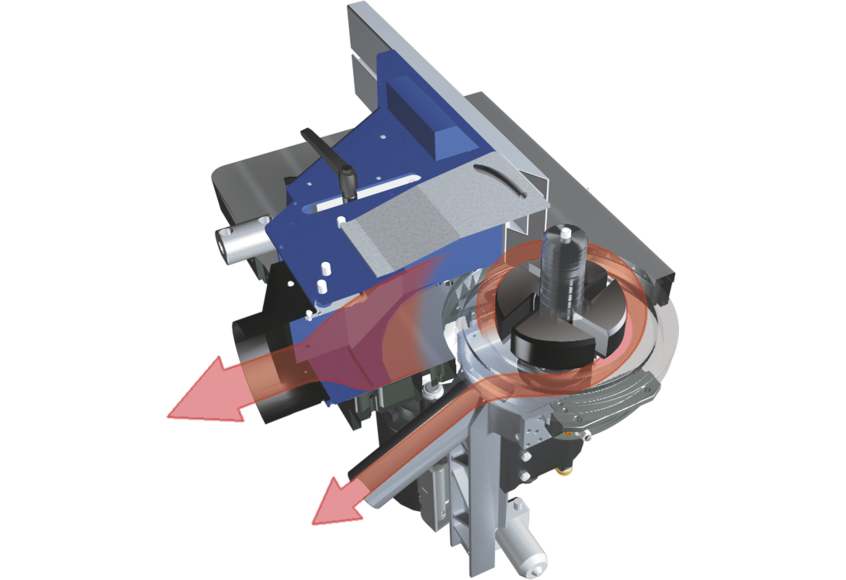

Dual extraction for the spindle functionThe dual extraction system from the spindle unit and fence ensures that the machine stays clean and dust free.

“Power-Drive” (Saw blade)Similarly, the saw blade height and angle settings can be set to an accuracy of a tenth of a millimetre. For fine tuning there is also a push button and a clear LED display screen to show you the actual current value.

Saw unit «104»The FELDER saw unit “104” Manufactured entirely from cast iron, the new Felder “104” saw unit fulfils the highest demands of modern woodworking.

104 mm cutting height with a 315 mm saw blade diameter

Electronic height adjustment of the saw blade (“Power-Drive” K1)

Electrical height and angle adjustment of the saw unit with LED display (“Power-Drive” K2)

Precise height adjustment via precision linear guides

Optimal extraction with a completely enclosed saw aggregate

Large scale, double ball bearing saw arbour

Circular saw shaftThe electronically balanced saw arbor with dual bearing seat system is powered via a Poly-V belt. This combination results in an almost perfect transmission of power to the saw blade.

To use a grooving cutter “Dado cutter”The Felder 700 Series saw unit is fully compatible with dado tooling. Thanks to removable flanges and table insert, the Felder designed, fully adjustable dado cutters can be used.

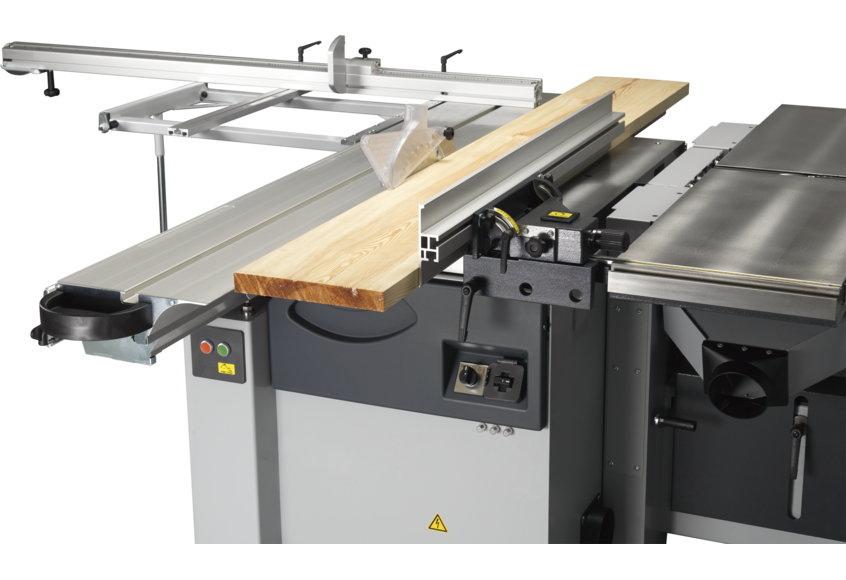

Rip fenceThe rip fence is easy and smooth to adjust, with a single-handed clamping mechanism. The optional fine adjustment makes precise measurements possible. The rip scale is easy to read and perfectly integrated into the machine table.

OutriggerThe solid outrigger makes it possible to process large and heavy workpieces. High precision and operating smoothness is guaranteed by 8 bearing guide rollers situated in the outrigger telescopic arm. You can optionally equip your Felder saw with a 1300 Felder outrigger or the 1500 premium version Optional roller for the outrigger to facilitate the loading of workpieces

Technical information

Cutting Height [mm]	104
Cutting Length [mm]	2500
Frequency [Hz]	50
Motor Power [kW]	4,0
Planing Width [mm]	410
Power (HP)	5,5
Rotation speed (rpm)	4000
Saw Blade Tilt	90° bis 45°
Spindle moulder fence	230
Surface Planer Table Length [mm]	1650
Thicknessing Width [mm]	404
Voltage [V]	3 x 400
Weight [kg]	1120
