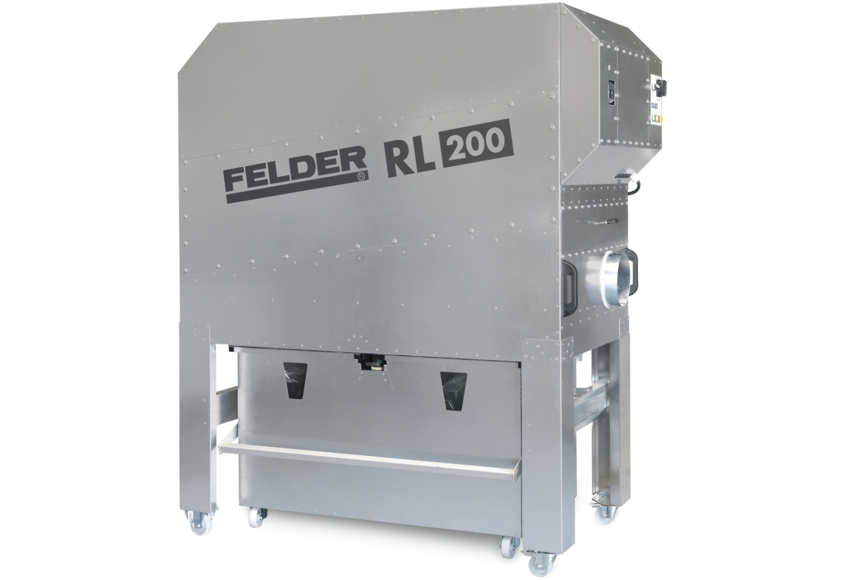

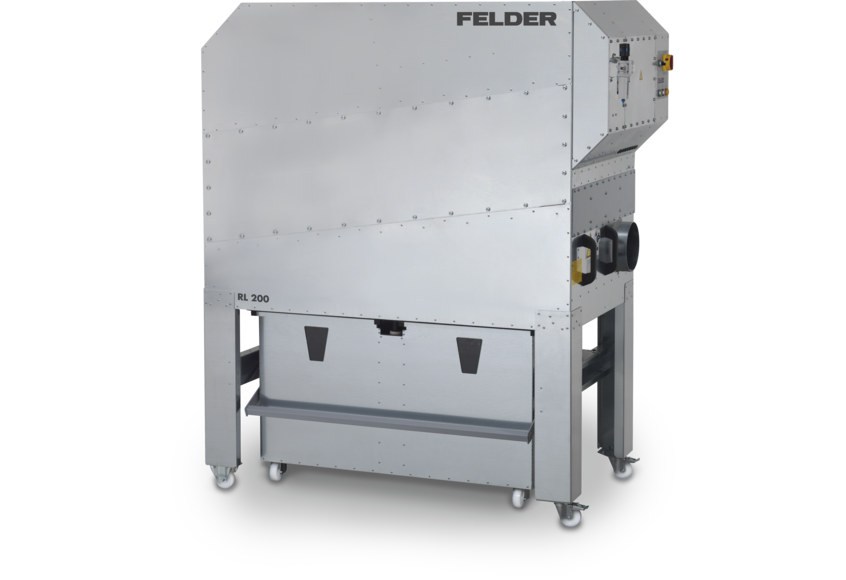

Dust Extractor RL 200

3 x 400V 50Hz 4,0PS 3kWArt. No. WWS-F0062

€6,695.00

excl. VAT , without shipping costs

€8,234.85

incl. 23% VAT , without shipping costs

Questions about this article?

Description

Commercial as well as industrial woodworkers enjoy the benefits of wood dust-tested Felder clean air dust extractors available in various price and performance ranges. Mobile and space saving, the RL 125, RL 140, RL 160, RL 200, RL 250, RL 300 and RL 350models offer flexibility and maximum performance in the smallest of spaces. All models achieve dust emissions of less than 0.1 mg/m³ and are in accordance with H3 residual dust content levels. Unlike conventional dust extractors, Felder places the fan at the clean air side. This generates a negative pressure throughout the entire system, preventing dust escaping through any leaks.

Highlights & Details

Profit twice with briquetting machines from Felder

Fuel, disposal costs or storage space are all becoming more and more expensive. The Felder briquetting presses reduce the volume of waste by 90 % and additionally eliminate the need for investment in a chip container or silo. Felder briquetting machines are suitable for continuous use due to their design. They are assembled on a solid base frame and can be combined to use with clean air dust extractors by Felder.

Chip collection bins

The chip collection bins are positioned under the machine ensuring an optimised filling of the dust bags. The optimised clamping system ensures a quick dust bag changeover.

Technical information

Air Flow Capacity [m³/h]	4000
Chip Bag Capacity [L]	400
Cleaning	Manual
Extraction Connection Diameter [mm]	200
Filter Surface Area [m²]	20
Frequency [Hz]	50
Max. Negative Pressure [Pa]	2380
Motor Power [kW]	3
Nominal Air Flow Capacity 20 m/sec [m³/h]	2300
Power (HP)	4
Voltage [V]	3x 400
