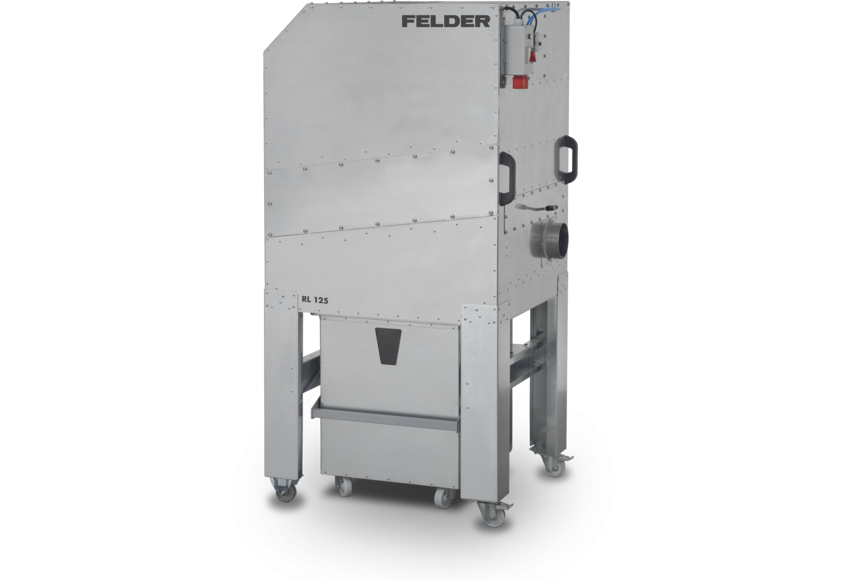

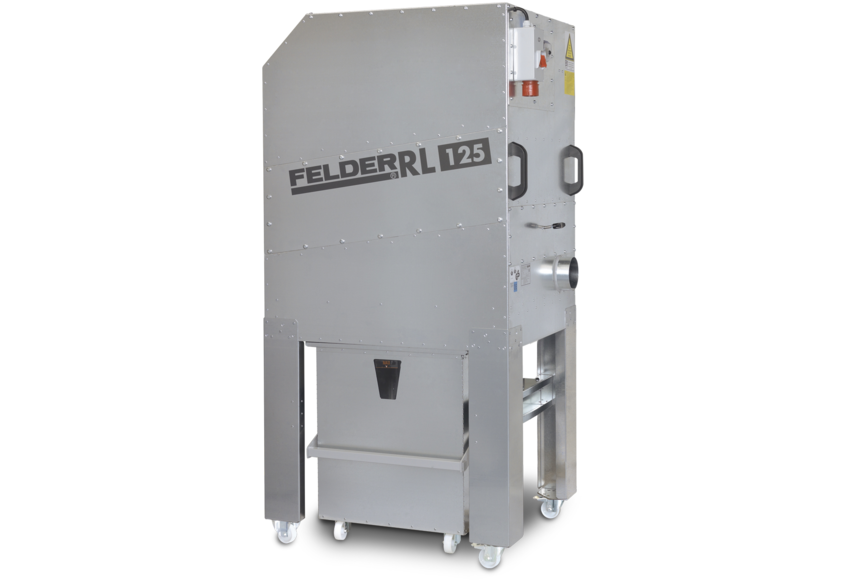

Dust Extractor RL 125

3 x 400V 50Hz 4HP 3kWArt. No. WWS-F0020

€3,795.00

excl. VAT , without shipping costs

€4,667.85

incl. 23% VAT , without shipping costs

Questions about this article?

Description

Commercial as well as industrial woodworkers enjoy the benefits of wood dust-tested Felder clean air dust extractors available in various price and performance ranges. Mobile and space saving, the RL 125, RL 140, RL 160, RL 200, RL 250, RL 300 and RL 350models offer flexibility and maximum performance in the smallest of spaces. All models achieve dust emissions of less than 0.1 mg/m³ and are in accordance with H3 residual dust content levels. Unlike conventional dust extractors, Felder places the fan at the clean air side. This generates a negative pressure throughout the entire system, preventing dust escaping through any leaks.

Highlights & Details

Chip collection bins

The chip collection bins are positioned under the machine ensuring an optimised filling of the dust bags. The optimised clamping system ensures a quick dust bag changeover.

Technical information

Air Flow Capacity [m³/h]	1900
Chip Bag Capacity [L]	200
Cleaning	Manual
Extraction Connection Diameter [mm]	125
Filter Surface Area [m²]	5
Frequency [Hz]	50
Max. Negative Pressure [Pa]	2350
Motor Power [kW]	3
Nominal Air Flow Capacity 20 m/sec [m³/h]	900
Power (HP)	4
Voltage [V]	3x 400
