Dust Extractor AF 22

Stationary with adjustable feet | 3x 400 V | Ø 120 + Ø 80 mmArt. No. 401-258

instead of ~~€1,280.00~~

€1,149.00

Save up to €131.00

excl. VAT , without shipping costs

instead of ~~€1,574.40~~

€1,413.27

Save up to €161.13

incl. 23% VAT , without shipping costs

Questions about this article?

Description

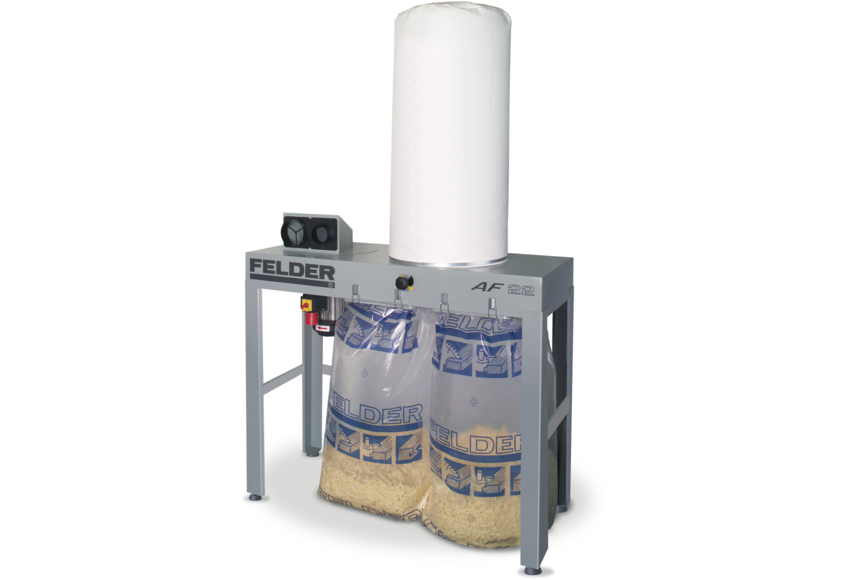

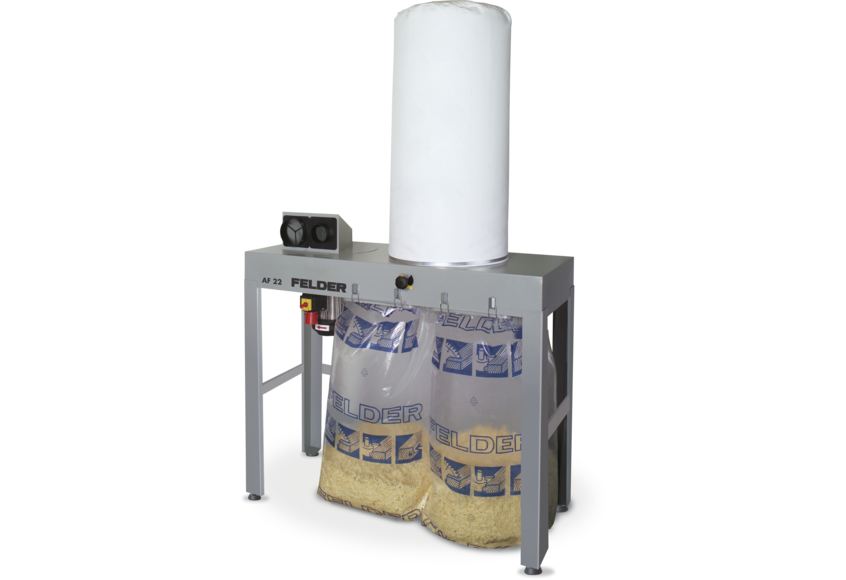

The AF 22 is the top seller among the standard dust extractors and available in a mobile or stationary version. With a footprint of just 1300 x 520 mm, the AF 22 is an excellent space saver. The extraction rate of 3100 m³/h offers a real top value that is unparalleled in this price-performance class. The two chip bags have a capacity of 400 litres and are extremely easy to replace thanks to the quick-change chip bag system. Depending on your requirements, the AF 22 can be ordered for both suction hose and suction pipe connection.

Record time! Chip bag change within 15 seconds!

4 seconds: Open latches and remove full chip bag
8 seconds: Clamp in new chip bag
3 seconds: Close latches

Highlights & Details

Easy change of the chip bags!

Save time!
Change the chip bag in just 15 seconds

4 seconds: to open the fasteners and remove the full chip bag
8 seconds: to attach a new chip bag.

15 seconds: record time!

Technical information

Air Flow Capacity [m³/h]	3100
Chip Bag Capacity [L]	2x 200
Dimensions [mm]	1300 x 580 x 2150
Dust Class	L
Execution	Stationary with adjustable feet
Extraction Connection Diameter [mm]	120
Frequency [Hz]	50/60
Max. Negative Pressure [Pa]	2150
Motor Power [kW]	3
Power (HP)	4
Voltage [V]	3x 400
