Dust Extractor AF 16
Air Filter Dust Extractor

Dust Extractor AF 16

3x 400VArt. No. 401-245
Select variant
3x 400V
Load variants

Quality dust extractor with large chip bag capacity and high performance Continue


Bulky goods
€967.00

excl. VAT , without shipping costs

€1,189.41

incl. 23% VAT , without shipping costs

Questions about this article? add to wish list remove from the wish list

Description

AF 16 - mobile dust extractor

The AF 16 with steel impeller including chip bag quick-change system with a chip bag capacity of 200 litres is the top seller among standard dust extractors and available in a mobile or stationary version. Requiring just 982 x 570 mm, the AF 16 is a real space-saver. The extraction rate of 3000 m³/h offers a real top value that is unparalleled in this price-performance class. The chip bag holds 200 litres and is incredibly easy to replace. Depending on your requirements, the AF 16 can be ordered for both extraction hose or extraction pipe connection.

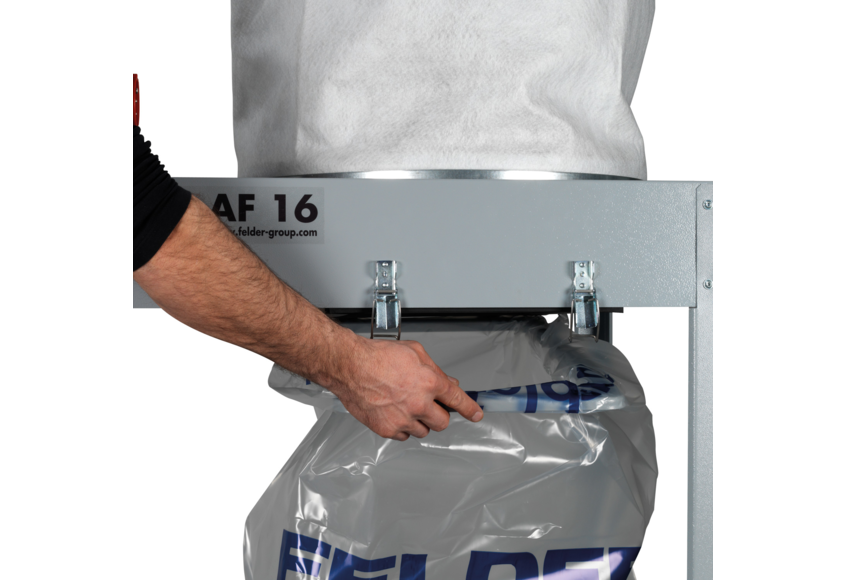

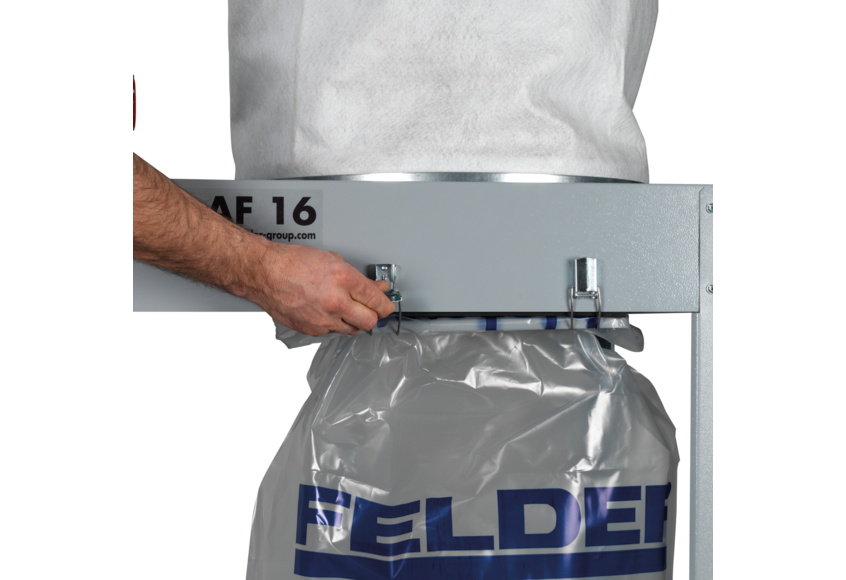

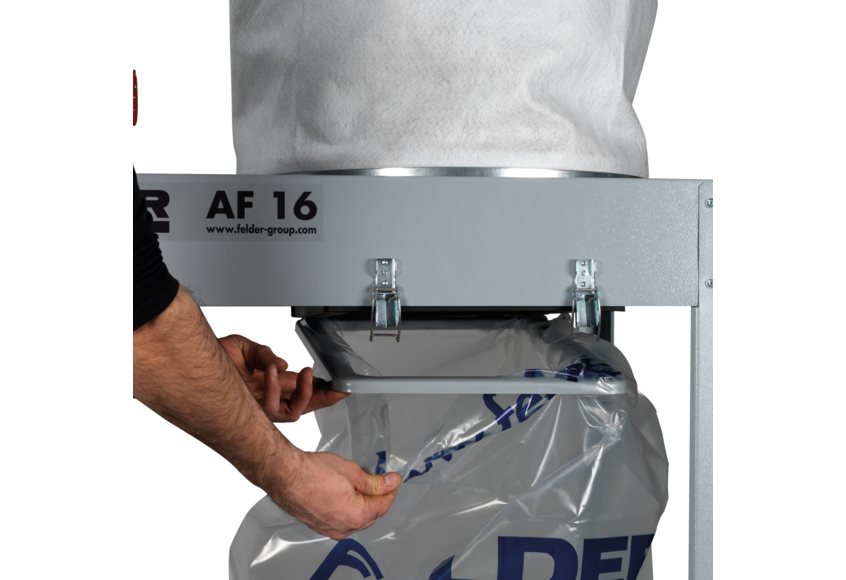

Record time! Chip bag change within 15 seconds!

4 seconds: Open latches and remove full chip bag
8 seconds: Clamp in new chip bag
3 seconds: Close latches


Technical information

Air Flow Capacity [m³/h] 3000
Chip Bag Capacity [L] 200
Dimensions [mm] 982 x 570 x 2063
Dust Class L
Extraction Connection Diameter [mm] 160
Frequency [Hz] 50/60
Max. Negative Pressure [Pa] 2150
Motor Power [kW] 3
Power (HP) 4
Total Height [mm] 2063
Total Length [mm] 982
Voltage [V] 3x 400
Width [mm] 570
Working Height [mm] 1057
