AF 22 Dust Extractor “Modular System”
Air Filter Dust Extractor

AF 22 Dust Extractor “Modular System”

3x 400V 50/60HzArt. No. 401-250
Select variant
3x 400V 50/60Hz
Load variants

Modular system for the Felder AF 22 high-performance dust extractor Continue


Bulky goods
€895.00

excl. VAT , without shipping costs

€1,100.85

incl. 23% VAT , without shipping costs

Questions about this article? add to wish list remove from the wish list

Description

Configure your own extraction system!

AF 22 Basic unit: with motor, steel impeller and chip bag quick-change system

Chip bag quick-change system
Chip bag capacity: double bag system with 2x 200 litres = 400 litres!
Special material dust bag for large extraction air dust content


Accessories

Special material dust bag with large filter surface including holding device (401-274)
Cartridge dust filter system made of polyester fleece (02.1.132)
Rolling carriage for extraction and filter station AF 22 (400-260)
Wall mounting kit for extraction and filter station AF 22 (401-261)

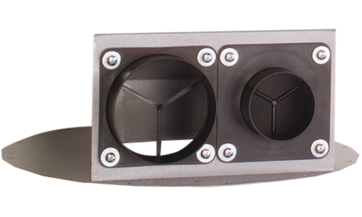

Hose extraction connections Ø 120 mm and 80 mm (401-272)

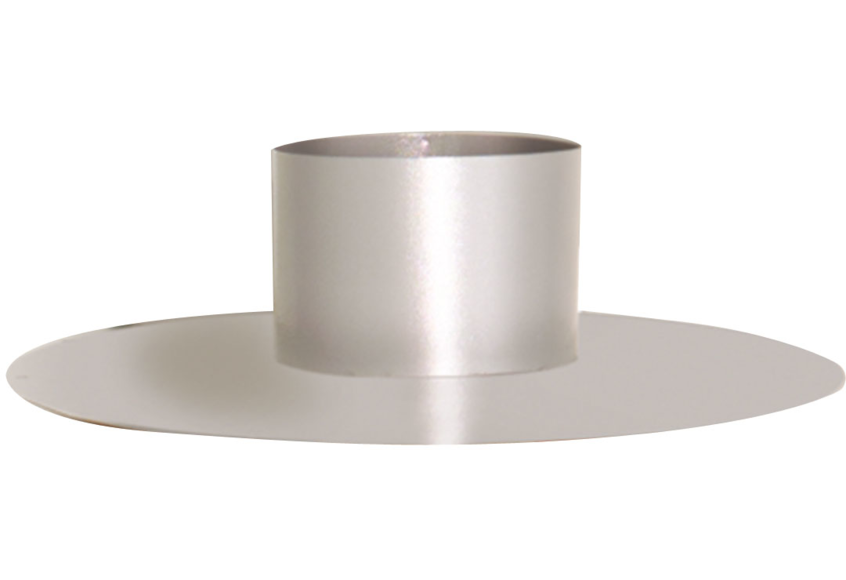

Pipe extraction connection Ø 160 mm (400-273)

Technical information

Air Flow Capacity [m³/h] 3100
Chip Bag Capacity [L] 2x 200
Dimensions [mm] 1300 x 580 x 2150
Frequency [Hz] 50/60
Max. Negative Pressure [Pa] 2510
Motor Power [kW] 3
Power (HP) 4
Voltage [V] 3x 400
