Sliding Table Panel Saw kappa 550 e-motion

table saws kappa 550 e-motion format4 wood panel plastic
Select model
kappa 550 e-motion
Click 'Get Free Quote' to customize Now customizable
%DEAL%SAVENOW!
kappa 550 x-motion
Click 'Get Free Quote' to customize Now customizable
%DEAL%SAVENOW!
kappa 550
Click 'Get Free Quote' to customize Now customizable
%DEAL%SAVENOW!
table saws kappa 550 e-motion format4 wood panel plastic

Powerful. Smart. Safe. The new edition of the successful top model sliding table panel saw


Design, precision, automation and safety put in a nutshell in the smartest of ways. For more than a decade, the kappa 550 has been the first choice for sliding table panel saws and in its new edition it continues to be right at the cutting edge. Individual specifications, an intelligent operating concept and numerous new impressive Format4 features ensure maximum efficiency and a noticeable increase in productivity.

The e-motion features of the Format4 kappa 550 impress with an automatic rip fence, unlimited tool storage and programmable cutting sequences in the smart, in-house software. All axes of the machine can be controlled ergonomically and intuitively by the central operating unit with 15 "touch screen.

The Format4 premium sliding table panel saw kappa 550 is also the world's first sliding table saw with the revolutionary PCS® safety system.

FORMAT4. Uncompromising expertise for the highest of requirements

The Felder Group premium brand has met the highest standards of professional users since 2001. The customised high-performance solutions are uncompromisingly innovative, offer maximum operating comfort and complete productivity.

The most important highlights at a glance

43014_43015-smart-touch (1).png

Variants

Models
kappa 550 e-motion
  • Your benefits

kappa 550 e-motion

kappa 550 e-motion
table saws kappa 550 e-motion format4 wood panel plastic

High-precision premium sliding table panel saw with 202 mm cutting height and patented X-Roll® sliding table as well as the worldwide unique PCS® safety system.

The e-motion equipment convinces with controlled rip fence, unlimited tool storage spaces and programmable cutting sequences on the 15" touch screen.

0

kappa 550 x-motion

kappa 550 e-motion
table saws kappa 550 x-motion format4 wood panel plastic

High-precision premium sliding table panel saw with 202 mm cutting height and patented X-Roll® sliding table for cutting lengths up to 3700 mm as well as the worldwide unique PCS® safety system.

The x-motion equipment include a controlled rip fence, 9x99 tool storage locations and programmable cutting sequence on the 10.1" touch screen.

1

kappa 550

kappa 550 e-motion
table saws kappa 550 format4 wood panel plastic

High-precision premium sliding table panel saw with 202 mm cutting height and patented X-Roll® sliding table for cutting lengths up to 3700 mm as well as the worldwide unique PCS® safety system.

2

... FORMAT4 Premium machines for premium requirements

  • Constantly high performance in industrial continuous operation
  • Customer specific optimised production solutions
  • Solid design with premium components
  • Many variations of specification packages with high-tech solutions
  • Complete engineering precision
  • Premium user comfort
  • Award winning design
  • Quality and precision from Austria
  • Uncompromised productivity
  • Perfect service package before, during and after the purchase
  • Tailor made financing solutions
  • 67 years of mechanical engineering experience

Details

The proven Format4 saw unit made from cast iron offers not only high performance and precision but also extreme smoothness and vibration absorption.

  • 3-axis “Control” scoring unit
  • Scoring unit park position
  • Change the saw blade without tools!
  • Large cutting depth, even with a scoring unit
  • Spraying equipment for the processing of non-ferrous metals and plastics
  • Saw unit with “Easy-Glide” tilt segment guiding system
  • Tilting of saw-blade 0°-46°
  • Oversized saw arbor with double bearing trunnions

With a cutting height of 202 mm, the kappa 550 overcomes the limitations in your workshop. These are the new, extraordinary values in the premium class of sliding table panel saws!


146 mm cutting height at 45° - this turns mitre cuts of oversized workpieces into a "piece of cake".

  • High precision double-sided trunnion support system
  • High load-bearing capacity and operating life
  • Play-free tilt
  • Unaffected by dust
  • Completely maintenance free
  • No lubrication required
  • 6 year guarantee

The circular saw unit tilts thanks to the tried-and-tested Format-4 "Easy-Glide"­­­ swivel segment guide. The "sliding shoe guides" on the large-sized swivel segments are made of a synthetic, wear-free high-performance material, which is dust-resistant and requires neither maintenance nor lubrication.

The „Easy-Glide“ system comes with a 6-year warranty!

  • Absolute vibration-free machining
  • Incredible power transmission due to the ultra efficient Poly-V-belt drive technology
  • By default: Speeds 3000/4000/5000 rpm, 2800 and 4000 rpm in case of 15 kW motorisation
  • On request: continuously variable speed 2000-6000 rpm

Serious accidents on the sliding table panel saws are a thing of the past

  • PCS detects accident hazards before contact with the saw blade.
  • PCS eliminates the hazardous situation in milliseconds.
  • PCS is 100% safe against damage to machine and saw blade.
  • PCS supports safe operation with the saw blade.
  • PCS supports groove cuts.
  • PCS is ready to be used again at the push of a button.
  • PCS requires no additional maintenance and cleaning cycles.
  • PCS works without additional external energy sources and without external sensors or video systems.
  • PCS is resistant to dust and dirt.

Find out more about PCS® here

*PCS® does not replace any of the legal protective devices required. The machine must be operated with the splitter and the saw guard properly installed according to regulations.


In the overhead saw guard handle a signal lamp is integrated, which indicates the operating status of the PCS® to the operator.


Choose from four types of absolutely powerful scoring saw units:

  • „Classic“ with a scoring blade Ø 120/125 mm
  • „Automatic“ with automatic raising and lowering
  • "2-axis controlled", height and lateral position
  • "Control", with 3 controlled axes (height, width, lateral
    offset) and parking position

All units combine tried and tested operation with drive technologies for perfect scoring results. Guaranteed by the scoring saw blade diameter of 120/125 mm and the speed of 8600 rpm (10,300 rpm at 60 Hz).

A red LED strip immediately signals the operation of the scoring unit and offers even more working safety. (Option)

Removing the scoring blade when using large diameter saw blades is no longer necessary! The new Format4 parks the scoring blade at the touch of a button, leaving enough space for a large diameter blade, and in doing so, saves valuable production time. The park position also protects the scoring unit from dirt and resin build-up.


Thanks to the removable circular saw flange and table insert, adjustable dado tools up to 19.5 mm can be used.

Quick and easy blade change with only one tool, thanks to the „Quick-Lock“ system.


The clamping system is maintenance free and offers premium comfort for many years: Change saw blades and riving knives effortlessly and literally in the blink of an eye.

Your Format4 can be optionally ­fitted with a spraying unit. High performance lubricating oil can be sprayed directly onto the saw blade, transported via piping from the spraying unit.

The newly developed overhead saw guard and dust removal system deliver perfect extraction results. The overhead saw guard, with its striking design, runs on linear guides that help to facilitate the height adjustment. The dust and shavings are sucked from the saw guard into the extraction pipe via a short hose. The dust extraction below the table encloses the complete saw unit. The dust channel is the perfect design to provide an optimum air flow and perfect main blade and scoring unit extraction results.
The maintenance free linear laser is mounted to the overhead saw guard and can be adjusted to any position. The easily visible cutting marker makes it easier to trim or cut along cracked wood.
  • Table scale as standard
  • Fine adjustment as standard
  • Optional electronic digital indicator for the standard rip fence
  • Optional position control, rip capacity reading from the electronic digital indicator. The smooth movement of the rip fence, feels like it’s hovering over the cast iron table. The single-handed quick clamping and the fine adjustment ensure quick and accurate setting of the rip fence to your required settings! The aluminium fence can be adjusted for better workpiece infeed or brought into a face down position when machining narrow workpieces with a tilted saw blade.

3-axis positioning simultaneously - up to 50% time savings compared to other premium manufacturers


The rip fence is positioned by a motor and runs via a dust-free integrated ball spindle in the saw table. The 1/10 mm precision, the high positioning speed, as well as the simultaneous positioning of the crosscut fence, saw blade height and saw blade angle ensure precision and save valuable working time.

  • Automatic dimensional correction at lying stop ruler
  • Optional on the x-motion model
  • Standard on the e-motion model
  • A collision between rip fence with saw blade is avoided by coordinating the tool database with the positioning control system
  • Parallel stop over the entire Cutting width can be swivelled
Generously dimensioned and designed for the highest loads, "floats" the aluminum format sliding table on “X-Roll”, a highly developed, modern Guide technology for Format4 format sliding tables. Through the x-shaped (“X-Roll”) arrangement of the rollers distributes the occurring pressure load optimal in all directions. The linear support of the steel rollers the hardened and ground guide surfaces guarantee unrivaled precision and smoothness. "X-Roll" ensures you the quality and precision that you expect from your new sliding table saw. And here's another one Reason to choose Format-4: underline 10 years factory warranty the reliability of "X-Roll".
As an option, it is also possible to equip the saw with the wireless push button control “ON” switch of the main blade and scoring blade to the sliding table, speeding up the work process further.
The tried and tested "X-Roll" sliding table with linear guide system is now equipped with a stainless steel latch plate which enables the sliding table to be locked in almost any position.

For crosscuts between +45° and –45°, the crosscut fence is set with a mitre scale, which is integrated into the sliding table. The T-slot and lateral holders on the format sliding table allow for quick assembly without tools. The mitre scale and the magnifying glass on the fence stop, readable from the operating area, allow you to make precise adjustments.

  • Easy clamping of workpieces with maximum flexibility, can be used on all panel saws and spindle moulders that have a sliding table
  • Easy set up due to magnetic fittings
  • Safety cylinder ensures maximum working safety
  • Pressure bar function is possible with every sliding table length
  • Locking height 95 mm
  • Clamping force approx. 300 kg
  • The ideal accessory for parallel cuts on the sliding table. Use your sliding table and the outrigger together with the rip fence to guarantee an exact workpiece positioning. The rip fence is clamped to the sliding table. The integrated scale from 25 to 1000 mm can be easily read through a lens.

    One of the valuable accessories in daily use on woodworking machines is the patented double mitre gauge from Format4. It enables double mitre cuts on workpieces of different widths at any angle. The input of the workpiece widths A, B and the input of the desired frame angle, is carried out on the integrated computer via the keypad. The resulting settings appear correct to within a tenth of a degree on the display. Just set the double mitre gauge at the calculated value and work away with a result of … pinpoint accuracy! The fence stop on the fence plates can be adjusted up to 1350 mm with the scale. Depending on the set angles, the length compensating vernier scale is available. This feature also enables you to set the exact workpiece length when making mitre cuts.

    No time wasted trying to find the correct angle and one hundred percent precision in adjustment and positioning, without any reading errors, are just some of the advantages of the precision mitre index system. High-precision rest points allow the dimensionally accurate Creation of polygons such as 5.625° (32 corner), 11.25° (16 corner), 22.5° (octagon). Additional rest points at 15°, 20°, 25°, 30°, 35°, 40° and 45° can be selected as well as push and thrust. Each resting point is equipped with a length compensation. The high-precision degree raster index System is set at the factory and each resting point can be individually be fine-tuned. That shapely adapted to the machine design degree grid index system boosts your productivity into a unique price-performance ratio.


    The 8x ball bearings, integrated guide rollers and bearings of the outrigger table ensure an incredibly smooth operation upon maximum loading capacity. The support rail is moved along an “X-Roll” guiding system and is fast and fine-adjustable. The LED display enables you to set the required angle to one tenth of a degree. The fence can be tilted to any position between -45° and +45° and guarantees precise mitre cuts.

    The crosscut fence on the outrigger table can be easily and quickly tilted variably from zero to 45°. The large dimensioned, ergonomic clamping lever can be used at every angle.

    1937-arretierhebel (2).png

    Infinite adjustment range –46 bis +46°. The LED display enables you to set the required angle to one tenth of a degree. Mitre length compensation is done via the vernier scale with the standard fence, with the CNC crosscut fence the length compensation is automatic.


    The outrigger table can be swung out of the way with ease! No more time consuming, complicated assembling and removing of the outrigger table. The outrigger table swing away system ensures extreme ease of use and at the same time can provide you with extra working space when you need it. Back-friendly ergonomic work is also guaranteed.

    The new full surface and magnetic mounted supports on the outrigger table offer an increased support surface and guarantees a safe grip and a stable support for the processing of smaller workpieces.
    At last: quick, comfortable and effortless, removal and installation of your outrigger table with the help of the transport and mounting unit. Another positive aspect: your outrigger can be conveniently stored away!

    On request, we will equip your Format4 with the digital telescopic fence. Below, you see the cleverly integrated electronic digital scale with values correct to 0.1 millimeter. Additional functions, for example the setting of successive measurements, make your daily working life easier.

    The digital angle and length compensation module "digi-compensation plus" for "X-Roll" or the outrigger table parallelogram, compensate any length deviations occuring during angle adjustment of the crosscut fence. The direct communication with the controls, also enables it to compensate the fence position of the crosscut stop to the width of the tooth and the tilt of the saw blade. This ensures that you always get an exact measurement without any recalibration when using different saw blades.


    The telescopic fence enables crosscuts of up to 3200 mm. Top class engineering and ease of use are features which are a part of the standard equipment. The scale inclined towards the operating side and the read-out lens on the fence stop ensure precise settings.

    kappa 550 e-motion

    All axes of the machine can be controlled ergonomically and intuitively by the central operating unit with 15 "touch screen. The in-house software with graphical user interface, a multitude of programs, a USB interface and the prepared network connection make work easier and guarantee efficiency and maximum productivity. The USB interface for importing and exporting data is prepared for network connection and remote maintenance.

    Program memory

    •  Tool database (incl. scorer Position for 2-axis scorer and scorer control)
    •  Editing programs in general
    •  Programs for the respective function
    •  Memory of the last five input values
    •  Import and export tool database, program memory
    •  Remote maintenance via Teamviewer

    functions

    •  Parking position (rip fence, scorer controls)
    •  Movement of the axes in jog mode
    •  Incremental method of Axles
    •  Calculator
    •  Administrator functions

    Cutting programmes / outrigger table functions / crosscut fence:

    • Wrong Mitre
    • Compound Mitre Cut (except with controlled crosscut fence)
    • Processing of the cutting plans of a cutting optimisation software
    • Mitre Cut

    Cutting programs / functions in conjunction with a controlled rip fence:

    • Rebate
    • Groove
    • Notches
    • Bevel Cut
    • Diagonal cut plus

    (*Position controlled rip fence Option)

    Upon request, the "smartouch" machine control system can be extended with numerous other programs for geometric functions: knee bar, parallelogram, trapezoid, polygon, staircase, triangle, pyramid, cuboid, slots / tenon, corner bench rest


    Every cut with the Format4 sliding table saw is a masterpiece of precision. For example, when cutting a pyramid, which is one of 18 predefined cutting programs.

    Rabbets, grooves, notches, wrong mitre, rafter cut and various geometric shapes, in short videos we show you how it works: Enter workpiece shape and workpiece dimensions on the touch screen, follow the visual cutting plan - done.

    View cutting program videos here

    *Please note that some of the cutting programmes shown are not possible on machines without double tilt.


    The convenient parts list holder with A4 clipboard is mounted on the overhead control panel, keeping your parts lists in sight at all times.


    All processing phases can be carried out quickly, efficiently and centrally as a result of the integration of the Format4 cutting optimisation system into the machine and operating concept. Training is not necessary as the user interface is intuitive, clear and easy to use.

    Not only does the label printer enable the workpieces to be labelled correctly, it also enables a logical post-processing. This makes it possible to load programs for subsequent processes on the CNC and edgebanders simply by using the bar code scanner. Save valuable production time with the label printer and increase productivity, quality and as a result, your profit.
    The scoring unit blade width and height adapt automatically to the stored tool information and also to the respective teeth width of the main saw blade. Any changes to these standard scoring settings can be saved and retrieved when using the same tool in the future.

    Upon request we can equip your kappa with LED lighting and an integrated tool compartment for 4 saw blades with a diameter of max. 400 mm, 1 saw blade with a diameter of max. 550 mm and 2 splitters.

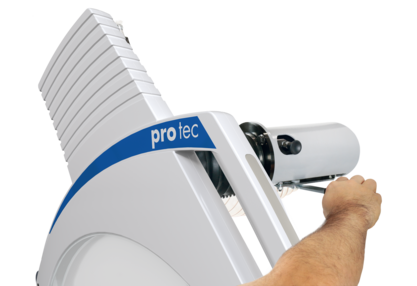

    The overhead saw guard can be unlocked with one movement and completely swung away from machine table area. If desired, the overhead saw guard can be unlocked directly via a lever on the hood.


    No time wasted trying to find the correct angle and one hundred percent precision in adjustment and positioning, without any reading errors, are just some of the advantages of the precision mitre index system. High-precision rest points allow the dimensionally accurate Creation of polygons such as 5.625° (32 corner), 11.25° (16 corner), 22.5° (octagon). Additional rest points at 15°, 20°, 25°, 30°, 35°, 40° and 45° can be selected as well as push and thrust. Each resting point is equipped with a length compensation. The high-precision degree raster index System is set at the factory and each resting point can be individually be fine-tuned. That shapely adapted to the machine design degree grid index system boosts your productivity into a unique price-performance ratio.

    The e-motion models can be equipped with the CNC controlled crosscut fence. The controlled crosscut fence can be used on both sides of the outrigger and is equipped with two fence stops. The maximum adjustable length measures 3400 mm. The extendable component can be removed to save space. The length compensation takes place automatically depending on the set angle.
  • Electronic crosscut fence with 2 crosscut stops and extendable to a maximum of 3400 mm
  • Automatic angle/length compensation
  • 1033-gesteuerterablaengenanschlag.png

    kappa 550 x-motion

    controls
    kappa 550 x-motion: 10" touchscreen*
    kappa 550 e-motion: 15" touchscreen

    All axes of the machine can be controlled ergonomically and intuitively by the central operating unit with touch screen. The in-house software with graphical user interface, a multitude of programs, a USB interface and the prepared network connection make work easier and guarantee efficiency and maximum productivity. The USB interface for importing and exporting data is prepared for network connection and remote maintenance.

    Program memory

    •  Tool database (incl. scorer Position for 2-axis scorer and scorer control)
    •  Editing programs in general
    •  Programs for the respective function
    •  Memory of the last five input values
    •  Import and export tool database, program memory
    •  Remote maintenance via Teamviewer

    functions

    •  Parking position (rip fence, scorer controls)
    •  Movement of the axes in jog mode
    •  Incremental method of Axles
    •  Calculator
    •  Administrator functions

    Cutting programmes / outrigger table functions / crosscut fence:

    • Wrong Mitre
    • Compound Mitre Cut (except with controlled crosscut fence)
    • Processing of the cutting plans of a cutting optimisation software
    • Mitre Cut

    Cutting programs / functions in conjunction with a controlled rip fence:

    • Rebate
    • Groove
    • Notches
    • Bevel Cut

    (*Position controlled rip fence Option)


    The convenient parts list holder with A4 clipboard is mounted on the overhead control panel, keeping your parts lists in sight at all times.


    All processing phases can be carried out quickly, efficiently and centrally as a result of the integration of the Format4 cutting optimisation system into the machine and operating concept. Training is not necessary as the user interface is intuitive, clear and easy to use.

    The scoring unit blade width and height adapt automatically to the stored tool information and also to the respective teeth width of the main saw blade. Any changes to these standard scoring settings can be saved and retrieved when using the same tool in the future.

    Upon request we can equip your kappa with LED lighting and an integrated tool compartment for 4 saw blades with a diameter of max. 400 mm, 1 saw blade with a diameter of max. 550 mm and 2 splitters.


    The overhead saw guard can be unlocked with one movement and completely swung away from machine table area. If desired, the overhead saw guard can be unlocked directly via a lever on the hood.

    The rip fence can be fitted with an electronic digital display. The perfect integration of the electronic unit allows you to turn the display around 90°, so the values can be clearly seen and read from the operating area. Additional functions such as the input of incremental measurements make your daily working life easier. Further highlights:
  • Brightly illuminated red LED display facilitates the reading of values
  • No batteries are required as it is directly connected to the machine’s power supply
  • Recognises automatically whether the fence is in the vertical or horizontal position
  • Measurement compensation of the saw blade tooth width
  • 1016-elektronischedigitalanzeige.png
    The highly visible scale on the saw table enables accurate settings and the rip fence has a tilt and inversion function.
    The e-motion models can be equipped with the CNC controlled crosscut fence. The controlled crosscut fence can be used on both sides of the outrigger and is equipped with two fence stops. The maximum adjustable length measures 3400 mm. The extendable component can be removed to save space. The length compensation takes place automatically depending on the set angle.
  • Electronic crosscut fence with 2 crosscut stops and extendable to a maximum of 3400 mm
  • Automatic angle/length compensation
  • 1033-gesteuerterablaengenanschlag.png

    kappa 550

    CNC engine control with red LED displays, blade height and angle positioning control with automatic cutting height correction when pivoting. All possible functions are available in jog mode. Including LED display for the selected speed and 50 storage locations in the tool database.
    The rip fence can be fitted with an electronic digital display. The perfect integration of the electronic unit allows you to turn the display around 90°, so the values can be clearly seen and read from the operating area. Additional functions such as the input of incremental measurements make your daily working life easier. Further highlights:
  • Brightly illuminated red LED display facilitates the reading of values
  • No batteries are required as it is directly connected to the machine’s power supply
  • Recognises automatically whether the fence is in the vertical or horizontal position
  • Measurement compensation of the saw blade tooth width
  • 1016-elektronischedigitalanzeige.png
    The highly visible scale on the saw table enables accurate settings and the rip fence has a tilt and inversion function.

    Technology Data

    Electrics

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    001
    3x 400 V motor voltage
    S
    S
    S
    002
    3x 230 V motor voltage
    W
    W
    W
    004
    50 Hz motor frequency
    S
    S
    S
    005
    60 Hz motor frequency
    W
    W
    W
    006
    10 HP (7.35 KW) S6/40%, 3 speeds 3000/4000/5000 rpm
    S
    S
    S
    007
    13,5 HP (10 KW) S6/40%, 3 speeds 3000/4000/5000 rpm
    O
    O
    O
    008
    20.0 HP (15.0 KW) S6/40%, 2 speeds 2800/4000 rpm (!002)
    O
    O
    O
    10
    Star-delta start
    S
    S
    S
    17
    10 HP (7.35 KW) S6/40%, variable speed 2000–6000 rpm !002
    O
    O
    O
    18
    13.5 HP (10 KW) S6/40%, variable speed 2000–6000 rpm (not possible for 3x 230 V)
    O
    O
    O
    12
    Trigger switch for dust extractor start up
    O
    O
    O

    Saw unit

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    -
    Saw blade diameter 250–550 mm, max. cutting height 202 mm
    S
    S
    S
    -
    Electrical height adjustment
    S
    S
    S
    -
    Electrical angle adjustment 0°–46°
    S
    S
    S
    -
    Powder coated steel extension to increase the cutting length by 1200 mm
    S
    S
    S
    72
    Anodised aluminium extension to increase the cutting length by 1620 mm
    O
    O
    O
    73
    Spraying unit to assist in processing light metals or plastics (!1000)
    O
    O
    O
    74
    “Classic” scoring unit with 1.1 kW motor and scoring blade Ø 120/125 mm which can be used in combination with a max saw blade Ø 400 mm (max saw blade Ø without the scoring blade is 500 mm)
    O
    O
    O
    75
    “Automatic” scoring unit with 1.1 kW motor and scoring blade Ø 120/125 mm which can be used in combination with a max saw blade Ø 400 mm. Rise and fall of the scoring blade is automatic.(max. saw blade D without the socring blade is 500 mm)
    O
    O
    O
    77
    Flange set for scoring blades with a 22 mm arbor instead of 20 mm for the “Classic” and “Automatic” scoring units
    W
    W
    W
    79
    Scoring unit status light (mandatory option when in combination with PCS and scoring unit)
    O
    O
    O
    78
    "Easy-Lock" - Tool-free quick change system of the main saw blade and riving knife, can be retro-fitted on all kappa 550’s
    O
    O
    O
    780
    Quick-Lock, the saw blade changing system for main circular saw blade, anti-twist protection by driving pins in flange
    O
    O
    O
    820
    Clamping unit for slotting saws
    O
    O
    O
    71
    Tool compartment with LED machine lighting
    -
    O
    O
    69
    2 Axis controlable scoring unit in both lateral and vertical direction
    -
    O
    O
    76
    “Control” scoring unit with 3 axis control (height, width, lateral positioning) and park position. 1.1 kW motor, scoring blade Ø 120 mm which can be used in combination with a max saw blade Ø 400 mm (max saw blade Ø is 550 mm, with the scorer in the park position). Scoring blade width is adjustable between 3.0 and 3.8 mm and is included with the unit.
    -
    O
    O

    Control Systems

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    1000
    Preventive Contact System – PCS®, Saw blades with a diameter of up to 400 mm lower completely in the case of danger. Larger saw blades will only partially lower. PCS® can be deactivated for the cutting of electrically conductive materials. PCS® does not replace any of the statutory protective devices. According to regulations, the machine must be operated with splitter and sawguard . (!17 / !18)
    O
    O
    O
    20
    kappa control with LED display showing the height, angle and rpm integrated into the control panel on the machine frame
    S
    -
    -
    21
    x-motion control 10" colour screen with touch function on the control panel at eye level. USB interface and preparation for network connection. The panel can be positioned optimally in the working area of the operator and be completely swung away if necessary
    -
    S
    -
    26
    Plug connection for quick dismantling of the saw guard and overhead control panel
    -
    O
    O
    22
    e-motion control 15" colour screen with touch function on the control panel at eye level. USB interface and preparation for network connection. The panel can be positioned optimally in the working area of the operator and be completely swung away if necessary
    -
    -
    S
    100
    Software package e-motion plus
    -
    -
    O

    Safety devices

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    -
    Overhead guard is height adjustable and can be swung away, includes a cover for 90° cuts and a separate cover for mitre cuts
    S
    S
    S
    80
    LASER cutting line marker on the overhead saw guard
    O
    O
    O
    81
    Remote unlocking to allow the saw guard to be swung away
    O
    O
    O

    Cutting width and rip fence

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    -
    1000 mm rip capacity, powder coated steel
    S
    S
    -
    83
    1250 mm rip capacity, anodised aluminium
    O
    O
    -
    84
    1600 mm rip capacity, anodised aluminium
    O
    O
    -
    -
    1200 mm rip fence with micro fine adjustment which can be tilted away
    S
    S
    -
    85
    Rip fence with digital indicator and automatic cutting width compensation for tilted saw blade.
    O
    O
    -
    891
    Rip capacity 1000 mm with position control and digital readout on the rip fence.
    O
    -
    -
    86
    Rip capacity 1250 mm with position control and digital readout on the rip fence.
    O
    -
    -
    87
    Rip capacity 1600 mm with position control and digital readout on the rip fence.
    O
    -
    -
    891
    Rip capacity 1000 mm with position control and readout from the control panel at eye level.
    -
    O
    W
    88
    Rip capacity 1250 mm with position control and readout from the control panel at eye level.
    -
    O
    S
    89
    Rip capacity 1600 mm with position control from the control panel at eye level.
    -
    O
    O

    Sliding tables anodized, “X-Roll” guiding system

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    130
    2200 mm “X-Roll” sliding table with edging shoe
    W
    W
    W
    131
    2800 mm “X-Roll” sliding table with edging shoe
    S
    S
    S
    132
    3200 mm “X-Roll” sliding table with edging shoe.
    O
    O
    O
    133
    3700 mm “X-Roll” sliding table with edging shoe.
    O
    O
    O
    134
    Multiple locking mechanism on the sliding table (!130)
    O
    O
    O
    139
    On and off switch on the sliding table
    O
    O
    O
    139A
    On and off switch on the sliding table
    O
    O
    O

    Outrigger table and crosscut fence

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    160
    Outrigger table dimensions 1250 x 650 mm
    S
    S
    S
    161
    1250 x 650 mm (49” x 25”) “X-Roll” outrigger table with adjustable support and digital angle display
    O
    O
    O
    162
    1250 x 650 mm (49” x 25”) parallelogram outrigger table with digital angle display (!133)
    O
    O
    O
    163
    Precision mitre guide index system (#160)
    O
    O
    O
    164
    Extendable extrusion up to 500 mm on the outrigger table with work piece roller (!162, !169)
    O
    O
    O
    165
    Swing away device for the outrigger table (#072,!169)
    O
    O
    O
    166
    3200 mm crosscut fence, moves from 90°–45° with 2 crosscut stops as standard
    S
    S
    S
    167
    3200 mm crosscut fence with precise adjustment, tiltable from 90° to 45°, 1 stop digitally adjustable up to 1900 mm, telescope with analogue stop adjustment for up to 3200 mm.
    O
    O
    O
    168
    3200 mm crosscut fence with fine adjustment, pivots between 90° and 45° with 2 digital fence stops
    O
    O
    O
    175
    Crosscut fence with 2 digital stops, including calculation of the length compensation when the fence is at an angle (#161/162) Digi compensation plus
    O
    O
    O
    169
    Crosscut fence with CNC controlled crosscut stop, 120 mm to 1760 mm range, includes removable 3400 mm telescopic fence with a second stop (#161/162) (!160)
    -
    O
    O

    Packaging

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    221
    Preparation for container transport, palette 2100 mm x 1500 mm
    O
    O
    O
    223
    IPPC packaging
    O
    O
    O

    Machine control

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    61
    Thermo-label printer for interactive label printing (#23 K550X+E K590X+E)
    -
    O
    O

    Important Accessories

    kappa 550
    kappa 550 x-motion
    kappa 550 e-motion
    23
    Holding fixture for label printer
    -
    W
    W
    220
    604-110 - Part list holder with A4 clipboard
    -
    O
    O
    S ... Standard equipment O ... Option W ... Choice - ... not available
    The new Format4 Felder kappa 550 Sliding Table Panel Saw | Powerful. Smart. Safe
    FORMAT4 kappa 550 e-motion - Sliding table panel saw

    Customer service & maintenance

    Specially trained service personnel are always available to provide specialised on-site service for you. If the matter is urgent you can call our hotline centre for straightforward immediate help.  Contact our consultants or report your request conveniently online around the clock.

    Do you have any questions?

    We are happy to advise you online, over the phone or on-site at one of our more than 270 sales and service centres worldwide.

    Showrooms

    FELDER GROUP UK Ltd.

    FELDER GROUP UK Ltd.
    Unit 2 Sovereign Business Park, Joplin Court, Crown Hill
    MK8 0JP MILTON KEYNES
    Tel.: 01908 635000

    Business Hours Monday to Friday 09.00 to 17.00

    Felder Group Scotland

    Felder Group Scotland
    Unit 4 Lindsay Square, Deans Industrial Estate
    EH54 8RL Livingston
    Tel.: 01506 342250

    Business Hours please call for an appointment
