The compact sliding table panel saw for big demands

K 540 S – The evolution of the proven sliding table panel saw with even more efficiency and a cutting height of 140 mm.

The Felder K 540 S sliding table panel saw in its new edition with an advanced circular saw unit allows an impressive cutting height of 140 mm when using a 400 mm saw blade.. The electric scoring unit for scoring blades with a diameter of 120 mm is suitable for professional production in a class of its own combined with a 350 mm saw blade.

The swing away overhead saw guard and proven Felder system solutions such as the smooth-running “X-Roll” format sliding table and the "Easy-Glide” dual guiding system ensure highly professional working conditions as standard. The electric scoring unit, the patented "X-Roll" sliding table with up to 3200 mm and the outrigger crosscut fence up to 2600 mm meet all requirements for large jobs.

  • Efficiency meets ease of use: Impressive 140 mm cutting height with a saw blade diameter of 400 mm
  • Combined use of an electric Ø 120 mm scoring unit with a Ø 350 mm main saw blade
  • "Easy-Glide" tilting segment guide with 6 year guarantee
  • Patented "X-Roll" sliding table with 10 year guarantee
  • Cutting length 2500–3200 mm
  • Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300
  • Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)

Show more

FELDER. Quality and precision in a nutshell

Since 1956, a guarantee for perfect results with excellent ease of use and reliability in regular professional use. Woodworkers are always enthusiastic about the individual and solid solutions for small and mid-sized businesses.

The most important highlights at a glance

The new circular saw unit: Efficiency meets operating comfort
X-Roll - Precision guiding system
The rip fence

... Your decision for Felder, a risk-free decision

sliding table panel saw K 540 S Felder Felder Group woodworking
  • The right machine for every budget
  • Complete reliability in professional use
  • Tailor made machine solutions
  • High quality cast iron machine table and aggregates
  • Innovative detail solutions derived from 60 years of experience – already included in the standard configuration
  • First class manufacturing and finishing standards
  • Intuitive application concepts
  • Modern, distinct design
  • Quality and precision from Austria
  • Powerful and efficient
  • Complete package: Comprehensive service support

Details


The advanced circular saw unit with the patented tilt segment "Easy-Glide" impresses with a cutting height of 140 mm when using a Ø 400 mm saw blade. The electric scoring unit for scoring blades with a diameter of 120 mm can be used in combination with a Ø 350 mm saw blade.


The electronically balanced saw arbor with dual bearing seat system is powered via a Poly-V belt. This combination results in an almost perfect ­transmission of power to the saw blade.

The electrically driven Ø 120 mm scoring saw blade ensures tear-free cuts and is perfect for materials with a surface that easily tears off. The scoring saw blade can be adjusted in height without clearance by means of easily accessible adjusting screws.


The Felder 500 Series saw unit is fully compatible with Dado tooling. Thanks to a removable table insert and flanges, specialised Felder dado tooling can be used.

Highest operating safety and maximum flexibility when processing large dimensioned workpieces: the Felder overhead saw guard can be swung away easily and is always there where it is required.

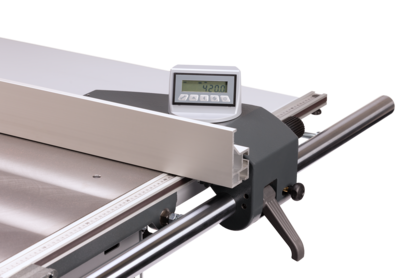

The single handed adjustment system ensures quick and accurate setting of the rip fence. A fine adjustment facility is included. The rip capacity amounts to 800 mm or optionally 1250 mm. The easy to read rip scale is perfectly integrated into the saw table. The aluminium rip fence plate can be moved backwards to optimise the feed of workpieces. Optional parallel cutting fence fine adjustment

The continuously developed linear guiding system from Felder has been astounding woodworkers since 1990. The high quality­ ­format sliding table guiding ­technology “X-Roll” comes with a 10 year Felder guarantee and offers amazing operating smoothness and is completely maintenance free. The 'x' design of the position of the roller bearings ensures that they move smoothly along hardened guides.

  • Easy clamping of workpieces with maximum flexibility, can be used on all panel saws and spindle moulders that have a sliding table
  • Easy set up due to magnetic fittings
  • Safety cylinder ensures maximum working safety
  • Pressure bar function is possible with every sliding table length
  • Locking height 95 mm
  • Clamping force approx. 300 kg
    • 1694-egl.png

    OUTSTANDING! The patented double mitre gauge from Felder allows for mitre cuts on pieces of differing widths and at any angle. Really easy to use: simply type in the desired angle as well as the widths of your workpieces on the keyboard. Immediately, you will receive the settings and can set the electronic double mitre gauge accordingly. The fence stop on the fence can be adjusted up to 1350 mm with the scale. Regardless of the angles set, the length compensating vernier scale allows you to compensate for the workpiece length.

    The crosscut fence 1300 mm for crosscuts between +45° and –45°. The fence can be attached to the sliding table without the use of tools. The end stop provides you with the exact 90° position. The bevelled mitre scale with accurate readout is visible from the operating area, enabling setting of the required crosscut value. The large crosscut fence stops are constructed in such a way that a small tongue on the stop fits perfectly into a groove on the fence. This keeps the stop firmly in place for both straight and mitered cuts.

    The outrigger table enables the user to process large and heavy workpieces. The four ball bearing rollers guide the telescopic support arm and ensure maximum precision and smooth running. The telescopic crosscut fence with mounting system and ergonomically designed scale with magnifying lens on the crosscut stop guarantees precise settings and crosscuts up to 2600 mm. The crosscut fence can be positioned between 90°-45° and has one crosscut stop as standard. There is a fixed end stop position for 90°.

    Accurate angle adjustments, efficient operation and calibration are all made possible by the precision mitre guide index system.

    • For rip and formatting cuts of large panel material
    • Floor guides are height adjustable, 4.5 m in length, consists of 3 sections

    The bevelled mitre scale with accurate readout is visible from the operating area, enabling setting of the required crosscut value.

    Technology Data

    Electrical setup

    K 540 S
    001
    3x 400 V
    S
    002
    3x 230 V motor voltage
    O
    004
    50 Hz
    S
    005
    60 Hz
    O
    008
    7.5 HP (5.5 kW)*
    S
    10
    Star-delta start is necessary from 7.5 HP and 3x230V
    O
    28
    Additional emergency stop
    O

    Saw and Scoring Unit

    K 540 S
    -
    Sliding table saw with tilting saw blade (90°–45°), maximum cutting height 140 mm with a 400 mm saw blade, 4000 rpm
    S
    71
    Digital indicator on handwheel for saw tilt
    O
    82
    Preparation for Dado tooling up to 19.5 mm in width
    O
    84
    Micro adjustable rip fence
    O
    75
    Electrically driven scoring unit Ø 120 mm with main saw blade Ø 315/(K540S: 350 mm)
    O
    76
    Cutting width 800 mm with full table, min. transport width 800 mm
    S
    77
    Rip capacity 1250 mm, min. transport width 800 mm
    O
    81
    Overhead saw guard for 800/1250 mm cutting width, swings away from the working area
    S

    Sliding Tables

    K 540 S
    133
    Dimension sliding table F, cutting length 2500 mm(98"), anodised** with edging shoe
    S
    134
    Dimension sliding table X, cutting length 2800 mm(110"), anodised** with edging shoe
    O
    135
    Dimension sliding table XL, cutting length 3200 mm(126"), anodised** with edging shoe
    O
    136
    Dimension sliding table anodised
    S

    Outrigger Tables and Crosscut Fences

    K 540 S
    161
    1300 mm Outrigger table for 1300–3200 mm sliding tables, Series 500
    S
    164
    Crosscut fence 1300 mm for all sliding tables
    O
    165
    Telescopic extension for crosscut fence 1300 mm to 2050 mm (#164)
    O
    166
    Crosscut fence 2600 mm for outrigger table (#160/161)
    S
    167
    Crosscut fence 3200 mm for outrigger table, with 2 crosscut stops instead of crosscut fence 2600 mm
    O
    169
    Crosscut fence 2600 mm(102") for outrigger table, “X-Roll”
    O
    170
    Precision mitre unit with pin locating system for outrigger table crosscut fence
    O

    General

    K 540 S
    -
    Working height in mm
    890
    -
    Min. transport width in mm
    800
    -
    Extractor connection port diameter in mm on overhead saw guard
    120/80
    -
    Weight kg (with standard configuration)
    680

    Important Accessories

    K 540 S
    223
    IPPC
    O

    Transport

    K 540 S
    221
    Preparation for container
    W
    S ... Standard equipment O ... Option W ... Choice - ... not available
