Edgebander tempora F600 60.06L

edgebanders tempora f600 60.06l format4 panel
Select model
tempora F600 60.06L glueBox
Click 'Get Free Quote' to customize Now customizable
tempora F600 60.06L
Click 'Get Free Quote' to customize Now customizable
edgebanders tempora f600 60.06l format4 panel

Format4 tempora F600 with glueBox: PUR-edge banding without glue pot.

Edgebanding needs to be as quick, easy and efficient as possible. To achieve this, the Format4 tempora models combine the core competences of speed, productivity, flexibility and ease of use in a convincing overall package. The final finishing results when processing both coiled and strip material convince with incredibly high standards.

Modern and optimised edge processing aggregates and a flexible machine body guarantees absolute stability and reliability even at the highest of processing speeds. The user friendly control options, x-motion plus and "m-motion" ensure absolute repeatability and individual configurable operating programs enable quick manual change of the aggregates as well as control via the smartouch control panel.

The Format4 tempora 60.06 L has a single or dual motor corner rounding unit with a workpiece height of up to 60 mm.

The patented "advantEdge" brings "invisible joints" to your workshop. You can equip your tempora individually with a single or twin-engine corner rounding unit and your desired finishing units on three unit spaces. The intuitive control unit smartouch with 10"or 16" touchscreen ensures maximum operating comfort and highest productivity.

The glueBox makes PUR glue processing easier and more convenient than ever before. Heat and water resistance, a very small glue joint as well as reduced glue consumption - all advantages of the PUR-glue can be used uncompromisingly with the glueBox. The PUR drawbacks such as complicated processing, dirty and hardened glue pots, annoying cleaning as well as the complex storage are a thing of the past with glueBox. Instead of the PUR adhesive in the glue pot of edge banding machines, a thin PUR adhesive strip in the glueBox is fused almost invisibly between the edge material and the workpiece.

FORMAT4. Uncompromising expertise for the highest of requirements

The Felder Group premium brand has met the highest standards of professional users since 2001. The customised high-performance solutions are uncompromisingly innovative, offer maximum operating comfort and complete productivity.

The most important highlights at a glance

edge bander glueBox Format4 Felder Group woodworking


tempora F600 60.06L glueBox
  • Your benefits

tempora F600 60.06L glueBox

tempora F600 60.06L glueBox
edgebanders tempora f600 60.06l gluebox format4 panel
  • Installation length: 4872 mm
  • Edge thickness: 0,4–6 (3) mm
  • Workpiece thickness: 8–60 (40) mm
  • Automation: m-motion and x-motion PLUS
  • glueBox PUR-adhesive tape| PUR-edge banding without glue pot
  • Complete edge processing

tempora F600 60.06L

tempora F600 60.06L glueBox
edgebanders tempora f600 60.06l format4 panel
  • Installation length: 4412 mm
  • Edge thickness: 0.4–6 mm
  • Workpiece thickness: 8–60 mm
  • Automation: m-motion and x-motion PLUS
  • advantEdge zero joint glue unit
  • Complete edge processing
  • Changeable gluepot with tool free quick change system

... FORMAT4 Premium machines for premium requirements

Edgebander tempora F600 Format4 Felder Group Woodworking
  • Constantly high performance in industrial continuous operation
  • Customer specific optimised production solutions
  • Solid design with premium components
  • Many variations of specification packages with high-tech solutions
  • Complete engineering precision
  • Premium user comfort
  • Award winning design
  • Quality and precision from Austria
  • Uncompromised productivity
  • Perfect service package before, during and after the purchase
  • Tailor made financing solutions


On both of the models (”m-motion“ and ”x-motion PLUS“), the pressure beam is positioned using a handle. The position of the pressure beam can be read precisely using the digital counter. On x-motion plus, a motorised pressure beam moves to the desired workpiece thickness


Your most important edge material, always at hand and stored with ease. With the optional support plate your edgebander can always be loaded with edge band material.


The practical edge storage system "storEdge" can be additionally equipped with a support plate.


Variable setting of the depth of cut of the premilling unit. With both equipment options, the settings are carried out manually using an indicator clock. The variable depth of cut can be adjusted and set between 0–2 mm.


Easy and careful handling of large-size and surface-sensitive workpieces Placed directly on the machine's infeed ruler and equipped with a 0.75 kW blower motor, a constant air cushion between the machine table and the resting workpiece ensures easy and gentle workpiece feed. The solid table construction with a 1050 x 400 mm supporting surface (with an additional air cushion table expandable to 2000 x 400 mm) and the flexible extendable frame guarantee maximum stability during workpiece feed.

The new smartouch control unit with 10.4" touch-screen and m-motion control enables a quick and easy selection and control of the aggregate as well as the complete monitoring of all machine functions.
  • Storage and loading of user-defined working programs
  • Selection of the motor-position controlled aggregates
  • Fine-adjustment of the aggregates in the range of 1/100th of a millimetre
  • Intuitive adjustable and self-explanatory display of the aggregates
  • Setting of the glue parameters (EVA or PUR)
  • Order specific selection of the aggregates
  • Fine-adjustment of the distance parameters
  • Maintenance plan, clear text error messages, odometer for total metres of material used
  • smartouch control unit and network connection reduces the manual settings to a minimum and enables a quick, easy and intuitive selection and control of the aggregate as well as the complete monitoring of all machine functions from the screen. The functions of smartouch include amongst other things:

    • Unlimited memory for user-defined edge programs
    • Maintenance plan, odometer for total metres of material used
    • Simple, self-explanatory representation of the units and their functions
    • Aggregate selection, exact fine adjustment of the motor positionable aggregates (accuracy of up to 1/100 mm) all from the main control panel
    • Glue temperature setting and automatic temperature reduction of the glue whilst in standby mode Now available with a monitor size of 10.4" and 15"

    Format4 edgeControl makes operation and adjustment of the tempora edgebanders even easier and more precise.

    The values ​​for edge and workpiece thickness that are recorded to the hundredth of a millimetre with the wireless measuring unit are transferred to the machine's smartouch operating unit via Bluetooth (workpiece thickness only with e-motion models). The controller recognises the measured values ​​and sorts them automatically according to workpiece or edge thickness. The operator then selects the desired setting values ​​from the measurement data log that contains the five last measured values. Smartouch automatically calibrates all required units to the exact dimensions.

    With edgeControl, production losses due to typing or measuring errors as well as tolerance deviations of the edge dimensions are eliminated.

    Two counter rotating, activation controlled and individually adjustable premilling units with diamond coated spiral cutters ensure first class edge processing before the material is glued to the edge. With the premilling unit you will achieve tear free edges when processing laminated material. After entering the exact dimensions, the premilling unit executes a perfect edge cut on your panels. The depth of cut can be electronically positioned on all of the e-motion models as standard.
    The operation controlled, high quality quartz infrared lamp warms the edge surface in front of the glue unit. This guarantees that the edging adheres to cold workpieces.

    The patented advantEdge aggregate from Format4 enables the optical zero joint when processing co-extruded edge and laser edge material. The aggregate is controlled by the workpiece and can be activated and deactivated directly from the control unit. advantEdge offers the homogenised optic finish of the workpiece with the panel and edge material, in particular with high gloss material. An edge material suited exactly to the material ensures a zero-joint line and as no time-consuming glue change of various colours is required, you profit from considerably reduced changeover times.


    Depending on the application, coiled and strip material from 0.4 up to 6 mm can be glued to panel materials up to 60 mm in thickness.


    Solid in its design, the first operation controlled motor driven roller presses the edge material on to the workpiece. The application control ensures that there can be no smearing of glue or movement of the edge material whilst processing. The two conical pressure rollers close the glue joint above and below.

    The end trimming unit consists of two inde­pendent saw units with high-frequency motors (12,000 rpm). Linear guides ensure maximum precision. The end trimming unit tilts from 0° to 10°. Depending on the machine specification, tilting is regulated manually or pneumatically via the control panel (e.g. 10° bevel cut, front only, rear only or front and rear).

    The multi-functional flush, radius and thin-edge bevel trimming unit consists of two independent trimming units with high frequency motors (12,000 rpm). Linear guides guarantee the highest possible precision with little maintenance required. The easy adjustment and setup of the unit means that it is extremely quick to change between different edge thicknesses and profiles. Depending on the equipment option chosen, the multifunctional trimming unit can either be adjusted manually or using electro-motors, controlled via the control panel.

    The “Nesting” Package optimises the processing of workpieces with hinge borings or surfaces with acute angles.

    No more time consuming postprocessing of the workpiece! The Format4 corner rounding unit provides the perfect "finish" of workpiece corners (for both softforming and postforming materials) for edge materials from 0.4 mm to 3.0 mm and a processing height of 60 mm and a feed speed from 10 m/min. The solid cast iron construction, linear guides and a high-quality spindle with a starting clutch ensure long-term precision. The corner rounding unit is controlled from the control panel, naturally with the option of choosing which corners need to be rounded (only on the front of the workpiece, only on the back, or both on the front and on the back).

    Especially for post and softforming the tempora 60.06L with double motor corner rounding unit enables a new dimension in edgebanding. Workpieces with different profiles can be completed in just a single processing step, the need for time consuming subsequent processing is rendered redundant by the perfect finish.

    The radius surface receives a light scraping, removing any remnants from the trimming process and ensuring a smooth “finish”. The fine adjustment is manual. The radius scraper unit can be disengaged either manually or using electro-motors from the control panel, depending on the model. On all of the e-motion models, the fine adjustment is carried out on the colour touch screen.

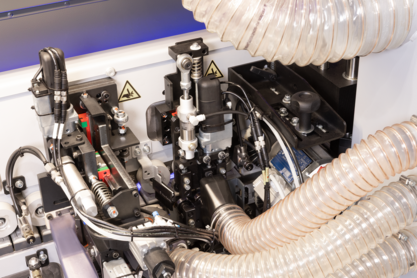

    For a perfect surface finish. The light scraping function of the surface scraper knives removes all glue residues from the glue bond on the work­piece surface. One more step towards the perfect and completely finished workpiece.
    Low consumption guaranteed due to application controlled spray nozzles to apply separation solution for PUR glue, antistatic solution and lubricant for sensitive edging materials and cleaning agents and polish for clean workpieces and a perfect “finish”.
    The unit is made up of two independent electric motors, which are equipped with cotton brushes. The task of the buffing unit is to clean and polish the top and bottom part of the edge. The buffing unit gives a super finish for ABS and PVC edging material. The machine can, on request, be equipped with spraying equipment to apply polish onto the workpiece.

    The puReady nitrogen box makes you flexible in the use of PUR adhesives. In the future you can stay relaxed during production breaks, colour or glue changes. With puReady, your PUR adhesive, stored in nitrogen, remains fresh and processable for a long time. This keeps you flexible in edgebanding and also facilitates the cleaning of the glue pots.

    • Delays reaction processes in the PUR adhesive and thus prolongs the processing time
    • Facilitates and speeds up the cleaning process
    • Increases flexibility when using different PUR colours and PUR adhesives
    • Provides space for the storage of two glue pots
    • Simple operation and clear control displays
    • Mobile and space saving without power- and compressed air connection
    • Compatible with all glue pots of the tempora edge banders F600 / F800

    The Format-4 storEdge offers space saving storage of your edge material, replaces the edgebander support plate and can be placed next to the machine as and when required.


    tempora F600 60.06L glueBox

    The glueBox attaches a thin PUR tape between the edge and the workpiece and fuses the two components together almost invisibly. Through heat activation of the glue perfect adhesion is achieved.

    • Fast: Ready to use in only 90 seconds
    • Flexibility: Available in 2 coiled lengths of 25 and 100 meters and in 4 heights of 16, 19, 28 and 40 millimeters
    • Comfort: Tool free PUR tape replacement
    • Efficiency: Almost immediate switching to conventional glue pot for EVA glue and vise versa
    edge bander glueBox Format4 Felder Group woodworking

    tempora F600 60.06L

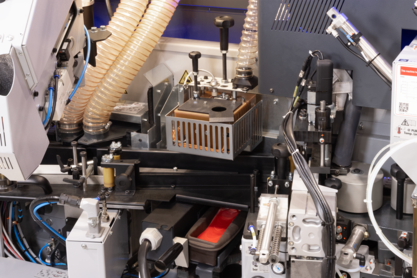

    The Teflon coated gluepot for PUR or EVA glue has a 1.5 kg capacity and as such around 375 metres of edge material can be applied to a 19 mm panel. The short warm-up time of only 10 minutes guarantees quick operational readiness. As an option, the scraper cleaning unit can be integrated into system which speeds up and facilitates the cleaning when changing between glue types.
    Format4® glueBox PUR edge banding without glue pot
    Does our revolutionary glueBox live up to its promise?
    edgebander tempora family
    The puReady nitrogen box makes you flexible in the use of PUR adhesives
