A perfect combination of 5 stand alone machines
Everything you need for perfect woodworking results in just two and a half square metres: The Felder CF 741 woodworking centre combines the advantages of five stand alone machines and brings high performance, precision and shortest changeover times into every workshop. Planing, moulding, cutting and drilling – a top quality workshop in one machine. With the Professional package the operating comfort is increased even further ensuring simple processing of larger workpieces.
Highlights:
- High quality 700 series aggregates guarantee reliable quality and precision
- Simple, syncronised opening of the solid planing tables
- Optimised planing fence design ensures the smallest possible space requirement
- 10 year guarantee: “X-Roll” sliding table for maximum load bearing
- Tried and tested Felder spindle quick change system: Felder MULTI adjustment system
- Optional: Height and angle adjustment of the saw and spindle accurate to a tenth of a millimetre as well as thicknessing height adjustment with the electronic “Power-Drive” control.
- Maintenance free tilting guide segment “Easy-Glide” with 6 year warrenty.
FELDER. Quality and precision in a nutshell
Since 1956, a guarantee for perfect results with excellent ease of use and reliability in regular professional use. Woodworkers are always enthusiastic about the individual and solid solutions for small and mid-sized businesses.
The most important highlights at a glance
Variants
ModelsCF 741 S professional
- Your benefits
CF 741 S professional
CF 741 S professional
- Planing width: 410 mm
- Cutting length: 2500–3200 mm
- Spindle fence for max. tooling diameter: 230 mm
- Quick-change system of the spindle, Standard
- Horizontal mortiser (Optional)
- Control system: Power-Drive (Optional)
CF 741 professional
CF 741 S professional
- Planing width: 410 mm
- Cutting length: 2050–2500 mm
- Spindle fence for max. tooling diameter: 230 mm
- Quick-change system of the spindle, Standard
- Horizontal mortiser (Optional)
- Control system: Power-Drive (Optional)
CF 741
CF 741 S professional
- Planing width: 410 mm
- Cutting length: 1300–2500 mm
- Spindle fence for max. tooling diameter: 230 mm
- Quick-change system of the spindle, Standard
- Horizontal mortiser (Optional)
- Control system: Power-Drive (Optional)
... Your decision for Felder, a risk-free decision
- The right machine for every budget
- Complete reliability in professional use
- Tailor made machine solutions
- High quality cast iron machine table and aggregates
- Innovative detail solutions derived from 60 years of experience – already included in the standard configuration
- First class manufacturing and finishing standards
- Intuitive application concepts
- Modern, distinct design
- Quality and precision from Austria
- Powerful and efficient
- Complete package: Comprehensive service support
Details
The planer fence may be tilted to any angle between 90° and 45°. End stops are placed at 90° and 45°.
The space saving planer guard is integrated into the machine chassis which stabilises the workpiece when planing and bevelling.
The chip removal can be adjusted continuously to up to 4 mm. The magnifying glass guarantees accurate reading of the scale.
Heavy chip loads are no problem for the chip extraction hood due to its efficient design and large dimension.

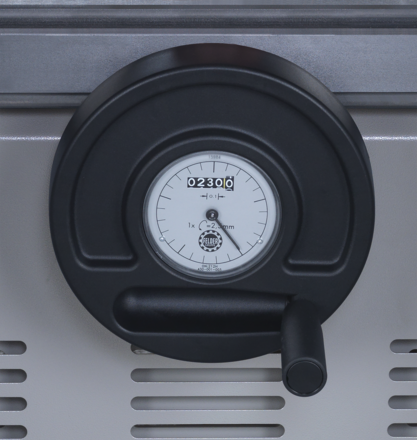

Thicknessing accuracy to one tenth of a millimeter with the use of the handwheel and its integrated digital display.
Max. Thicknessing height 230 mm.
The fully electrical “Power-Drive” thicknesser table control offers the most precise adjustment and repeat accuracy. With a twist of the knob, you can quickly adjust the thicknessing height, then fine-adjust using the button. An integrated LED-display displays the actual value.
Simple choice for the power feeder speeds of 6 m/min. and 12 m/min.
The solid cast iron cutterblock housing is built for heavy duty work.
The serrated steel infeed roller and the micro-serrated steel outfeed roller guarantee a perfect transport of the workpiece through the machine. Both steel rollers are large dimensioned and non-wearing.
If desired we can equip your AD 941 with a rubber infeed roller. This allows workpieces of varying thicknesses to be processed at the same time, equalling out any differences in thickness.
The combination of cutterblock, transport rollers and wood type is decisive for perfect planing resuts. The new Felder AD 941 can be individually configured and specified to meet your exact requirements.
Simple blade settings, carried out incredibly quick - accurate to a tenth of a millimetre, standard with FELDER! Resin free locking screws and the self-setting knives make it possible to change the blade in less than 2 minutes. Time consuming adjustments and purchasing of expensive setting gauges are a thing of the past. The advantages at a glance ...
- Quick and effortless knife change
- Self-setting blades for high precision when changing the blades
- No resin buildup on the clamping bolts.
- Quiet operation thanks to enclosed design
- Excellent durability of knife edges
Exclusive for planer/thicknessers from the Felder Group. The Silent-Power® spiral cutterblock reduces noise emissions by more than half when planing. The continuous pulling cut ensures tear-free results when planing all types of wood. With this revolutionary new development from Format4 you are obtaining all of the advantages of a spiral cutterblock at considerably lower operating, investment and adjustment costs. The advantages of the Silent-Power® cutterblock at a glance ...
- Extremely quiet, noise is reduced by half
- Usable blade life twenty times longer than standard blades
- Four highly precise cutting edges on each knife
- Optimised chip extraction and reduced chip volume
- Tear-free planing results
- Reduced power consumption when compared to similar systems
The horizontal mortiser is mounted on the planer side. An optional dowelling device can be added to increase the mortiser capability.
The fully electrical “Power-Drive” control offers exact adjustment and repeat accuracy. The saw blade height and the angle settings can be adjusted at the turn of a knob, the fine setting adjustments are carried out to tenth of a millimetre accuracy using a push button. Red LED digits display the current position in real time on the control panel.
The fence allows tooling of a maximum diameter of 230 mm to be used. The fine adjustment can be set between -5 to +25 mm. The extraction of the chips is done via the integrated extraction connection.
“230” spindle fence for max. tooling diameter 230 mm, MULTI adjustment system for spindle fence “230” enabling parallel alignment and quick setup
The safety bar guides are great for end-grain work (optional).
The Felder 700 Series spindle aggregate sets standards that are unparalleled.
115 mm useable spindle height above the table (140/160 mm)
Quick-change system of the moulder spindle
Change the speed simply from the front of the machine
Collet chuck spindle for router tools with a speed of 15,000 rpm
Electrical height adjustment with digital LED display
Electrical angle adjustment with digital LED display
4 operating speeds (3500, 6500, 8000, 10,000 rpm)
Rearward tilt 0° to 45°
Precise, double sided guide support
Dovetail guidance system of the height adjustment
Excellent vibration absorption from heavy cast iron unit
The patented tilt segment “Easy-Glide” fulfills the highest requirements in businesses and industries. A precise, guided, doublesided support, guarantees maximum load bearing and tolerance free tilting and is absolutely maintenance free. A special, highly durable synthetic material situated in the guide of the tilting segment ensures extremely smooth movement and long-lasting precision. The tilting guide system, a synthetic material tried and tested in aerospace and lock construction, works without the requirement of lubrication and is totally resistant to dust. With a 6 year factory guarantee this Felder component offers reliabilty for many years to come.
Advantages of the Felder spindle quick change system:
Quick, easy change between different types of spindles
Ability to use 30, 32, 35, 40, 50 mm and 1¼” diameter spindles
Use of the Felder high speed router spindle for router bits or high speed tools at 15,000 rpm.
Automatic repeatable setting for series production work
The large table opening allows for maximum operator safety. For large dimension tooling, as used for tenoning and panel raising, the cutterblock can be conveniently positioned below the table.
The dual extraction system from the spindle unit and fence ensures that the machine stays clean and dust free.
The continuously developed linear guiding system from Felder has been astounding woodworkers since 1990. The high quality format sliding table guiding technology “X-Roll” comes with a 10 year Felder guarantee and offers amazing operating smoothness and is completely maintenance free. The 'x' design of the position of the roller bearings ensures that they move smoothly along hardened guides.
For a convenient option we can equip your Felder 700 Series machine with start buttons for the main and scoring blades.
Large dimensioned and designed for maximum load bearing capacity, the aluminium format sliding table “hovers” on the “X-Roll”, a highly developed guiding technology. The X shape (“X-Roll”) design of the rollers distributes the load optimally on all sides. The linear surface of the steel rollers running on the hardened and ground guiding surface guarantees unbeatable precision and smoothness. “X-Roll” will guarantee you the quality and precision that you expect from your new tilting spindle moulder. Another reason to choose Felder: 10 year factory guarantee to underline the reliability of “X-Roll”.
The use of a power feeder ensures that standard work when moulding can be carried out cleanly and precisely
The Felder device for tilting the feeder away means the power feeder always remains on the machine and can be used at any time with no difficulties.
Similarly, the saw blade height and angle settings can be set to an accuracy of a tenth of a millimetre. For fine tuning there is also a push button and a clear LED display screen to show you the actual current value.
The FELDER saw unit “104” Manufactured entirely from cast iron, the new Felder “104” saw unit fulfils the highest demands of modern woodworking.
104 mm cutting height with a 315 mm saw blade diameter
Electronic height adjustment of the saw blade (“Power-Drive” K1)
Electrical height and angle adjustment of the saw unit with LED display (“Power-Drive” K2)
Precise height adjustment via precision linear guides
Optimal extraction with a completely enclosed saw aggregate
Large scale, double ball bearing saw arbour
The electronically balanced saw arbor with dual bearing seat system is powered via a Poly-V belt. This combination results in an almost perfect transmission of power to the saw blade.
For chip free cutting of laminated panels. The saw blade can be mechanically or electrically driven and can be set in both height and lateral position.
The Felder 700 Series saw unit is fully compatible with dado tooling. Thanks to removable flanges and table insert, the Felder designed, fully adjustable dado cutters can be used.
The rip fence is easy and smooth to adjust, with a single-handed clamping mechanism. The optional fine adjustment makes precise measurements possible. The rip scale is easy to read and perfectly integrated into the machine table.
OUTSTANDING! The patented double mitre gauge from Felder allows for mitre cuts on pieces of differing widths and at any angle. Really easy to use: simply type in the desired angle as well as the widths of your workpieces on the keyboard. Immediately, you will receive the settings and can set the electronic double mitre gauge accordingly.
The fence stop on the fence can be adjusted up to 1350 mm with the scale.
Regardless of the angles set, the length compensating vernier scale allows you to compensate for the workpiece length.
The bevelled mitre scale with accurate readout is visible from the operating area, enabling setting of the required crosscut value.
CF 741 S professional
The solid outrigger makes it possible to process large and heavy workpieces. High precision and operating smoothness is guaranteed by 8 bearing guide rollers situated in the outrigger telescopic arm.
You can optionally equip your Felder saw with a 1300 Felder outrigger or the 1500 premium version
Optional roller for the outrigger to facilitate the loading of workpieces
No reading errors due to scales and vernier. No time-wasting with arduous approximations of angle values. The advantage of the Felder degree index is that the stop is set and fixed without losing time or making reading errors. Highly precise index positions allow for the accurate production of polygons, e.g. 5.625º (32 sided), 11.25º (16 sided), 22.5º (8 sided). In addition, index positions at 15º, 20º, 25º, 30º, 35º, 40º and 45º can be used when working in slide to cut or push to cut mode. Every index position is equipped with a length compensator. The highly precise Felder degree index system is adjusted at the factory. Every index position also has individual fine adjustment. This cost effective index system integrates well into the machine design and will increase your productivity.
- For rip and formatting cuts of large panel material
- Floor guides are height adjustable, 4.5 m in length, consists of 3 sections
On request: the digital crosscut stop. For repeatable accuracy to 0.1 mm with large LED display.
CF 741 professional
The solid outrigger makes it possible to process large and heavy workpieces. High precision and operating smoothness is guaranteed by 8 bearing guide rollers situated in the outrigger telescopic arm.
You can optionally equip your Felder saw with a 1100 Felder outrigger or the 1300 professional version.
The telescopic crosscut fence with mounting system and ergonomically designed scale with magnifying lens on the crosscut stop guarantees precise settings and crosscuts up to 2600 mm. The crosscut fence can be positioned between 90°-45° and has one crosscut stop as standard. There is a fixed end stop position for 90°.
No reading errors due to scales and vernier. No time-wasting with arduous approximations of angle values. The advantage of the Felder degree index is that the stop is set and fixed without losing time or making reading errors. Highly precise index positions allow for the accurate production of polygons, e.g. 5.625º (32 sided), 11.25º (16 sided), 22.5º (8 sided). In addition, index positions at 15º, 20º, 25º, 30º, 35º, 40º and 45º can be used when working in slide to cut or push to cut mode. Every index position is equipped with a length compensator. The highly precise Felder degree index system is adjusted at the factory. Every index position also has individual fine adjustment. This cost effective index system integrates well into the machine design and will increase your productivity.
CF 741
Quickest ever conversion from planer to thicknesser by simultaneously lifting the spring-assisted planer tables
The spindle quick-change system will provide you with almost limitless possibilities of use. You can use spindles with pre-mounted tools for series production, or use spindles with a different diameter. The spindle can be changed in seconds. A particular highlight is the ability to mount a high speed router spindle with 15,000 rpm capability. For maximum stability and durability the Format-4 spindle has been designed with 3 high quality “precision type” bearings!
Aluminium table extension with P-coupling
“Single lever” clamping system: fast and simple assembly without tools
The crosscut fence 1100 mm for crosscuts between +45° and –45°. The fence can be attached to the sliding table without the use of tools. The end stop provides you with the exact 90° position. The bevelled mitre scale with accurate readout is visible from the operating area, enabling setting of the required crosscut value. The large crosscut fence stops are constructed in such a way that a small tongue on the stop fits perfectly into a groove on the fence. This keeps the stop firmly in place for both straight and
mitered cuts.
Technology Data
Electrical setup
CF 741 professional
CF 741
CF 741 S professional
001
3x 400 V motor voltage
S
S
S
002
3x 230 V motor voltage
W
W
W
003
1x 230 V, motor power 4.0 HP (3.0 kW)*
O
O
O
004
50 Hz
S
S
S
005
60 Hz
W
W
W
006
4.0 HP (3.0 kW)*
S
S
-
007
5.5 HP (4.0 kW)*
O
O
S
008
7.5 HP (5.5 kW)*
O
O
O
009
10.0 HP (7.30 kW) Power ratio S6/40%*
O
O
O
10
Star-delta start is necessary from 7.5 HP and 3x230V
O
O
O
11
Switch for forward and reverse run
S
S
S
12
Trigger switch for dust extractor start
O
O
O
14
3-phase CEE coupling for additional equipment with time-delayed connection (essential for the use of a power feeder)
O
O
O
Cutterblock
CF 741 professional
CF 741
CF 741 S professional
30
Surface planing width in mm
410
410
410
-
Total planer table length in mm
1650
1650
1650
-
Infeed planer table length in mm
800
800
800
-
Maximum depth of cut in mm
4
4
4
32
Surface planer fence 1485 mm
S
S
S
33
Surface planer fence anodised
S
O
S
34
Additional table for planer fence
S
S
S
36
Planer guard EURO “Standard”
S
S
S
37
Planer guard EURO “Comfort”
O
O
O
38
2-knife Felder-system cutterblock
S
S
-
39
4-knife Felder-system cutterblock
O
O
S
40
4-knife Standard-knife cutterblock
O
O
O
41
3-knife TERSA cutterblock
O
O
O
44
Silent-POWER spiral cutterblock
O
O
O
-
Number of knives - Silent-POWER spiral cutterblock
63
63
63
Thickness Planer and Feed Drive
CF 741 professional
CF 741
CF 741 S professional
50
Thickness planing width in mm
404
404
404
-
Minimum/maximum thicknessing height in mm
3-230
3-230
3-230
-
Min. workpiece length in mm
190
190
190
-
Maximum depth of cut in mm
4
4
4
51
Digital display for thicknessing height in mm
S
S
S
52
Digital display for thicknessing height in inch
O
O
O
53
Electrical height adjustment and digital display of the thicknessing table („Power-Drive“ D1)
O
O
O
56
2 speed synchronised feed drive 6+12 m/min
S
S
S
Saw and Scoring Unit
CF 741 professional
CF 741
CF 741 S professional
69
Sliding table saw with tilting saw blade (90°–45°), maximum cutting height 104 mm with a 315 mm saw blade, 4800 rpm
S
S
S
201
Electrical height and angle adjustment of the saw unit with LED display (#119)
O
O
O
71
Digital indicator on handwheel for saw tilt
O
O
O
82
Preparation for Dado tooling up to 19.5 mm in width
O
O
O
84
Micro adjustable rip fence
S
S
S
73
Link segement on saw-planer table for rip fence
O
O
O
74
Mechanical scoring unit, dia. 3⅞” (100 mm) with main saw blade 11¾” (300 mm)
O
O
O
23
1x 230 V electronically controlled scoring unit, 100 mm with a 300 mm main saw blade (#003)
O
O
O
75
Electronic scoring unit, dia. 100 mm with main saw blade 300 mm
O
O
O
80
Saw guard EURO II
S
S
S
Spindle Moulder Unit and Spindle Fence
CF 741 professional
CF 741
CF 741 S professional
109
Tilting spindle moulder (90°–45°), 3500/6500/8000/10,000 rpm
S
S
S
-
Table opening in mm
230
230
230
118
Electrical height adjustment of the moulding spindle with LED-display („Power-Drive“ F1) (#110)
O
O
O
119
Electrical height and angle adjustment of the spindle moulder with LED display (#201)
O
O
O
110
Scale for tilting spindle moulder on the hand wheel (!119)
O
O
O
109
Manual spindle tilt 90°–45°
S
S
S
103
Moulder spindle Ø 30 mm, usable height 115 mm
S
S
S
107
Moulder spindle Ø 32 mm, usable height 115 mm
O
O
O
106
Moulder spindle Ø 35 mm, usable height 115 mm
O
O
O
104
Moulder spindle Ø 50 mm, usable height 115 mm
O
O
O
105
Moulder spindle Ø 1¼”, usable height 115 mm
O
O
O
100
Moulder spindle Ø 30 mm, usable height 140 mm
O
O
O
101
Moulder spindle Ø 40 mm, usable height 160 mm
O
O
O
102
Moulder spindle Ø 50 mm, usable height 160 mm
O
O
O
108
High speed router spindle 15,000 rpm, instead of Ø 30 mm spindle
O
O
O
112
Spindle moulder fence 230 for max. tooling diameter 230 mm, fence plates 400 mm
S
S
S
123
EURO Spindle moulder guard
S
S
S
113
MULTI adjustment for spindle fence 230 (#112)
S
O
S
116
Aluminium spindle fence plates anodised
S
O
S
117
Spindle fence plates anodised with “safety bar guides” (#112)
O
O
O
125
Safety fence plates “Integral” 500 mm
O
O
O
115
Aluminium spindle fence plates
-
S
-
Sliding Tables
CF 741 professional
CF 741
CF 741 S professional
132
Dimension sliding table L, cutting length 2050 mm**
S
O
-
133
Dimension sliding table F, cutting length 2500 mm(98"), anodised** with edging shoe
O
O
S
136
Dimension sliding table anodised
S
O
S
139
On and off switch on the sliding table
O
O
O
131
Dimension sliding table M, cutting length 1300 mm**
-
S
-
141
Dimension sliding table, cutting length 1550 mm**
-
O
-
134
Dimension sliding table X, cutting length 2800 mm(110"), anodised** with edging shoe
-
-
O
135
Dimension sliding table XL, cutting length 3200 mm(126"), anodised** with edging shoe
-
-
O
Outrigger Tables and Crosscut Fences
CF 741 professional
CF 741
CF 741 S professional
159
1100 mm Outrigger table for 1300–2050 mm sliding tables
S
O
-
160
1300 mm Outrigger table for 1300–2500 mm sliding talbes
O
O
S
164
Crosscut fence 1100 mm(43") for all sliding tables
O
S
O
165
Telescopic extension for crosscut fence 1100 mm(43") to 2000 mm(78") (#164)
O
O
O
166
Crosscut fence 2600 mm for outrigger table (#159/160)
S
O
S
169
Crosscut fence 3200 mm for outrigger table, X-Roll system with 2 crosscut stops instead of crosscut fence 2600 mm (#166/168+159/160)
O
O
O
170
Precision mitre unit with pin locating system for outrigger table crosscut fence
O
O
O
173
Precision mitre guide with cutting length compensation for 1300/1500 outrigger
O
O
O
168
Crosscut fence 2600 mm for outrigger table, X-Roll system instead of crosscut fence 1100 mm (#159/160)
-
O
-
161
1500 mm Outrigger table for 2500–3700 mm sliding tables
-
-
W
171
Digital cross cut stop 1900 mm(74"), 1 digital fence stop, extendable to 3200 mm(126") for outrigger 1500
-
-
O
172
Outrigger digital cross cut stop 3200 mm(126"), 2 digital fence stops, for outrigger table 1500
-
-
O
Mortising Unit
CF 741 professional
CF 741
CF 741 S professional
191
Mortising chuck, clamping range 0–16 mm
O
O
O
190
Mortising table, heavy professional execution
O
O
O
194
Transport unit for mortising table heavy (#190)
O
O
O
General
CF 741 professional
CF 741
CF 741 S professional
-
Working height in mm
890
890
890
-
Min. transport width in mm
1500
1500
1500
13
Preparation for min. transport width 800 mm
O
O
O
-
Extractor connection port diameter in mm on Planer/Thicknesser
120
120
120
-
Extractor connection port diameter in mm on saw guard
120/50
120/50
120/50
-
Extractor connection port diameter in mm on spindle moulder fence/below table extraction
120/80
120/80
120/80
-
Weight kg (with standard configuration)
1030
960
1120
Important Accessories
CF 741 professional
CF 741
CF 741 S professional
210
Rolling carriage (410-160)
O
O
O
212
Tilting bracket for power feed
O
O
O
211
Coupling system for table extension (Thicknessing table)
O
O
O
223
IPPC
O
O
O
Transport
CF 741 professional
CF 741
CF 741 S professional
221
Preparation for container
O
O
O
S ... Standard equipment
O ... Option
W ... Choice
- ... not available
Felder ® CF 741 S - Combination Machine | Felder Group
DIY Hot tub of wood, made with FELDER® woodworking machines
Customer service & maintenance
Specially trained service personnel are always available to provide specialised on-site service for you. If the matter is urgent you can call our hotline centre for straightforward immediate help. Contact our consultants or report your request conveniently online around the clock.
Do you have any questions?
We are happy to advise you online, over the phone or on-site at one of our more than 270 sales and service centres worldwide.
Showrooms
FELDER GROUP UK Ltd. Details
FELDER GROUP UK Ltd.
Unit 2 Sovereign Business Park, Joplin Court, Crown Hill
MK8 0JP MILTON KEYNES
Tel.: 01908 635000
Business Hours Monday to Friday 09.00 to 17.00
Unit 2 Sovereign Business Park, Joplin Court, Crown Hill
MK8 0JP MILTON KEYNES
Tel.: 01908 635000
Business Hours Monday to Friday 09.00 to 17.00
Felder Group Scotland Details
Felder Group Scotland
Unit 4 Lindsay Square, Deans Industrial Estate
EH54 8RL Livingston
Tel.: 01506 342250
Business Hours please call for an appointment
Unit 4 Lindsay Square, Deans Industrial Estate
EH54 8RL Livingston
Tel.: 01506 342250
Business Hours please call for an appointment
